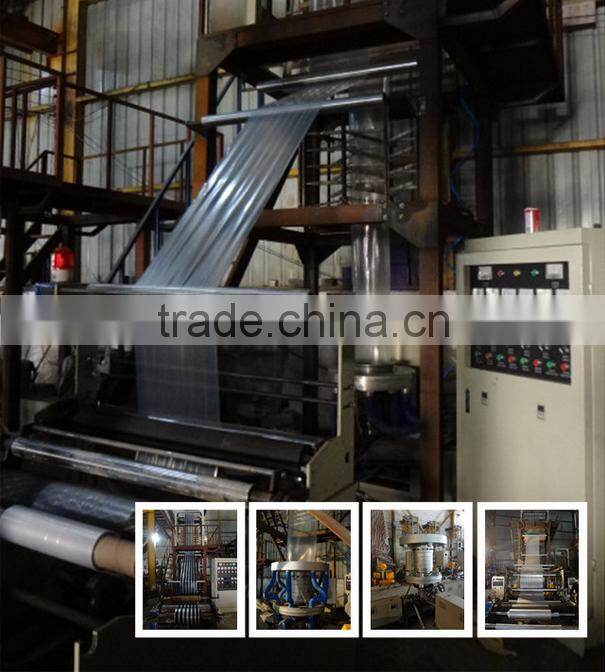

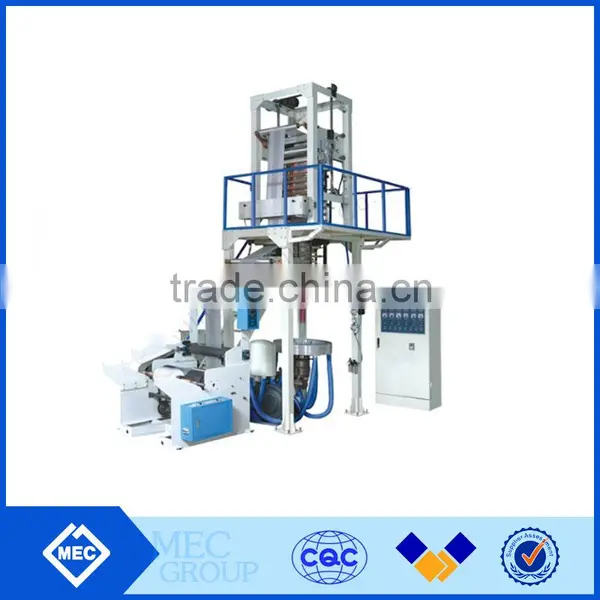

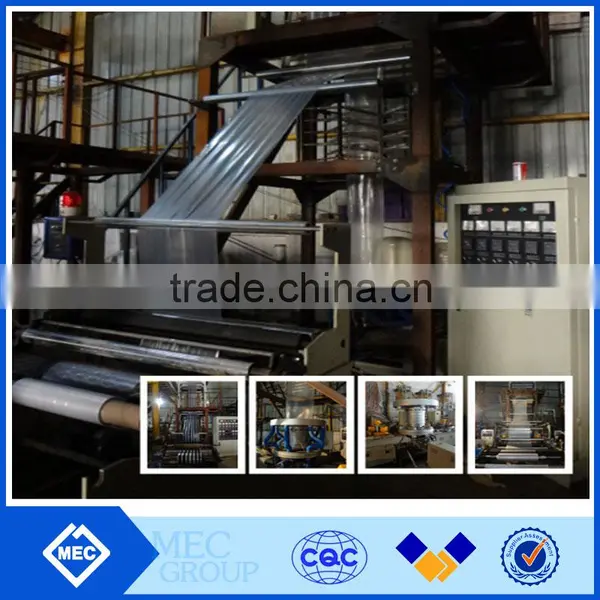

HD/LDPE High Speed Film Blowing Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Liaoning, China
Brand Name:
MEC
Payment & Shipping
Payment Methods:
Port of Shipment:
China(Mainland)
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Liaoning, China
Brand Name
MEC
Model Number
H45/FM600
Product Description
Performance and Characteristics:
Degradable Film Special Equipment has been widely used for producing supermarket bag, garbage bag,agricultural mulch film.If the draw ratio of film is increased and the mould head is changed,it can be used for blowing 75cm high-low pressure film.
Moreover Purchase Fitting:
1)Auto Loader
2)Embossing Roller
3)Film Surface Treater
4)Die Rotary Device
5)Air Compressor
6)Mechanics Screen Changer
| MODEL | ZD-H45/FM600 | ZD-H50/FM800 | ZD-H55/FM1000 | ZD-H65/FM1500 |
| SUITABLE MATERIAL | HDPE/LDPE | |||
| FILM WIDTH(mm) | 300-600 | 300-800 | 400-1000 | 600-1500 |
| FILM THICKNESS(mm) | 0.009-0.05 | 0.009-0.05 | 0.009-0.05 | 0.009-0.05 |
| EXTRUSION OUTPUT (HD) | 55Kg/hr | 50Kg/hr | 70Kg/hr | 90Kg/hr |
| SCREW DIAMETER(mm) | Φ45 | Φ50 | Φ55 | Φ65 |
| SCREW L/D LENGTH | 28:1 | |||
| SCREW MATERIAL | SACM-645/38CRMOALA | |||
| CYLINDER MATERIAL | SACM-645/38CRMOALA | |||
| CYLINDER COOLING | 370w×2 | 370w×2 | 550w×2 | 550w×3 |
| DRIVING MOTOR(Kw) | 11 | 15 | 18.5 | 30 |
| TEMPERATURE CONTROL | 3 | 3 | 3 | 4 |
| AVERAGE POWER-CONSUME(Kw) | 18 | 26 | 31 | 45 |
| TYPE OF DIE | ||||
| DIE SIZE(mm) | Φ60/80 | Φ80/100 | Φ100/150 | Φ120/250 |
| TEMPERATURE CONTROL | 3 | |||
| AIR RING | 1 | |||
| AIR BLOWER (Kw) | 2.2 | 2.2 | 3 | 4 |
| CENTER STEADY STICK | 2 | |||
| TAKE-UPUNIT | ||||
| PINCH ROLLER (DIA.WIDTH)mm | Φ165×650 | Φ165×850 | Φ165×1050 | Φ165×1500 |
| EFFECTIVE WIDTH | 600 | 800 | 1000 | 1200 |
| HEIGHT ADJUSTABLE TYPE | 700mm | |||
| TAKE-UP SPEED (m/min) | 10-100 | 10-100 | 10-100 | 10-80 |
| TAKE-UP MOTOR(Kw) | 0.75 | 1.5 | 1.5 | 1.5 |
| Winding Unit | ||||
| Type | Surface Friction Type | |||
| Winding Motor(n.m) | 5 | 10 | 10 | 16 |
| Windign Speed(m/min) | 10-100 | 10-100 | 10-100 | 10-80 |
| Cover Dimension(m) | 5.0×2.2 × 4.5 | 5.0 × 2.2 × 4.5 | 5.0 × 2.5 × 5.0 | 6.0 × 2.8 × 5.5 |
