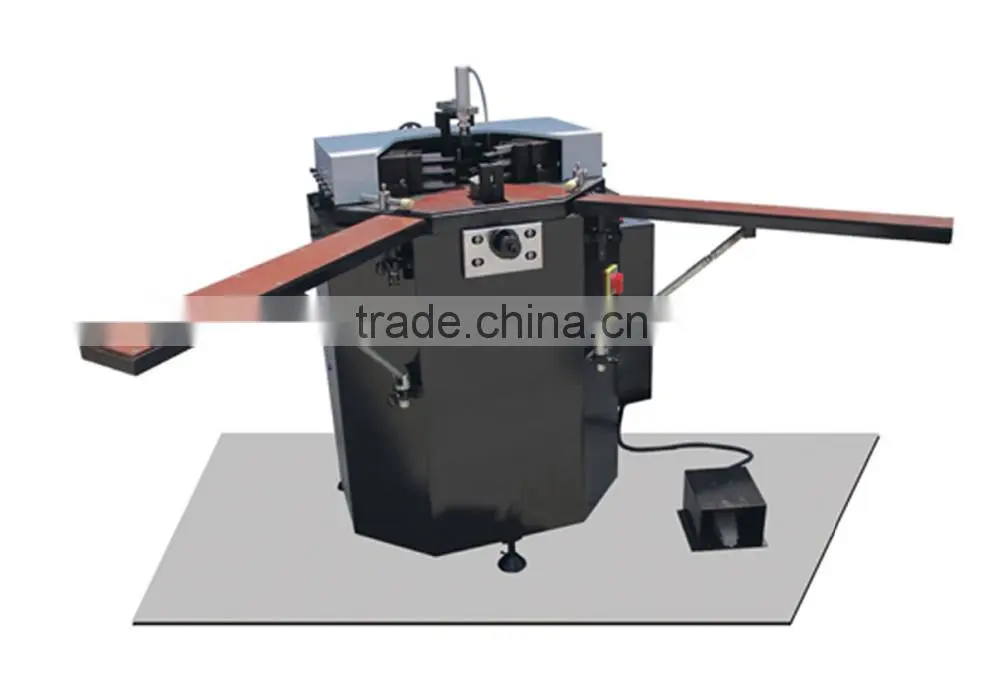

The features of aluminum corner joint machine for aluminum door and window are listed as follows:
1.The power of corner knife is controlled by hydraulic system to make machine stable and reliable.
2.It achieves two punches’ synchronal feeding and avoids distortion in the process to make the connection of windows’ corners firmer that two punches are driven by a hydraulic cylinder through a mechanical linkage.
3.It is easy to operate and can make fine errors in the process of production, so that it can produce doors and windows with good quality.
4.Adjusting the distance of the front and back corner knife by screw thread connection make the process more convenient.
|
Main Specifications | |
| Model | LZJ03-130 |
| Input Power | 1.5kw |
| Power Supply | 380V/50Hz |
| Air Pressure | 0.6~0.8Mpa |
| Rated Pressure | 15MPa |
| Profile Processing Width | 90mm |
| Capability of Oil Box | 20L |
| The Adjustable Range of Location Block | 54mm |
| Corner Combining Casing Movement Journey | 85mm |
| Overall Dimension | 1100*1100*1300 |
| Weight | 400kgs |
Pre-sale service
1. We can make specialized solutions according to our customers requirement.
2. According the solutions, we will make a reasonable investment budget for our clients, which will be not only save money, but also have good efficiency.
3. We will provide the mounting dimension of the machinery base, design of equipment layout, workshop ventilation and human resources allocation and budgeting.
In-sale service
1. Detailed design of lay-out that is the position of the procession.
2. Technological information of provided products.
3. Schedule about design, manufacturing and installation.
4. Woring & Producing progression.
After-sale service
1. The whole machine has 12 months warranty except the consumable parts.
2. Our engineers can be availabe to service aboard so that our clients can be helped with installation and maintenance.
3. Before delivery, our engineers will test every machine to make sure that our machines can work with the best performance.
The basic configuration of doors and windows making machines:
1. Aluminum Cutting Saw
2. End Milling Machine
3. Presser for Aluminum Profile
4. Corner Cutting Saws
5. Corner Combining Machine
1. I just want to start this business, what should I do?
We will make plans for you according to your budget request and the products range you want to get. If I can be of any help, please be free to contact me, I will provide the best solutions for you.
2. If I don’t know how to operate or encounter technical questions, can I easily get support in spares and technical?
Please make a vedeo of the problems and email to us ,our engineers will be able to work out a video to show you how to settle the problems. In the worst case, our engineers can fly over to help as long as ou can undertake some reasonable charges arouse. For spare parts, it is depends on how heavy to decide to send by air or by sea, for the parts under warranty, we will not charge for you.
Our company has the quality management system certification of ISO9001:2008 and GB/T19001-2008.
If you are interested in our aluminum corner joint machine for aluminum door and window, please be free to contact me at any time, I am looking forward to getting your email.
