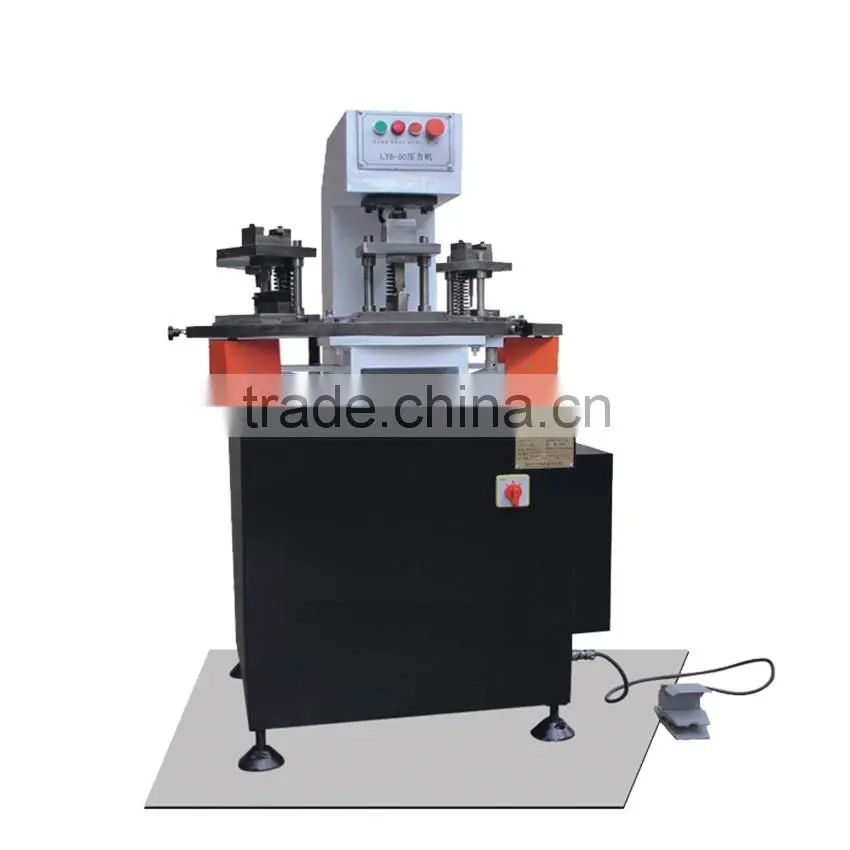

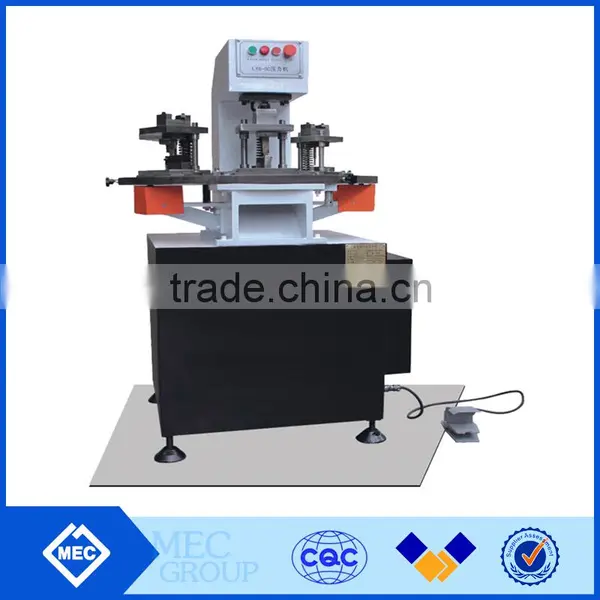

This Aluminum window and door punching machine is used for the production of various shaped holes and notches of aluminum doors’ and windows’; the converted worktable can be equipped with six sets of moulds at the same time so that it can fit several processes conducted simultaneously; huge hydraulic power makes the stamping of complex holes more convenient.
|
Main Specifications | |
| Model | LY6-50 |
| Input Power | 2*2.2kw |
| Power Supply | 380V/50Hz |
| Air Pressure | 16Mpa |
| Press Nominal Pressure |
50KN |
| Capability of Oil Tank | 20L |
| Punch Travel |
30mm |
| Shut Height |
185mm |
| Size of Mould |
250*200*215mm |
| Overall Dimension | 900*950*1420mm |
| Weight | 500kgs |
Pre-sale service
1. We can make specialized solutions according to our customers requirement.
2. According the solutions, we will make a reasonable investment budget for our clients, which will be not only save money, but also have good efficiency.
3. We will provide the mounting dimension of the machinery base, design of equipment layout, workshop ventilation and human resources allocation and budgeting.
In-sale service
1. Detailed design of lay-out that is the position of the procession.
2. Technological information of provided products.
3. Schedule about design, manufacturing and installation.
4. Woring & Producing progression.
After-sale service
1. The whole machine has 12 months warranty except the consumable parts.
2. Our engineers can be availabe to service aboard so that our clients can be helped with installation and maintenance.
3. Before delivery, our engineers will test every machine to make sure that our machines can work with the best performance.
The basic configuration of aluminum door and window machine:
1. Aluminum Cutting Saw
2. End Milling Machine
3. Presser for Aluminum Profile
4. Corner Cutting Saws
5. Corner Combining Machine
1. I just want to start this business, what should I do?
We will make plans for you according to your budget request and the products range you want to get. If I can be of any help, please be free to contact me, I will provide the best solutions for you.
2. If I don’t know how to operate or encounter technical questions, can I easily get support in spares and technical?
Please make a vedeo of the problems and email to us ,our engineers will be able to work out a video to show you how to settle the problems. In the worst case, our engineers can fly over to help as long as ou can undertake some reasonable charges arouse. For spare parts, it is depends on how heavy to decide to send by air or by sea, for the parts under warranty, we will not charge for you.
Our company has the quality management system certification of ISO9001:2008 and GB/T19001-2008.
If you are interested in our aluminum window and door punching machine/pressing machine , please be free to contact me at any time, I am looking forward to getting your email.
