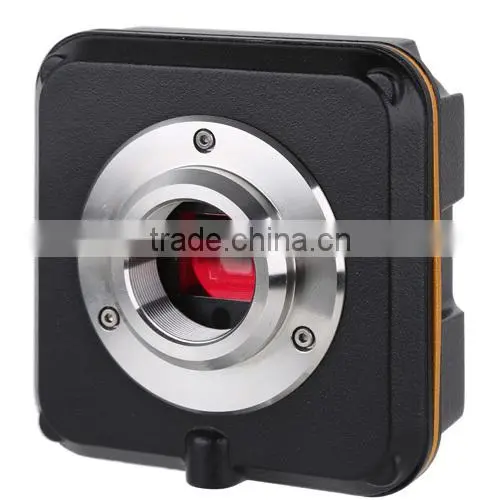

L3CMOS C-mount USB3.0 CMOS Micrscope Camera

L3CMOS C-mount USB3.0 CMOS Micrscope Camera thumbnail-1
L3CMOS C-mount USB3.0 CMOS Micrscope Camera photo-1
Negotiable MOQ: 20 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
ToupCam Camera
Model Number:
L3CMOS Series camera
Contact Supplier Request Quote Chat Now
Hangzhou ToupTek Photonics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name ToupCam Camera
Model Number L3CMOS Series camera

L3CMOS Series C-mount USB3.0 CMOS Camera

      ToupTek L3CMOS camera is luxurious USB3.0 CMOS camera with frame buffers and it adopts ultra-high performance CMOS sensor as the image-picking device, and USB3.0 is used as the data transfer interface.

      L3CMOS comes with advanced video & image processing application ToupView; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#, DirectShow, Twain Control API;

     The L3CMOS can be widely used in bright field light environment and microscope image capture and analysis.



Order Code Sensor Sensor Size(mm) Pixel(μm) FPS/Resolution Binning Exposure

L3CMOS14000KPA
LP114000A

MT9F002(C)

1/2.3" (6.451x4.603)

1.4x1.4

6.2@4096x3286
20.8@2048x1644
53.3@1024x822

1x1,2x2,4x4

0.4ms~2000ms

L3CMOS10000KPA
TP110000A

MT9J003(C)

1/2.3" (6.44x4.616)

1.67x1.67

7.2@3584x2746
24.5@1792x1372

1x1,2x2,4x4

0.38ms~2000ms

L3CMOS08500KPB
LP108500B

Special(C)

1/2.5" (5.557x4.255)

1.67x1.67

8.3@3328x2548
26.2@1664x1272

1x1,2x2,4x4

0.1ms~2000ms

L3CMOS05100KPA
LP105100A

MT9P006(C)

1/2.5" (5.7x4.28)

2.2x2.2

14.2@2560x1922
38.3@1280x960
101.2@640x480

1x1,2x2,4x4

0.05ms~2000ms

L3CMOS03100KPA
LP103100A

AR0330(C)

1/3" (4.505x3.38)

2.2x2.2

27.3@2048x1534
53.3@1024x770

1x1,2x2

0.1ms~2000ms

L3CMOS01200KPB
LP101200B

 AR0130(C) 1/3"(4.8x3.6) 3.75x3.75 45@1280x960
55@640x480		 1x1,2x2 0.1ms~20000ms



OTHER HARDWARE CONFIGURATION

Spectral Range

380-650nm (with IR-filter)

White Balance

ROI White Balance/ Manual Temp-Tint Adjustment

Color Rendering Technique

Ultra Fine Color Engine

Capture/Control API

Native C/C++, C#, Directshow, Twain, Labview

Recording System

Still Picture and Movie

Cooling System*

Natural
OPERATING ENVIRONMENT

Operating Temperature

-10℃~ 50℃

Storage Temperature

-20℃~ 60℃

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port
SOFTWARE ENVIRONMENT

Operating System

Support Microsoft  Windows  XP / Vista / 7 /8 (32 & 64 bit)
OS X (Mac OS X), Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory: 2GB or More

USB port: USB3.0 High-speed Port

Display: 17" or Larger

CD-ROM

L3CMOS Series USB3.0 CMOS Camera Dimension

         Installation drawings(Click to enlarge). The L3CMOS series USB3.0 CMOS camera body, made from tough, aluminium alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
L3CMOS C-mount USB3.0 CMOS Micrscope Camera
Dimension for L3CMOS Series USB3.0 CMOS Camera

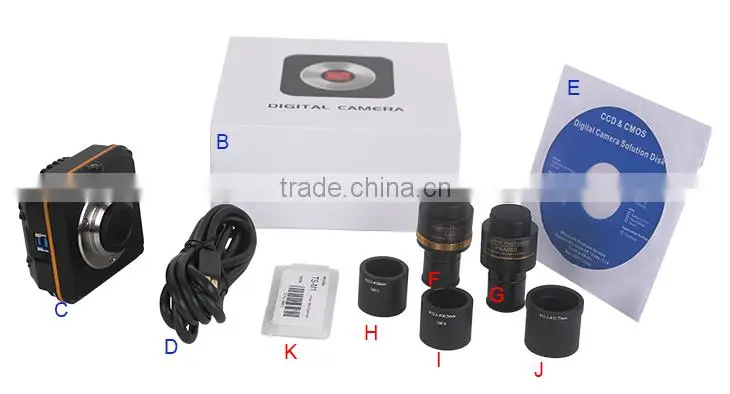

Packing Information of L3CMOS Series USB3.0 CMOS Camera

L3CMOS C-mount USB3.0 CMOS Micrscope Camera
L3CMOS Series USB3.0 CMOS  Camera Packing Information
Standard Camera Packing List

A

Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton, 0.045m3), not shown in the photo

B

Gift box L:16.4cm W:16.4cm H:7.5cm (0.8~1.0Kg/ box)

C

L3CMOS series USB3.0 C-mount CMOS camera

D

High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m

E

CD (Driver & utilities software, Ø12cm)
Optional Accessory

F

Adjustable
lens
adapter

C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

108001/AMA037
108002/AMA050
108003/AMA075

C-mount to Dia.31.75mm eyepiece tube
(Please choose 1 of them for your telescope)

108008/ATA037
108009/ATA050
108010/ATA075

G

Fixed
lens adaptor

C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

108005/FMA037
108006/FMA050
108007/FMA075

C-mount to Dia.31.75mm eyepiece tube
(Please choose 1 of them for your telescope)

108011/FTA037
108012/FTA050
108013/FTA075
Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera) , ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application;

H

108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube

I

108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube
J
 108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube

K

Calibration Lit

 106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

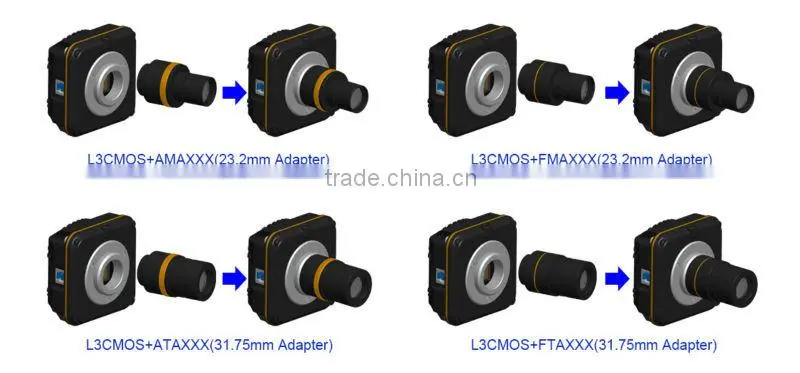

Extension of L3CMOS Series USB3.0 CMOS Camera with Microscope or Telescope Adaptor

Application


C-mount Camera

L3CMOS C-mount USB3.0 CMOS Micrscope Camera

Machine vision; Medical imaging;
Semiconductor equipment; Test instruments;
Document scanners; 2D barcode readers;
Web camera and security video;
Microscope imaging;

Microscope Camera

 L3CMOS C-mount USB3.0 CMOS Micrscope Camera

Telescope Camera
