U3CMOS Series C-mount USB3.0 CMOS Camera
|
ToupTek U3CMOS camera is an ultra-high performance USB3.0 CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device and USB3.0 is used as the data transfer interface. U3CMOS camera hardware resolutions range from 3.0M to 14M and comes with the Integrated zinc aluminum alloy compact housing. U3CMOS comes with advanced video & image processing application ToupView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API; The U3CMOS can be widely used in brightfield light environment and microscope image capture and anaysis with higher frame rate. |
| Order Code | Sensor & Size(mm) | Pixel(μm) |
G Sensitivity Dynamic Range SN Ratio |
FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| U3CMOS18000KPA TP118000A |
18M/AR1820(C) 1/2.3"(6.14x4.605) |
1.25x1.25 |
0.62 V/lux-sec |
5.6@4912x3684" |
1x1,2x2,4x4 |
0.1ms~2000ms |
U3CMOS14000KPA |
14M/MT9F002(C) 1/2.3"(6.451x4.603) |
1.4x1.4 |
0.724v/lux-sec |
6.2@4096x3286 |
1x1,2x2,4x4 |
0.4ms~2000ms |
U3CMOS10000KPA |
10M/MT9J003(C) 1/2.3"(6.44x4.616) |
1.67x1.67 |
0.31v/lux-sec |
7.2@3584x2746 |
1x1,2x2,4x4 |
0.38ms~2000ms |
U3CMOS08500KPB |
8.5M/Special(C) 1/2.5"(5.557x4.255) |
1.67x1.67 |
0.31v/lux-sec |
8.3@3328x2548 |
1x1,2x2,4x4 |
0.1ms~2000ms |
U3CMOS05100KPA |
5.1M/MT9P006(C) 1/2.5"(5.7x4.28) |
2.2x2.2 |
1.76v/lux-sec |
14.2@2560x1922 |
1x1,2x2,4x4 |
0.05ms~2000ms |
U3CMOS03100KPA |
3.1M/AR0330(C)1/2" (4.505x3.38) |
2.2x2.2 |
1.9v/lux-sec |
27.3@2048x1534 |
1x1,2x2 |
0.1ms~2000ms |
| OTHER HARDWARE CONFIGURATION | |
|---|---|
Spectral Range |
380-650nm (with IR-filter) |
White Balance |
ROI White Balance/ Manual Temp-Tint Adjustment |
Color Rendering Technique |
Ultra Fine Color Engine |
Capture/Control API |
Native C/C++, C#, Directshow, Twain, Labview |
Recording System |
Still Picture and Movie |
Cooling System* |
Natural |
| OPERATING ENVIRONMENT | |
Operating Temperature |
-10℃~ 50℃ |
Storage Temperature |
-20℃~ 60℃ |
Operating Humidity |
30~80%RH |
Storage Humidity |
10~60%RH |
Power Supply |
DC 5V over PC USB Port |
| SOFTWARE ENVIRONMENT | |
Operating System |
Support Microsoft Windows XP / Vista / 7 /8 /10 (32 & 64 bit) |
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory: 2GB or More | |
USB port: USB2.0 High-speed Port | |
Display: 17" or Larger | |
CD-ROM | |

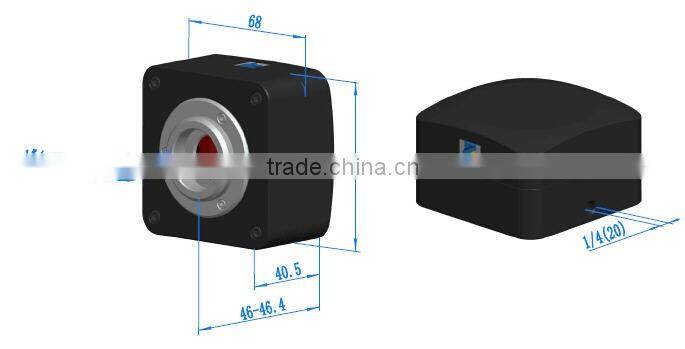

Dmension of U3CMOS Series Camera
Packing Information for U3CMOS Camera
| Standard Camera Packing List | ||||
|---|---|---|---|---|
A |
Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo |
|||
B |
Gift box L:15cm W:15cm H:10cm (0.67~0.70Kg/ box) |
|||
C |
U3CMOS series USB3.0 C-mount CMOS camera |
|||
D |
High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m |
|||
E |
CD (Driver & utilities software, Ø12cm) |
|||
| Optional Accessory | ||||

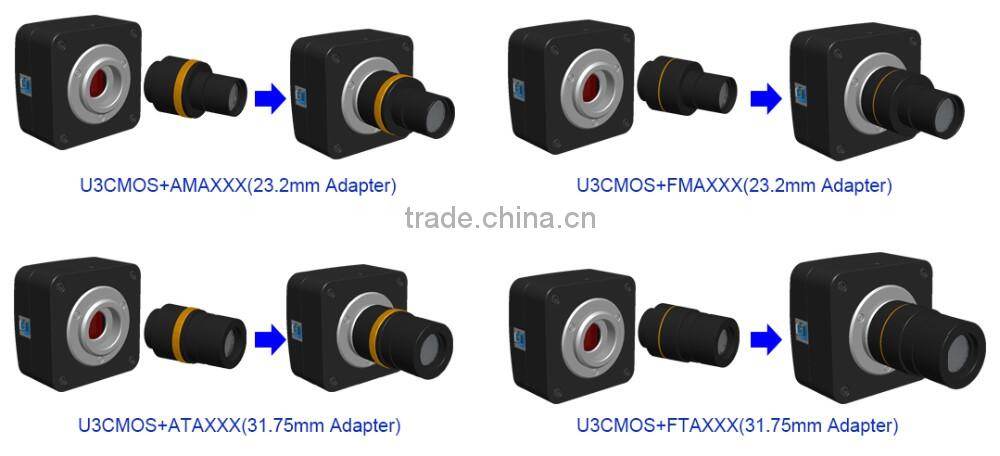

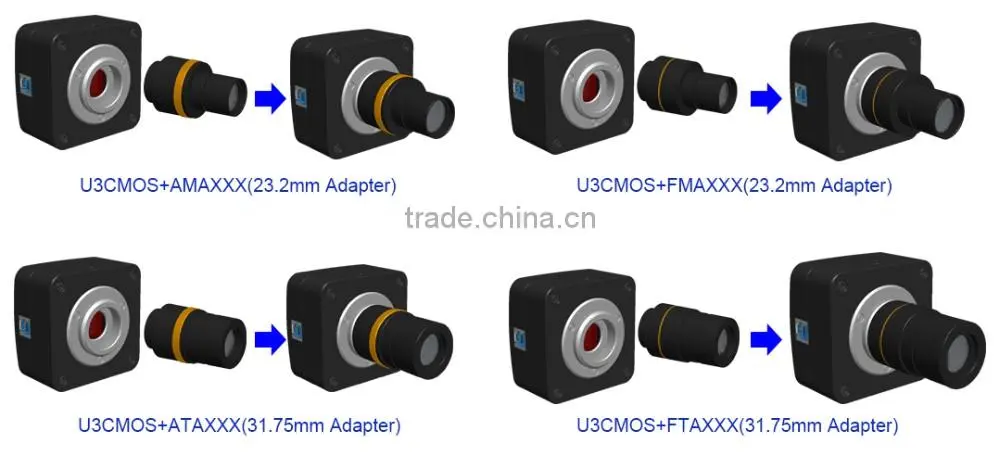

F |
Adjustable |
C-mount to Dia.23.2mm eyepiece tube |
108001/AMA037 |
|
C-mount to Dia.31.75mm eyepiece tube |
108008/ATA037 |
|||
G |
Fixed |
C-mount to Dia.23.2mm eyepiece tube |
108005/FMA037 |
|
C-Mount to Dia.31.75mm Eyepiece Tube |
108011/FTA037 |
|||
| Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera) , ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; | ||||
H |
108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube |
|||
I |
108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube |
|||
J |
108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube | |||
K |
Calibration Lit |
106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) |
||
Extension of U3CMOS Series Camera with Microscope or Astronomy Adapter
| Extension | Picture | |
|---|---|---|
C-mount Camera |
|
Machine vision; Medical imaging; |
Microscope Camera |
|
|
Astronomy | ||
