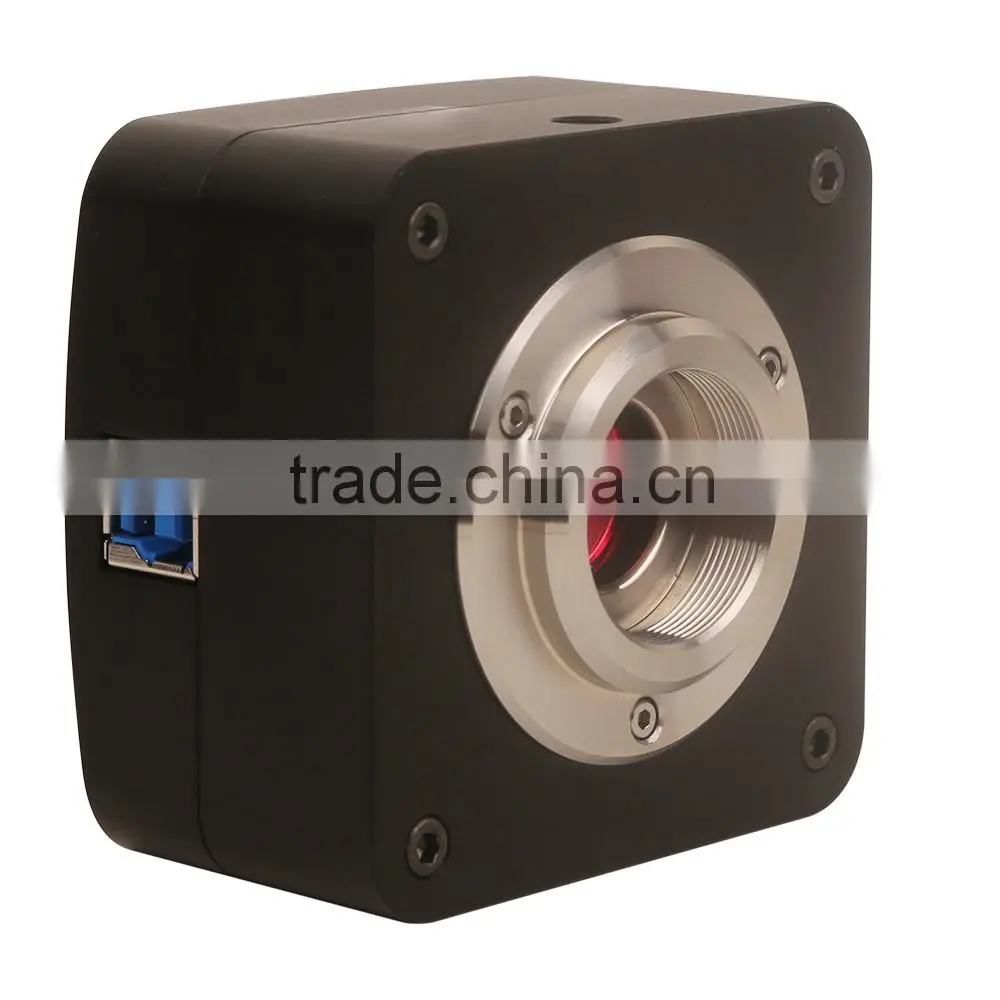

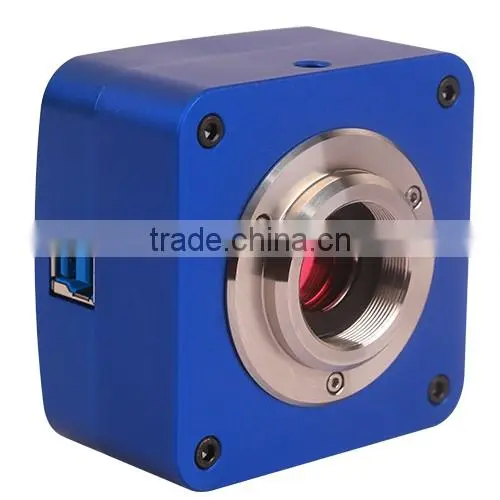

E3CMOS Series C-mount USB3.0 CMOS Camera

        E3CMOS camera adopt SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the data transfer interface.
        E3CMOS camera’s resolutions range from 2.3M to 12M and come with the integrated CNC aluminum alloy compact housing.
        E3CMOS camera comes with advanced video & image processing application ToupView; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#, DirectShow, Twain Control API;
        E3CMOS camera use the latest Sony Exmor sensor which have the highest sensitivity and lowest noise with the help of 2 CDS(correlated double sampling) procedure. This feature guarantee that the E3CMOS camera is perfect for fluorescence microscope application, astronomy application and other dark field application, as well as the bright field application.

        E3CMOS camera can be used to replace the traditional CCD camera to some extent since its unique features, including high sensitivity, low noise, and group shutter (only some sensor has group shutter). Thanks to USB3.0, the frame rate is fast and 8bit, 12/14bit data transfer can be available and switchable.



Order Code Sensor & Size(mm) Pixel(μm) G Sensitivity
Dark Signal 		FPS/Resolution Binning Exposure
E3CMOS12000KPA
EP11200A		 12M/IMX226(C)

1/1.7"(7.40x5.55)

1.85x1.85

280mv with 1/30s
0.1mv with 1/30s

Q3/coming soon

1x1,2x2

 0.1ms~2000ms

E3CMOS06300PA
EP106300A

6.3M/IMX178(C)

1/1.8"(7.37x4.92)

2.4x2.4

425mv with 1/30s
0.15mv with 1/30s

15@3072x2048
26@1536x1024

1x1,2x2

0.244ms~2000ms

E3CMOS03100KPA
EP103100A

3.1M/IMX036(C)

1/2.8"(5.12x3.84)

2.5x2.5

200mv with 1/30s
0.5mv with 1/30s

28@2048x1536
28@1024x768

1x1,2x2

0.244ms~2000ms

E3CMOS02300KPA
EP102300A

2.3M/IMX185(C)

1/1.9"(7.20x4.5)

3.75x3.75

1120mv with 1/30s
0.5mv with 1/30s

45@1920x1200
90@960x600

1x1,2x2

0.244ms~2000ms



OTHER HARDWARE CONFIGURATION

Spectral Range

380-650nm (with IR-filter)

White Balance

ROI White Balance/ Manual Temp-Tint Adjustment

Color Rendering Technique

Ultra Fine Color Engine

Capture/Control API

Native C/C++, C#, Directshow, Twain, Labview

Recording System

Still Picture and Movie

Cooling System*

Natural
OPERATING ENVIRONMENT

Operating Temperature

-10℃~ 50℃

Storage Temperature

-20℃~ 60℃

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port
SOFTWARE ENVIRONMENT

Operating System

Support Microsoft  Windows  XP / Vista / 7 /8 (32 & 64 bit)
OS X (Mac OS X), Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory: 2GB or More

USB port: USB2.0 High-speed Port

Display: 17" or Larger

CD-ROM

 Dimension of E3CMOS Series Camera

Installation drawings(Click to enlarge). The E3CMOS body, made from CNC alumnium alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
E3CMOS Series C-mount USB3.0 CMOS Camera

Drawing for E3CMOSm Series Camera



Packing Information for E3CMOS Series Camera

E3CMOS Series C-mount USB3.0 CMOS Camera

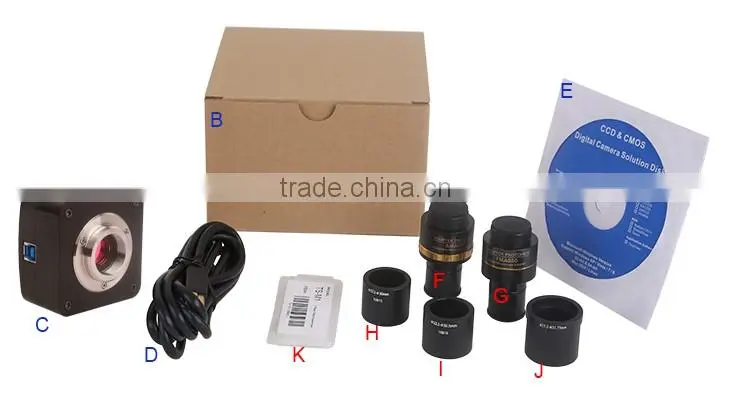

Standard Camera Packing List

A

Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo

B

Gift box L:15cm W:15cm H:10cm (0.58~0.60Kg/ box)

C

E3CMOS series camera

D

High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m

E

CD (Driver & utilities software, Ø12cm)
Optional Accessory

F

Adjustable
lens
adapter

C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

108001/AMA037
108002/AMA050
108003/AMA075

C-mount to Dia.31.75mm eyepiece tube
(Please choose 1 of them for your telescope)

108008/ATA037
108009/ATA050
108010/ATA075

G

Fixed
lens adaptor

C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

108005/FMA037
108006/FMA050
108007/FMA075

C-Mount to Dia.31.75mm Eyepiece Tube
(Please choose 1 of them for your telescope)

108011/FTA037
108012/FTA050
108013/FTA075
Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera) , ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application;

H

108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube

I

108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube
J
 108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube

K

Calibration Lit

 106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

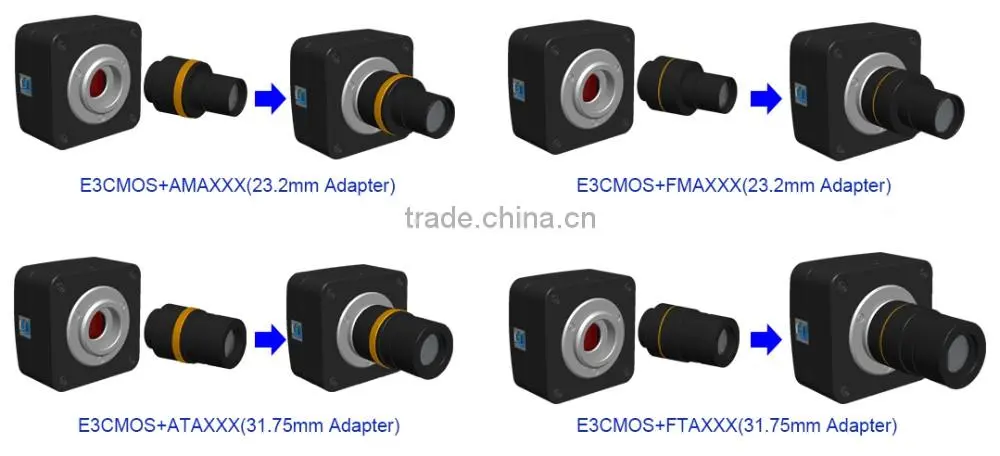

Extension of E3CMOS Series Camera with Microscope or Astronomy Adaptor

Extension Picture

C-mount Camera

E3CMOS Series C-mount USB3.0 CMOS Camera

Machine vision; Medical imaging;
Semiconductor equipment; Test instruments;
Document scanners; 2D barcode readers;
Web camera and security video;
Microscope imaging;

Microscope Camera

 E3CMOS Series C-mount USB3.0 CMOS Camera

Astronomy Camera:
