Home > Instruments & Meters > Optical Lens & Instrument > Microscope > WCAM Series C-mount WIFI Camera

WCAM Series C-mount WIFI Camera

Name: WCAM Series C-mount WIFI Camera
Brand: ToupCam Camera
SKU: 100661623
Availability: InStock

WCAM Series C-mount WIFI Camera thumbnail-1

WCAM Series C-mount WIFI Camera thumbnail-2

Negotiable MOQ: 20 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

ToupCam Camera

Model Number:

WCAM Series C-mount WIFI Camera

Contact Supplier Request Quote Chat Now

Hangzhou ToupTek Photonics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name ToupCam Camera

Model Number WCAM Series C-mount WIFI Camera

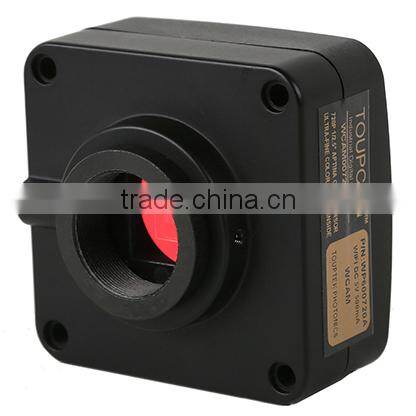

WCAM Series WIFI CMOS Camera

ToupTek WCAM is WIFI camera and it adopts ultra-high performance CMOS sensor as the image-picking device. WIFI is used as the data transfer interface.

When the WCAM camera is attached to the eyepiece of a microscope and started, it will and generates a WiFi signal for sending high-resolution images from a microscope to WiFi-enabled devices such as smartphones, tablets, and computers with iOS, Android, OS X, Linux and Windows operating systems, streaming images to up to six devices simultaneously.

The camera includes ToupView images software for quantifying, measuring, and annotating images and for using with an interactive white board. It also works with the free, downloadable Toupviewt app for viewing, capturing, and editing images.

C-Mount camera has 25.4 mm or 1 inch diameter with 32 threads per inch;
Scientific research grade camera with Aptina CMOS sensor;
Sends H.264 encodec high-resolution images from a microscope to WiFi-enabled smartphones, computers, and tablets with iOS, Android, and Windows operating systems;
Streams images to several devices simultaneously;
Integrated zinc aluminum alloy housing;
Ultra-FineTM color engine with perfect color reproduction capability;
With advanced video & image processing application ToupView(only support simple video viewing capturing for IOS/ android system);
Custom programmable with SDK provided(Windows/Linux/OS);

Order Code	Sensor & Size(mm)	Pixel(μm)	G Sensitivity Dynamic Range SN Ratio	FPS/Resolution	Binning	Exposure
WCAM1080PA WP601080A	IMX222(C) 1/2.2"(7.6x5.8)	2.8x2.8	510mV with 1/30s 0.15mv with 1/30s	25@1920x1080	2x2	0.059ms~1941ms
WCAM0720PA WP600720A	MT9P001(C) 1/2.5"(5.70x4.28)	2.2x2.2	1.0 V/lux-sec 61dB 43dB	30@1280x720	2x2	0.21ms~200ms
WCAM0720PB WP600720B	MT9P001(C) 1/2.5"(5.70x4.28)	2.2x2.2	1.0 V/lux-sec 61dB 43dB	10@1280x720	1x1	Auto
WCAM0300KPA WP600300KA	MT9V011(C) 1/4"(3.58x2.69)	5.6x5.6	1.9V/lux-sec 60dB 45dB	25@640x480	1x1	Auto

OTHER HARDWARE CONFIGURATION
Spectral Range	380-650nm (with IR-filter)
White Balance	White Balance /Manual Temp Tint Adjustment
Color Rendering Technique	Ultra Fine Color Engine(Embeded on Board)
Capture/Control API	Native C/C++, C# for Windows Operating System
Recording System	Still Picture and Movie
Cooling System*	Natural
OPERATING ENVIRONMENT
Operating Temperature	-10℃~ 50℃
Storage Temperature	-20℃~ 60℃
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	USB Charger or Over PC USB Port
SOFTWARE ENVIRONMENT
Operating System	Support Microsoft Windows XP / Vista / 7 /8 (32 & 64 bit) IOS IPAD or IPhone, Android PAD of Phone
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory: 2GB or More
	WIFI Adaptor with DHCP Enabled
	Display: 17" or Larger
	Ability to Play 0.35M MJPEG Format Video Smoothly
	CD-ROM

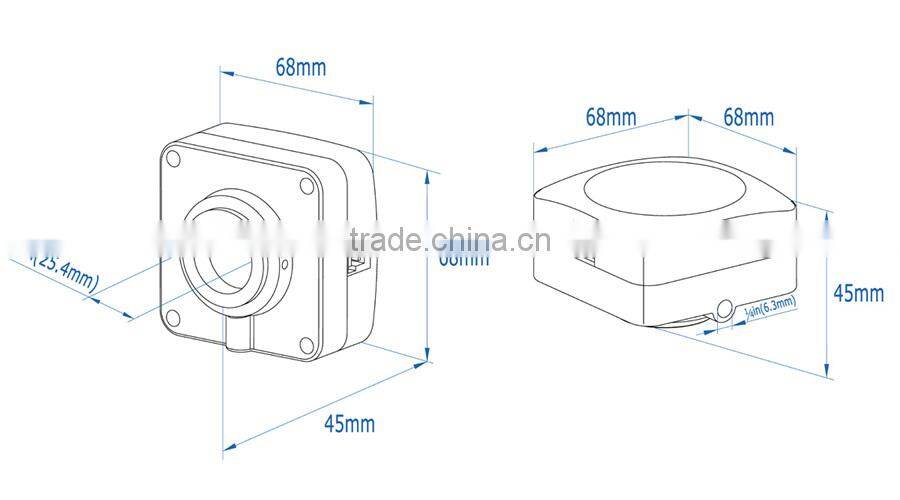

Dimension of WCAM Series Camera

Installation drawings(Click to enlarge). The WCAM body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

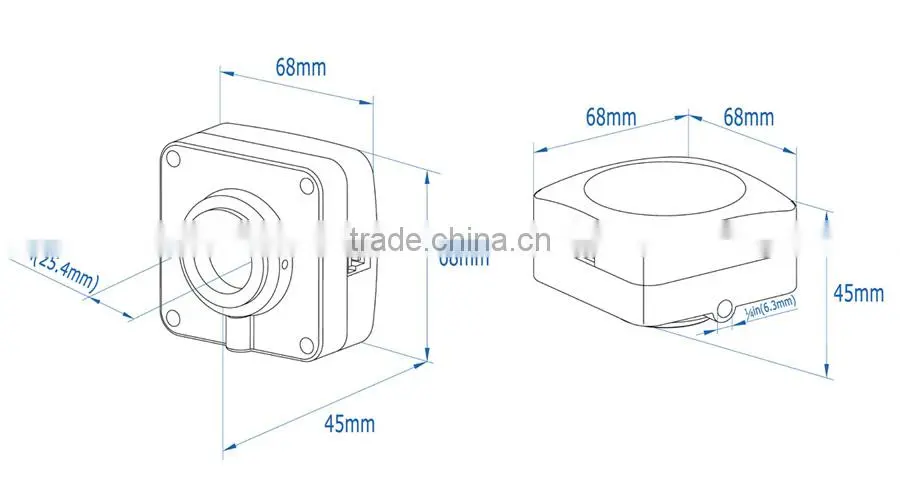

Dimension of WCAM Camera

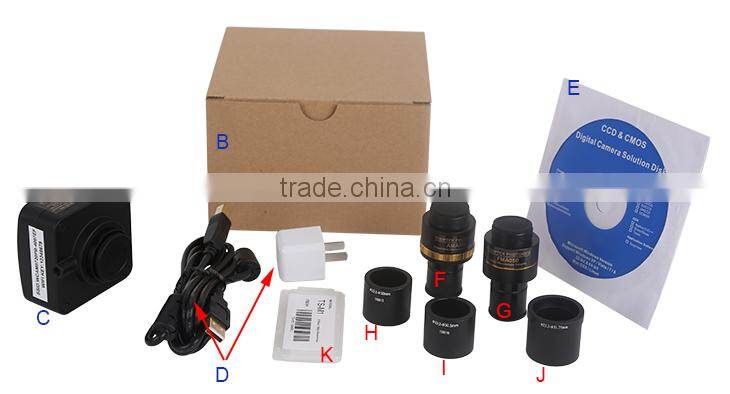

Packing Information of WCAM Series Camera

Standard Camera Packing List
A	Carton L:52cm W:32cm H:33cm (20pcs, 11.4~14Kg/ carton, 0.045m3), not shown in the photo
B	Gift box L:15cm W:15cm H:10cm (0.8~1.0Kg/ box)
C	WCAM series USB2.0 C-mount CMOS camera
D	High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m(for PC power only) or with USB charger
E	CD (Driver & utilities software, Ø12cm)
Optional Accessory
F	Adjustable lens adapter	C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope)	108001/AMA037 108002/AMA050 108003/AMA075
F	Adjustable lens adapter	C-mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope)	108008/ATA037 108009/ATA050 108010/ATA075
G	Fixed lens adaptor	C-mount to Dia.23.2mm eyepiece Tube (Please choose 1 of them for your microscope)	108005/FMA037 108006/FMA050 108007/FMA075
	Fixed lens adaptor	C-mount to Dia.31.75mm eyepiece Tube (Please choose 1 of them for your telescope)	108011/FTA037 108012/FTA050 108013/FTA075
	Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application;
H	108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube
I	108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube
J	108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube
K	Calibration Lit	106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

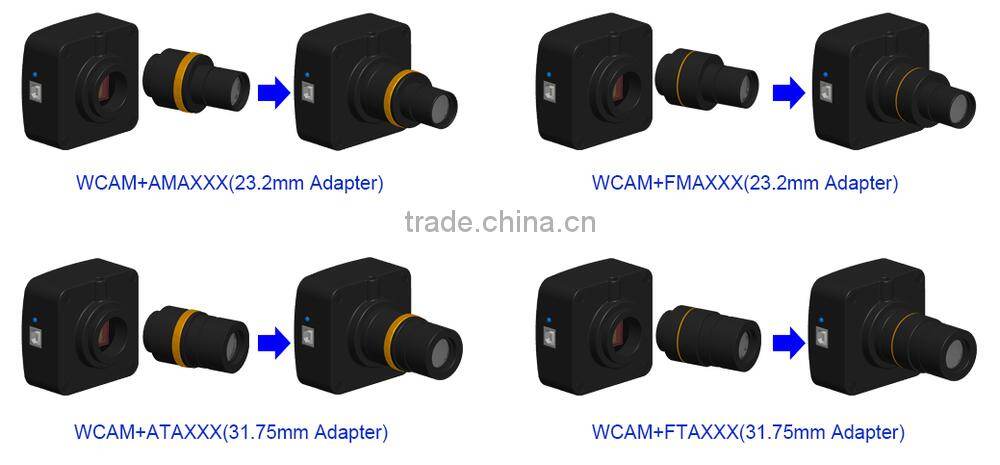

Extension of WCAM Series Camera with Microscope or Astronomy Adaptor

Application	Picture
C-mount Camera		Machine vision; Medical imaging; Semiconductor equipment; Test instruments; Document scanners; 2D barcode readers; Web camera and security video; Microscope imaging;

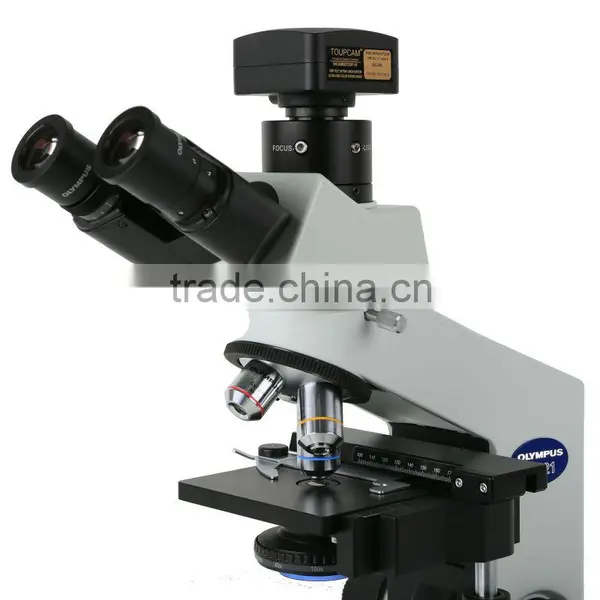

Microscope Camera
Astronomy Camera
