SCCCD Series C-mount USB2.0 CCD Camera(TE-Cooled USB2.0 CCD Camera )
|
SCCCD camera adopts semiconductor cooling peltier chip technique to keep Sony Exview HAD or HAD CCD sensor (The image-picking device) at low temperature. This will greatly increase the signal to noise ratio and decrease the image noise. Besides, integrated heat pipe-heat sink technique is used to transfer the heat to the camera housing fins. No fan is needed to keep the camera from vibration. USB2.0 is used as the data transfer interface. SCCCD comes with advanced video & image processing application ToupView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#, DirectShow, Twain Control API; The SCCCD can be widely used in low light environment and microscope fluorescence image capture and anaysis. |
| Order Code | Sensor | Sensor Size(mm) | Pixel(μm) | FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
SCCCD05200KPA |
5.2MP/ICX655AQ(C) |
2/3"(9.93x8.70) |
3.45x3.45 |
4.3@2448x2050 |
1x1 |
0.22ms~60s |
SCCCD01400KPA |
1.4MP/ICX285AQ(C) |
2/3"(10.2x8.3) |
6.45x6.45 |
15@1360x1024 |
1x1 |
0.12ms~240s |
SCCCD01400KPB |
1.4MP/ICX205AK(C) |
1/2"(7.60x6.20) |
4.65x4.65 |
15@1360x1024 |
1x1 |
0.12ms~240s |
SCCCD01400KMA |
1.4MP/ICX285AL(M) |
2/3"(10.2x8.3) |
6.45x6.45 |
15@1360x1024 |
1x1 |
0.12ms~240s |
SCCCD01400KMB |
1.4MP/ICX205AL(M) |
1/2"(7.60x6.20) |
4.65x4.65 |
15@1360x1024 |
1x1 |
0.12ms~240s |
| OTHER HARDWARE CONFIGURATION | |
|---|---|
Spectral Range |
380-650nm (with IR-filter) |
White Balance |
ROI White Balance/ Manual Temp-Tint Adjustment |
Color Rendering Technique |
Ultra Fine Color Engine |
Capture/Control API |
Native C/C++, C#, Directshow, Twain, Labview |
Recording System |
Still Picture and Movie |
Cooling System* |
TE-Cooled CCD - 20 °C below Ambient Temperature |
| OPERATING ENVIRONMENT | |
Operating Temperature |
-10℃~ 50℃ |
Storage Temperature |
-20℃~ 60℃ |
Operating Humidity |
30~80%RH |
Storage Humidity |
10~60%RH |
Power Supply |
DC 5V over PC USB Port |
| SOFTWARE ENVIRONMENT | |
Operating System |
Support Microsoft Windows XP / Vista / 7 /8 (32 & 64 bit) |
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory: 2GB or More | |
USB port: USB2.0 High-speed Port | |
Display: 17" or Larger | |
CD-ROM | |
Advanced Software ToupView(Please Click ToupView to Check the Detail )
- Offers stitching, EDF, color composite, image stacking, image segmentation, video recording and measurement functions
- Conducts measurements for lengths, angles, arcs, areas and etc.
- Gives your computer screens the same field of view as your microscope's eyepiece
- Saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
- Edit and process microscopy images in a manner similar to PhotoShop
- Live video and still image capture can be set in different resolutions simultaneously

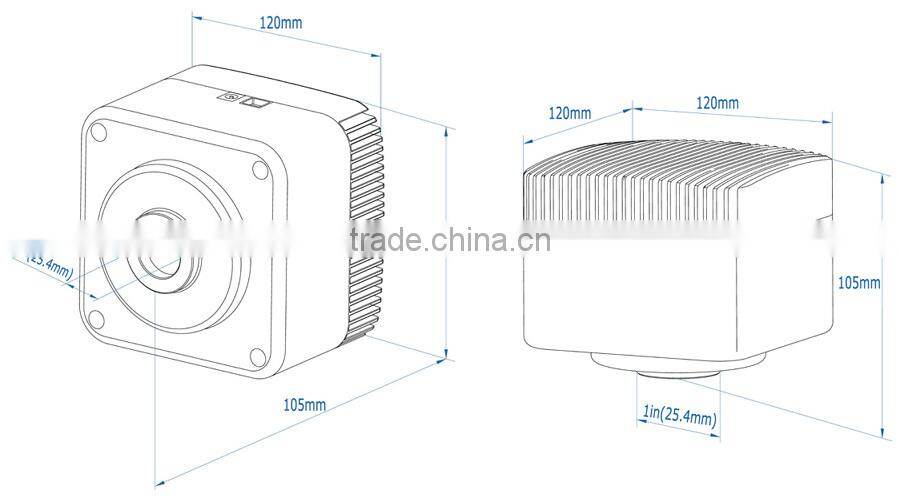

Dimension of SCCCD Series Camera
| The SCCCD camera body, made from tough, alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor and block the IR light. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions. |
|
| Dimension of SCCCD Series Camera |
Packing Information for SCCCD Series Camera

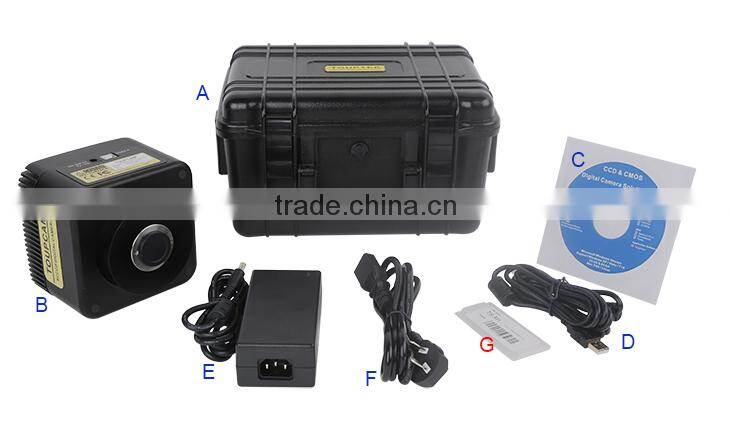

Packing List
| Standard Package | |
|---|---|
| A | 3-A safety equipment case: L:28cm W:23cm H:15cm (1pcs, 3.7Kg/ box); carton size:L:28.2cm W:25.5cm H:16.7cm |
| B | SCCCD series camera(C-mount) |
| C | CD (Driver & utilities software, Ø12cm) |
| D | High-Speed USB2.0 A male to B male gold-plated connectors cable /2.0m |
| E | Power adaptor: input: AC 100~240V 50Hz/60Hz, output: DC 5V 4.5A |
| F | Power cord |
| Optional Accessories | |
| G | Calibration kit: TS-M1(X=0.01mm/100Div.);TS-M2(X,Y=0.01mm/100Div.); TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) |
