UHCCD Series C-mount USB2.0 CCD Camera
|
ToupTek UHCCD is an ultra-high performance HAD CCD camera. The camera adopts Sony Super HAD CCD sensor as the image-picking device; The Super HAD CCD is a version of Sony's high performance CCD HAD (Hole-Accumulation Diode) sensor with sharply improved sensitivity by the incorporation of a new semiconductor technology developed by Sony Corporation. USB2.0 is used as the data transfer interface. UHCCD comes with advanced video & image processing application ToupView; Providing Windows/Linux/ OSX multiple platform SDK; Native C/C++, C#, DirectShow, Twain Control API; The UHCCD can be widely used in brightfield light environment and microscope image capture and anaysis. |
| Order Code | Sensor | Sensor Size(mm) | Pixel(μm) | FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
UHCCD05200KPA |
ICX655AQ(C) |
2/3"(9.93x8.70) |
3.45x3.45 |
4.3@2448x2050 |
1x1 |
0.22ms~60s |
UHCCD05100KPA |
ICX452AQ(C) |
1/1.8"(8.23x6.68) |
2.775x2.775 |
4@2592x1944 |
1x1,2x2 |
0.212ms~77ms |
UHCCD05000KPA |
ICX282AQ(C) |
2/3" (9.74x7.96) |
3.4x3.4 |
4.5@2560x1920 |
1x1,2x2 |
0.203ms~60ms |
UHCCD03100KPB |
ICX252AQ(C) |
1/1.8"(8.10x6.64) |
3.45x3.45 |
6@2048x1536 |
1x1,2x2 |
0.178ms~77ms |
UHCCD02000KPA |
ICX274AQ(C) |
1/1.8" (8.5x6.8) |
4.40x4.40 |
10@1600x1200 |
1x1 |
0.135ms~60s |
UHCCD01400KPA |
ICX205AK(C) |
1/2"(7.60x6.20) |
4.65x4.65 |
8@1360x1024 |
1x1 |
0.227ms~60s |
UHCCD01400KPB |
ICX205AK(C) |
1/2" (7.60x6.20) |
4.65x4.65 |
15@1360x1024 |
1x1 |
0.127ms~60s |
UHCCD00800KPA |
ICX204AK(C) |
1/3" (5.80x4.92) |
4.65x4.65 |
16@1024x768 |
1x1 |
0.16ms~60s |
| OTHER HARDWARE CONFIGURATION | |
|---|---|
Spectral Range |
380-650nm (with IR-filter) |
White Balance |
ROI White Balance/ Manual Temp-Tint Adjustment |
Color Rendering Technique |
Ultra Fine Color Engine |
Capture/Control API |
Native C/C++, C#, Directshow, Twain, Labview |
Recording System |
Still Picture and Movie |
Cooling System* |
Natural |
| OPERATING ENVIRONMENT | |
Operating Temperature |
-10℃~ 50℃ |
Storage Temperature |
-20℃~ 60℃ |
Operating Humidity |
30~80%RH |
Storage Humidity |
10~60%RH |
Power Supply |
DC 5V over PC USB Port |
| SOFTWARE ENVIRONMENT | |
Operating System |
Support Microsoft Windows XP / Vista / 7 /8 (32 & 64 bit) |
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory: 2GB or More | |
USB port: USB2.0 High-speed Port | |
Display: 17" or Larger | |
CD-ROM | |
Dimention of UHCCD Series Camera
| Installation drawings(Click to enlarge). The UHCCD Series USB2.0 CCD Camerabody, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions. |
|
|
| Dimension for UHCCD Series Camera |
Packing Information of UHCCD Series Camera
|
|
| Packing Information of UHCCD Series Camera |
| Standard Camera Packing List | ||||
|---|---|---|---|---|
A |
Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton, 0.045m3), not shown in the photo |
|||
B |
Gift box L:15cm W:15cm H:10cm (0.8~1.0Kg/ box) |
|||
C |
UHCCD series USB2.0 C-mount camera |
|||
D |
High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m |
|||
E |
CD (Driver & utilities software, Ø12cm) |
|||

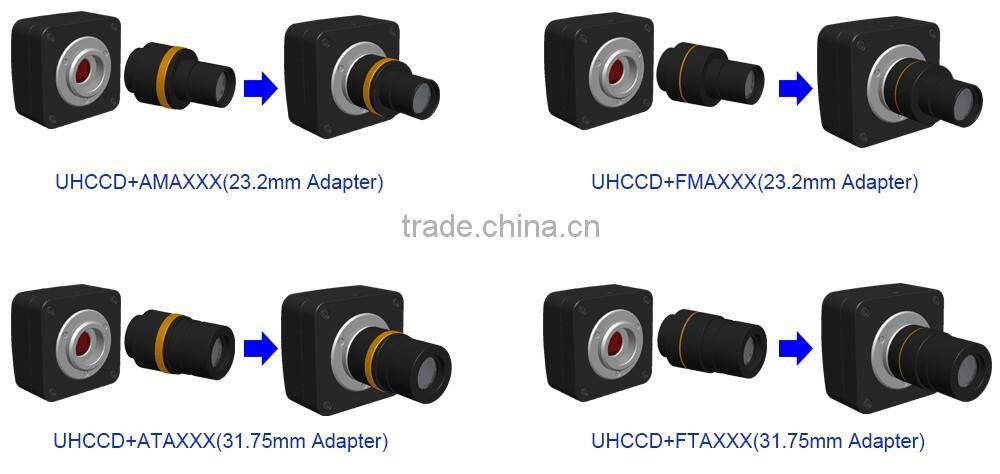

| Optional Accessory | ||||
F |
Adjustable |
C-mount to Dia.23.2mm eyepiece tube |
108001/AMA037 |
|
C-mount to Dia.31.75mm eyepiece tube |
108008/ATA037 |
|||
G |
Fixed |
C-mount to Dia.23.2mm eyepiece tube |
108005/FMA037 |
|
C-mount to Dia.31.75mm eyepiece tube |
108011/FTA037 |
|||
| Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera) , ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; | ||||
H |
108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube |
|||
I |
108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube |
|||
J |
108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube | |||
K |
Calibration Lit |
106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) |
||
Extension of UHCCD Series USB2.0 CCD Camera with Microscope or Telescope Adaptor
Application |
Picture |
|
|---|---|---|
C-mount Camera |
|
Machine vision; Medical imaging; |
Microscope Camera |
|
|
Telescope Camera | ||
