Help CenterHigh Current Terminal Blocks
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SCED
Model Number:
TR60-01-FaM0-N7
Payment & Shipping
Payment Methods:
Port of Shipment:
Yan Tian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
21.80 mm Pitch High Current Terminal Block High Voltage BarrierNegotiableMOQ: 100 Pieces -
High Current Terminal BlocksNegotiableMOQ: 100 Pieces
-
High Current Terminal BlocksNegotiableMOQ: 100 Pieces
-
Heavy Duty Connectors High Current Terminal BlocksNegotiableMOQ: 100 Pieces
-
High Current Terminal BlocksNegotiableMOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
SCED
Model Number
TR60-01-FaM0-N7

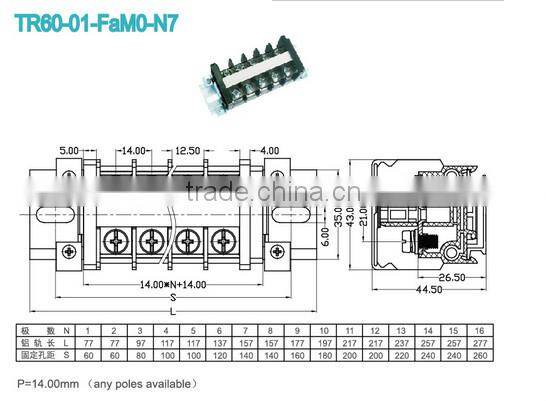

Parameter and Drawing Specifications:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
600 / 60 |
600 / 60 |
|
Wire Range AWG |
4-20 |
4-20 |
|
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
800 /60 |
1000 / 60 |
1000 / 60 |
Rated Surge Voltage KV |
8 |
8 |
8 |
Rated Connecting Capacity mm2 |
14 |
||
Material |
|
||
Insulation Material / Inflammability Class |
PC / UL94, V-0 |
||
Conduction Board/ Plating |
Brass /Nickel Plated |
||
Screw / Plating |
Steel / Zinc Plated |
||
Other Data |
|
||
Stripping Length mm |
12-15 |
||
Screw Torque mm |
M5 / 14-18 |
||
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
