Home > Products > High Current Terminal Blocks > Heavy duty connectors High Current Terminal Blocks
Heavy duty connectors High Current Terminal Blocks
- 1000000 Piece / Pieces per Month
- Yan Tian
- Custom-fabricated battery bus bars electrically inter-connect a range of battery cells
- OEM ODM focused rigid copper busbar for yacht
- Ballast-to-luminaire disconnects, Push-In Type
- Push Wire Cable Connector Terminal Block For LED Light
- Compact Splicing Connector For LED Light
- Electrical Splitter Universal Cable Connector For LED Light
Product Details
Place of Origin: | Guangdong, China | Brand Name: | SCED | Model Number: | TR175-01-FaM0 |
Number of Contacts: | 1 - 10 | Conductor Size: | Other, >30 AWG | Type: | Plug-in |
Product Description

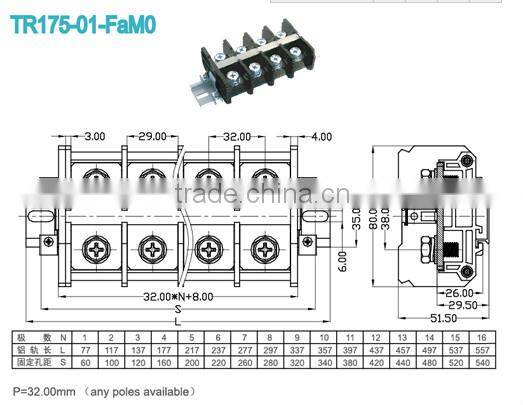

Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 600 / 175 | 600 / 175 | |
Wire Range AWG | 3/0-20 | 3/0-20 | |
IEC Technical Data |
| ||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 800 /175 | 1000 / 175 | 1000 / 175 |
Rated Surge Voltage KV | 8 | 8 | 8 |
Rated Connecting Capacity mm2 | 80 | ||
Material |
| ||
Insulation Material / Inflammability Class | PC / UL94, V-0 | ||
Conduction Board/ Plating | Brass /Nickel Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data |
| ||
Stripping Length mm | 14-18 | ||
Screw Torque mm | M8 / 31-40 |
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
