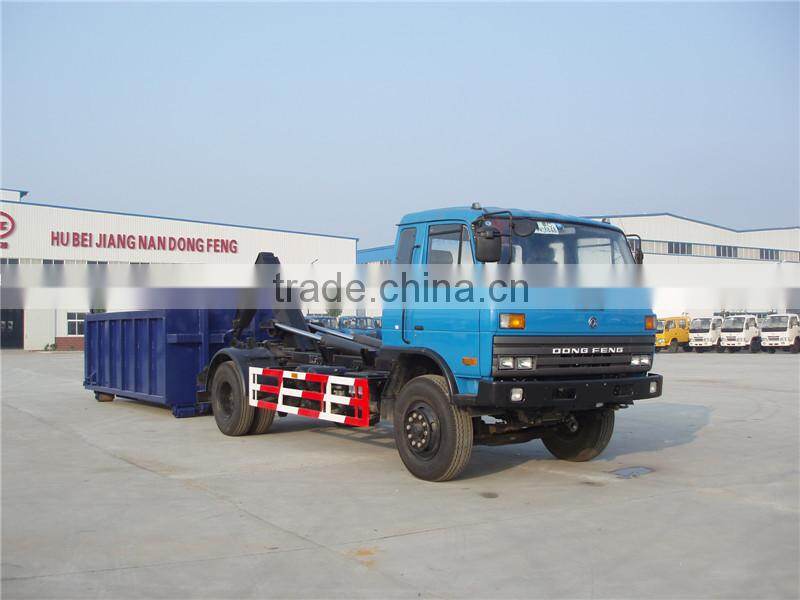

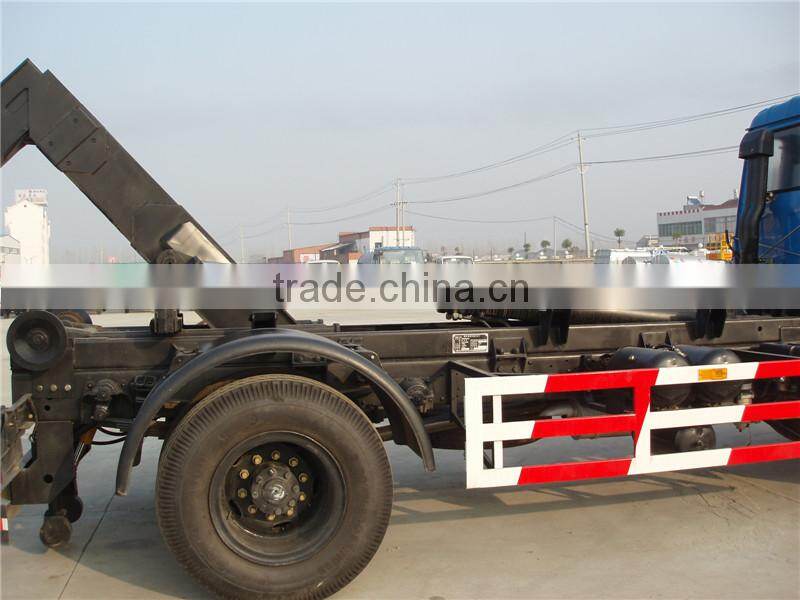

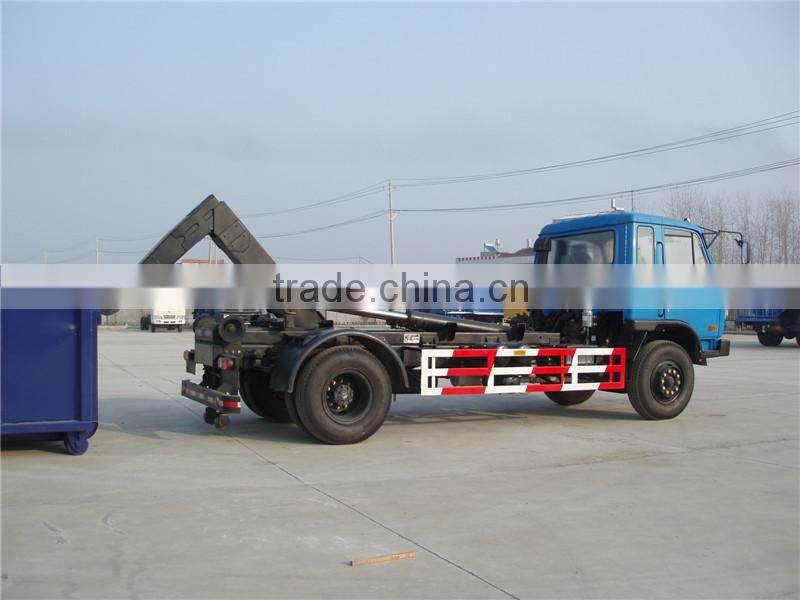

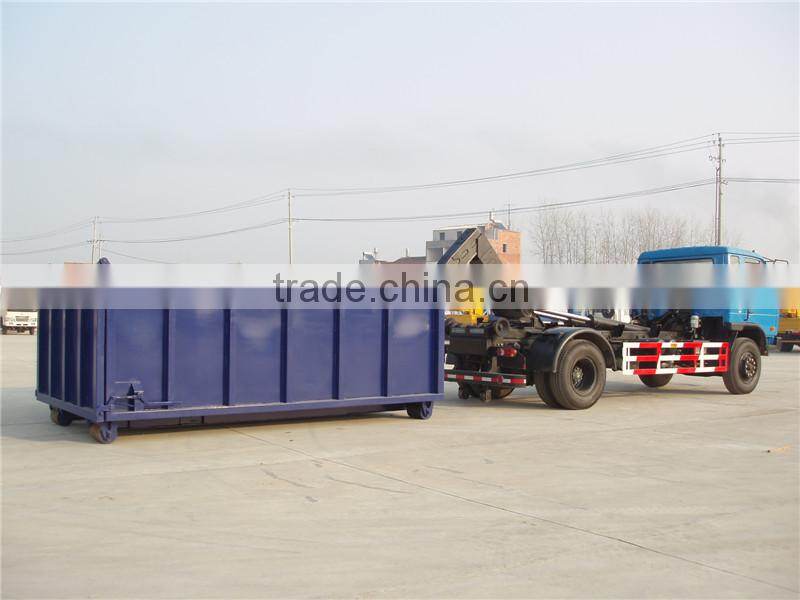

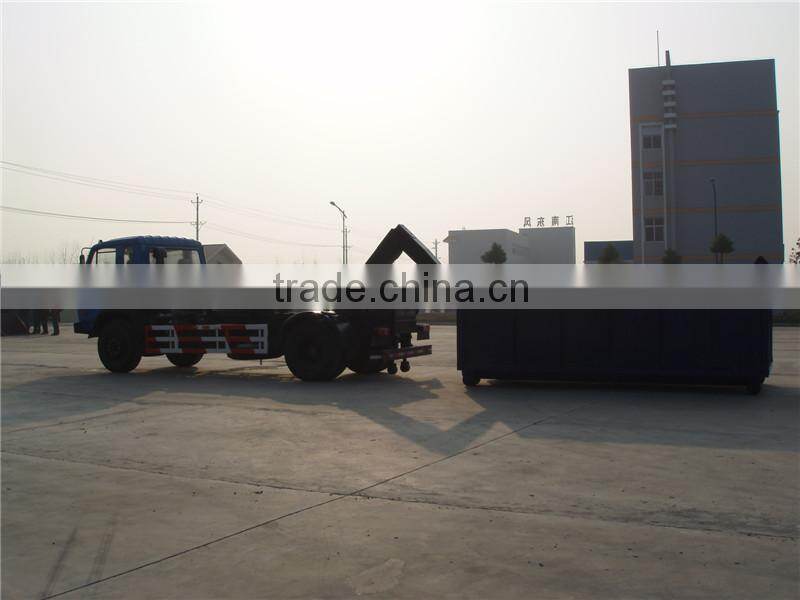

8m3 Dongfeng hook loader
Hook loader garbage truck is also called hook lift garbage truck, container detachable garbage truck , the container detachable garbage truck is mainly made of hydraulic system, operating system, double-acting lift cylinder, the garbage container can be hoisted and lowered, under auto-dumping of garbage, the feature of detachable container garbage truck is that multiple garbage container could be equipped on the chassis for cross operation and circulating transportation so that the transportation capacity and working efficiency have been improved significantly.
In terms of different requirements, different capacity of container may be configured. The truck is widely used in refuse storage area.
Vehicle name |
8m3 Dongfeng hook loader |
|
Model |
JDF5051ZXX 2 |
|
Cabin |
Single row, 2 seats |
|
Drive type |
4x2 |
|
Wheel base |
4700 mm |
|
Overall dimension (L*W*H) |
5930×1900×2130 mm |
|
GVW |
14950 kg |
|
Curb weight |
6950 kg |
|
Rated payload weight |
7870 kg |
|
Engine |
Engine model |
B190 33 |
Rated power / Displacement |
140kw (190hp) / 5900 ml |
|
Engine make |
Dongfeng Cummins |
|
Emission standard |
Euro 3 |
|
Tire type |
10.00-20, 6 pcs |
|
Hydraulic system working pressure |
16MPa |
|
Container volume |
8cbm |
|
