16m Articulated Boom Aerial Platform
- Shanghai
- T/T
You May Like
Product Details
| Transmission Type | Manual | Condition | New | |
| Emission Standard | Euro 4 | Fuel Type | Diesel | |
| Dimensions (L x W x H) (mm) | 6800X1990X2995 | Place of Origin | Hubei, China | |
| Brand Name | jiangte | Model Number | JDF5050JGKZN |
Product Description
Specifications
16m articulated boom aerial platformcrew cabin
engine power 140ps
euro 4 emission
working height 14-16m

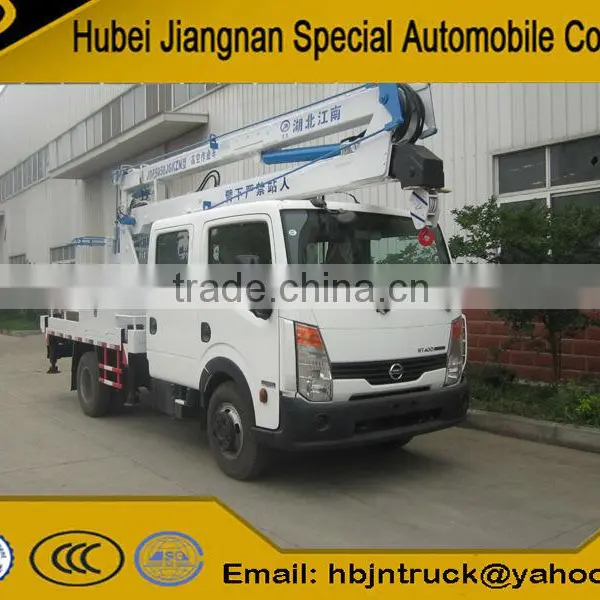

16m articulated boom aerial platform
Standard features of our articulated boom aerial platform:
Operator controls: one set in the aerial bucket with propertional functioning of the hyraulic levers during operation ensuring smooth control of all movements.
Stabilizers: four manually operated screw down type legs with sideways extendable beams for added stability.
Manufacturing standards: Manufactured in accordance with ISO9001: 2008 certified standards, and China CCC qaulity standard.
Vehicle name | 16m articulated boom aerial platform | ||
Manufacturer | Hubei Jiangnan Special Automobile Co.,Ltd | ||
Model | JDF5050JGKZN | ||
Condition | Brand new | ||
Cabin | Crew cab, 5 seats, luxury cabin | ||
Drive type | 4x2, left hand drive | ||
Wheel base | 3349 mm | ||
Overall dimension (L*W*H) | 6800X1990X2995 mm | ||
Weight | GVW | 5495 kg | |
Curb weight | 5105 kg | ||
Engine | Engine model | ZD30D14-3N | |
Make | Dongfeng | ||
Rated power / Displacement | 103 kw /2953 ml | ||
Emission standard | Euro 34 | ||
Tire type | 7.00R16LT, 6 PCS | ||
Max working height | 14m | ||
Max working radius | 6m | ||
Boom type | Articulated boom, 3 section of boom | ||
Bucket rated load | 200kg | ||
Hook rated load | 1000kg | ||
Customer visit our factory:
Our main product:
fire truck, aerial working truck, truck mounted crane, garbage truck, sewage suction tanker truck, fecal sucking truck, fuel tanker truck, water tanker truck, refrigerated truck, van truck, cargo truck, road sweeper, semi-trailer, tractor, dump truck, road wrecker, concrete mixer truck, bulk cement tanker truck
For more information please contact:
Jessica Song
Cell: 86 18771385883 or 86 15071634966
Tel: 86 722 3330261
Skype: jessicasong0525
Website: www.hbjntruck.en.china.cn
