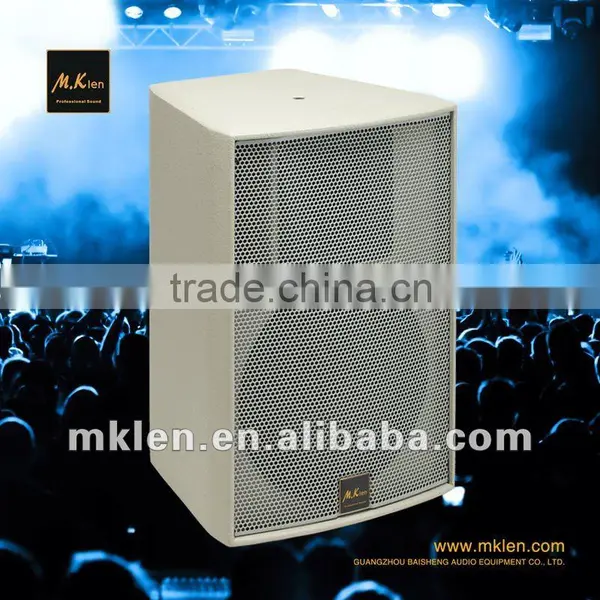

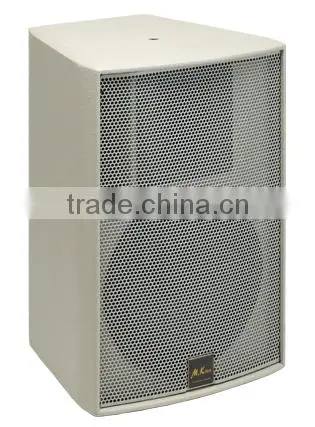

1. AQ-10 is a versatile, 2-way passive system, designed to provide exceptional club sound reinforcement and stage monitoring from a very compact enclosure.
2. It features a powerful 10″(250mm) low frequency driver and a 1inch(25mm) HF compression driver mounted on a constant directivity 90°×50° horn.
3. Depending on the application, the HF horn can be rotated to allow the multi-angle enclosure to be used in either its vertical or horizontal orientation.
AQ10 Speaker features:
♣ A 10" 2-way passive stage speaker, 250-500watts, with one 10" LF and one 1.4" HF drivers.
♣ Strong penetrating, high fidelity and low distortion, clear, pure and natural tone quality.
♣ With multilayer plywood, environmental textured black painting, newest humanzied design, simple and esay for rigging.
♣ Widely used in AV application system, meeting room, stage, theater, clubs, discos ect.
AQ10 Speaker specifications:
TYPE |
Compact, two-way passive |
FREQUENCY |
65Hz-20kHz±3dB |
RESPONSE |
-10dB@56Hz |
DRIVERS |
10inch(250mm)/2.5inch(65mm)voice coil LF driver |
|
Voice coil HF driver size 1.4inch(34mm) |
RATED POWER |
300W AES, 1200W peak |
SENSITIVITY |
96dB |
MAXIMUM SPL |
124dB peak |
NOMINAL IMPEDANCE |
8 ohms |
DISPERSION (-6dB) |
90°horizontal, 50° Vertical |
CONNECTORS |
2×Neutrik NL4 |
FITTINGS |
10×M8,4×M8 threaded inserts |
|
1×mounting pole socket |
DIMENSIONS |
(W)350mm×(H)500mm×(D)317mm |
WEIGHT |
16 kg |
♦ Our factory supports Alibaba Trade Assurance, 100% product quality protection.
♦ OEM or ODM orders are warmly welcomed, we could produce varies speakers according to your drawings.
♦ Offer 1year free warranty, except the man-made damaged.
♦ All the products will be tested and inspected before the delivery.
AQ10 Speaker box design:

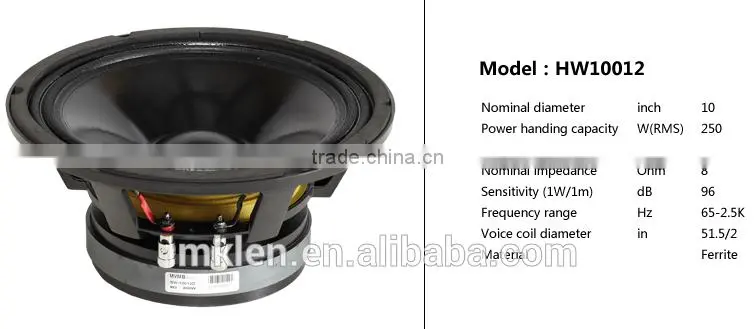

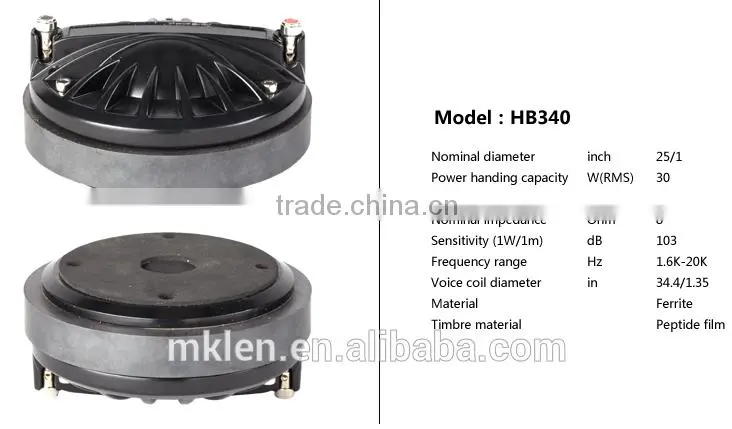

AQ10 Speaker driver configuration:
