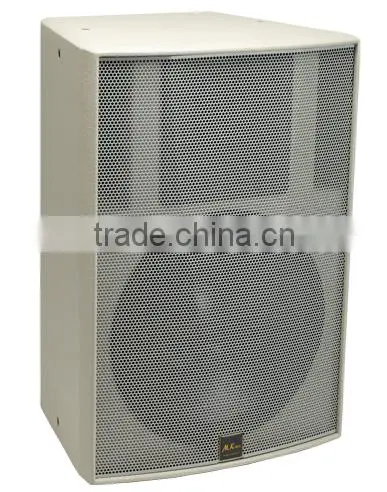

AQ15 White Pro Audio, Speaker Box

AQ15 White Pro Audio, Speaker Box thumbnail-1
AQ15 White Pro Audio, Speaker Box photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MKLEN
Model Number:
AQ15
Contact Supplier Request Quote Chat Now
Guangzhou Baisheng Audio Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name MKLEN
Model Number AQ15
Product Description

1. The high power AQ-15 is s high performance, wide-bandwidth system in an incredibly compact and efficient package.



2. Extended frequency response is provided by a 15″(380mm) LF driver teamed with a 1.4″(38mm) exit compression driver mounted on a rotatable 80°×50°constant directivity HF horn.



3. The AQ15 is perfect for higher power applications where ease of installation or speed of deployment are important factors.







 AQ15 speaker specification:



TYPE

Compact, two-way passive

FREQUENCY RESPONSE

55Hz-18kHz±3dB

DRIVERS

15″(380mm)3"(75mm)Voice bass driver



Voice coil HF driver size 3″(72mm)

RATED POWER

400W AES, 800W peak

SENSITIVITY

98dB

MAXIMUM SPL

127dB peak

NOMINAL IMPEDANCE

8 ohms

DISPERSION (-6dB)

80°horizontal, 50°vertical

CONNECTORS

2×Neutrik NL4

FITTINGS

12×M8 threaded inserts



1×mounting pole socket

DIMENSIONS

(W)470mm×(H)692mm×(D)443mm

WEIGHT

32kg







Our Services

  ♦ Our factory supports Alibaba Trade Assurance, 100% product quality protection.

 ♦ OEM or ODM orders are warmly welcomed, we could produce varies speakers according to your drawings.

 ♦ Offer 1year free warranty, except the man-made damaged.

 ♦ All the products will be tested and inspected before the delivery.







AQ15 Speaker box design:



                                                       AQ15 white pro audio, speaker box









AQ15 white pro audio, speaker box
