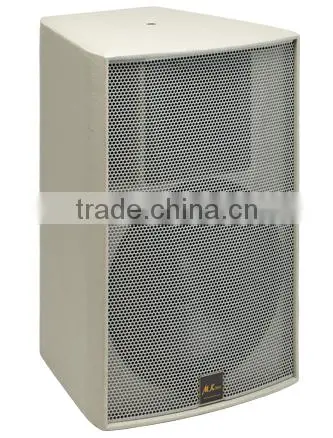

AQ12 Speaker description:
1. The Blackline WF-12 is a high power, compact 2-way system with a 12″(300mm) LF driver and a 1″(25mm) exit compression driver mounted on a rotatable 80°×50° constant directivity HF horn.
2. It is the ideal choice for full-range applications calling for an efficient, reliable workhorse that is equally suitable for fixed installations and quick wdeployment mobile operations.
AQ12 Speaker features:
♣ A 12" 2-way passive stage speaker, 300-600watts, with one 12" LF and one 1.7" HF drivers.
♣ Strong penetrating, high fidelity and low distortion, clear, pure and natural tone quality.
♣ With multilayer plywood, environmental textured black painting, newest humanzied design, simple and esay for rigging.
♣ Widely used in AV application system, meeting room, stage, theater, clubs, discos ect.
AQ12 Speaker specifications:
TYPE |
Compact, two-way passive |
FREQUENCY |
65Hz-18kHz±3dB |
DRIVERS |
12″(300mm) 2.5"(65mm)Voice bass driver |
|
Voice coil HF driver size 1.7″(44mm) |
RATED POWER |
300W AES, 600W peak |
SENSITIVITY |
97dB |
MAXIMUM SPL |
126dB peak |
NOMINAL IMPEDANCE |
8 ohms |
DISPERSION (-6dB) |
80°horizontal, 50°vertical |
CONNECTORS |
2×Neutrik NL4 |
FITTINGS |
12×M8 threaded inserts |
|
1×mounting pole socket |
DIMENSIONS |
(W)396mm×(H)572mm×(D)363mm |
WEIGHT |
20 kg |
♦ Our factory supports Alibaba Trade Assurance, 100% product quality protection.
♦ OEM or ODM orders are warmly welcomed, we could produce varies speakers according to your drawings.
♦ Offer 1year free warranty, except the man-made damaged.
♦ All the products will be tested and inspected before the delivery.
AQ12 Speaker driver configuration:
