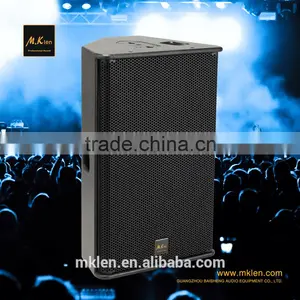

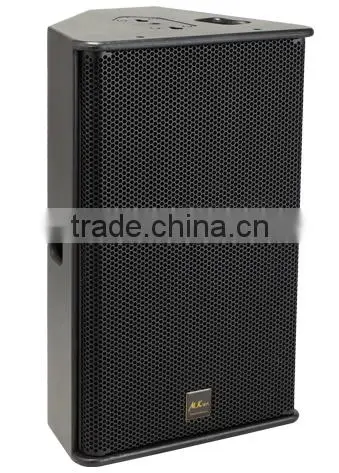

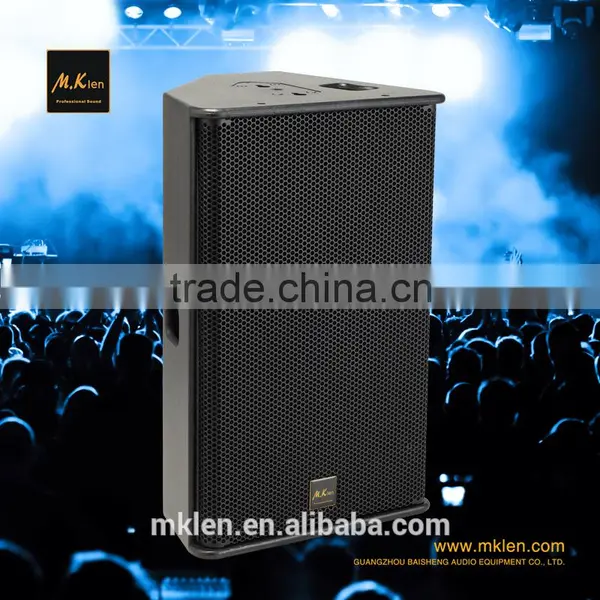

1. PS15-R2 is a versatile, 2-way passive system, designed to provide exceptional club sound reinforcement and stage monitoring from a very compact enclosure.
2. It features a powerful 15″(375mm) low frequency driver and a 1.5″(38mm) HF compression driver mounted on a constant directivity 90°×50° horn.
3. Depending on the application, the HF horn can be rotated to allow the multi-angle enclosure to be used in either its vertical or horizontal orientation.
PS15-R2 Pro speaker features:
♣ A 15" 2-way passive stage speaker, 450-900watts, with one 15" Neodymium LF and one 3" HF drivers.
♣ Strong penetrating, high fidelity and low distortion, clear, pure and natural tone quality.
♣ With multilayer plywood, environmental textured black painting, newest humanzied design, simple and esay for rigging.
♣ Widely used in AV application system, meeting room, stage, theater, clubs, discos ect.
PS15-R2 Pro speaker specifications:
| Frequency Response[a] | 58Hz-18kHz±3dB |
| Usable Range@-6dB [a] | 54Hz-18kHz |
| Sensitivity 1W@1m[b] | 99dB |
| Nominal Peak SRL@1m[b] | 128dB Peak (for 450 to 900W RMS Amp.) |
| HF Dispersion[c] | 50°to 100°Hor. × 55°Vert.Rotatable Horn,4 Positions |
| Directivity | Q & DI [c]Q:16 Nominal DI:12dB Nominal (f>1.5kHz) |
| Crossover Frequencies | 800Hz Passive or Active (internally switchable) |
| Nominal Impedance | Passive 8ΩActive; LF 6.5Ω,HF8Ω. |
| Recommended Amplifiers | 450 to 900 Watts into 8Ω. |
| Components | LF1×15″(380mm) 6Ωdriver |
| Voice coil HF driver size 3″(72mm) | |
| Constant Directivity Asymmetrical Dispersion Horn. | |
| Height × Width × Depth | 675×434×369mm |
| Weight | 26kg |
| Connectors | 3×NL4MP 4-pole SPEAKON;Passive ln Passive Loop Thru,Active ln |
♦ Our factory supports Alibaba Trade Assurance, 100% product quality protection.
♦ OEM or ODM orders are warmly welcomed, we could produce varies speakers according to your drawings.
♦ Offer 1year free warranty, except the man-made damaged.
♦ All the products will be tested and inspected before the delivery.

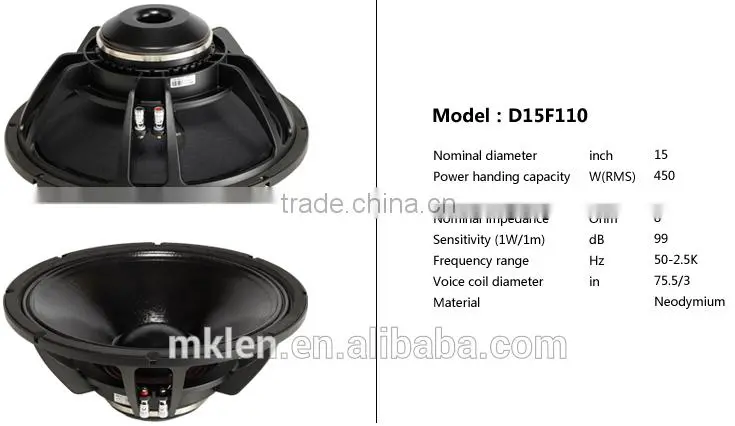

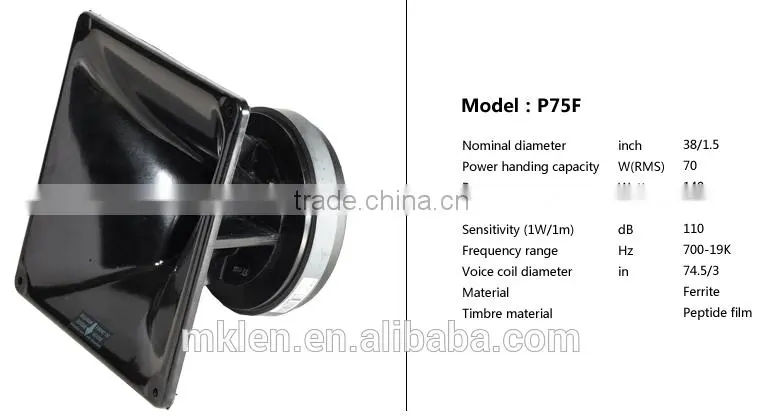

PS15-R2 Pro speaker driver configurations:
