PS12-R2 pro speaker descriptions:
1. PS12-R2 is a versatile, 2-way passive system, designed to provide exceptional club sound reinforcement and stage monitoring from a very compact enclosure.
2. It features a powerful 12″(300mm) low frequency driver and a 1″(25mm) HF compression driver mounted on a constant directivity 100°×50° horn.
3. Depending on the application, the HF horn can be rotated to allow the multi-angle enclosure to be used in either its vertical or horizontal orientation.
Frequency Response[a] | 65Hz-19kHz±3dB |
Usable Range@-6dB [a] | 60 Hz-19kHz |
Sensitivity 1W@1m[b] | 98dB |
Nominal Peak SRL@1m[b] | 121dBto127dB Peak (for 300 to 600W RMS Amp.) |
HF Dispersion[c] | 50°to 100°Hor. × 55°Vert.Rotatable Horn,4 Positions |
Directivity | Q& DI [c]Q:16 Nominal DI:12dB Nominal (f>3kHz) |
Crossover Frequencies | 2kHz Passive |
Nominal Impedance | 8Ω |
Recommended Amplifiers | 300 to 600 Watts into 8Ω |
Components | LF1×12″(300mm) 8Ωdriver |
Voice coil HF driver size 1.7″(44mm) | |
Asymmetrical Dispersion Horn. | |
Height × Width × Depth | (H)582*(D)394*(W)340 mm |
Weight | 18 kg |
Connectors | 2×NL4MP 4-pole SPEAKON |

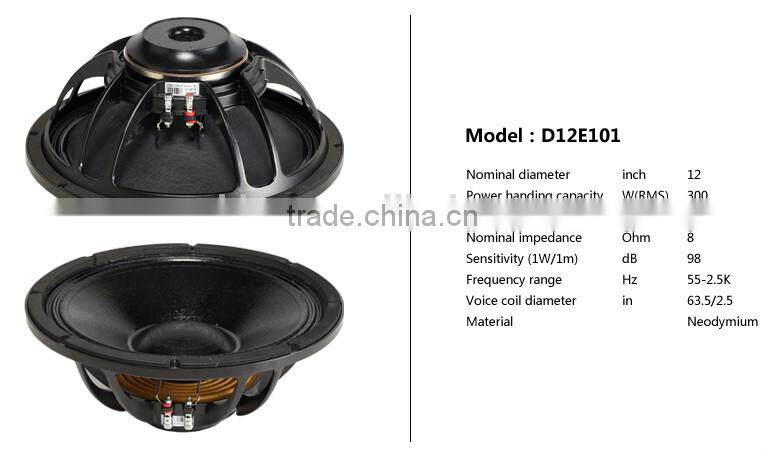

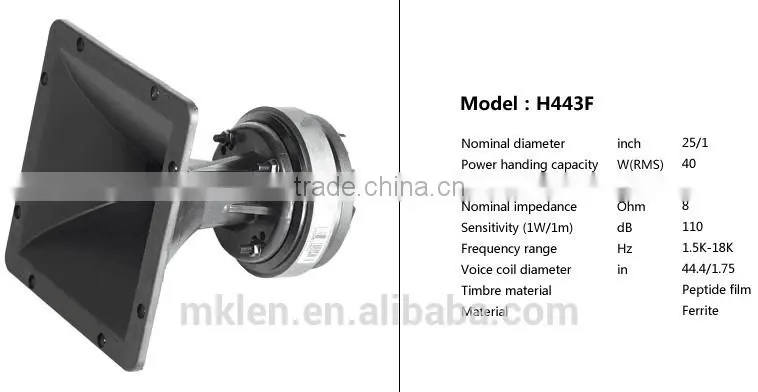

Driver configuration:

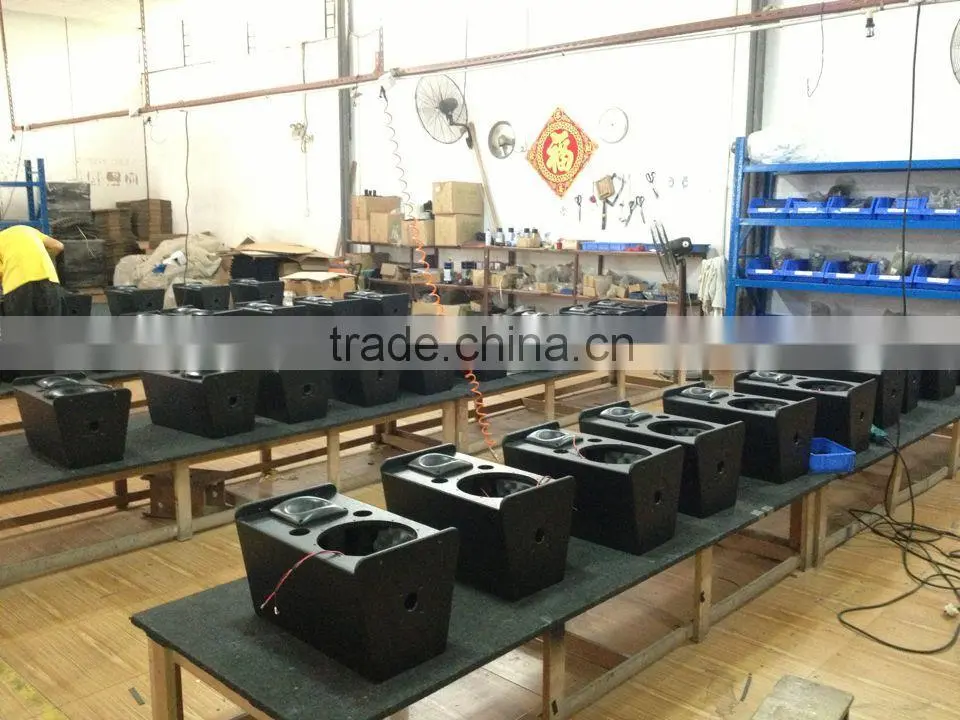

Our assembly shop:
