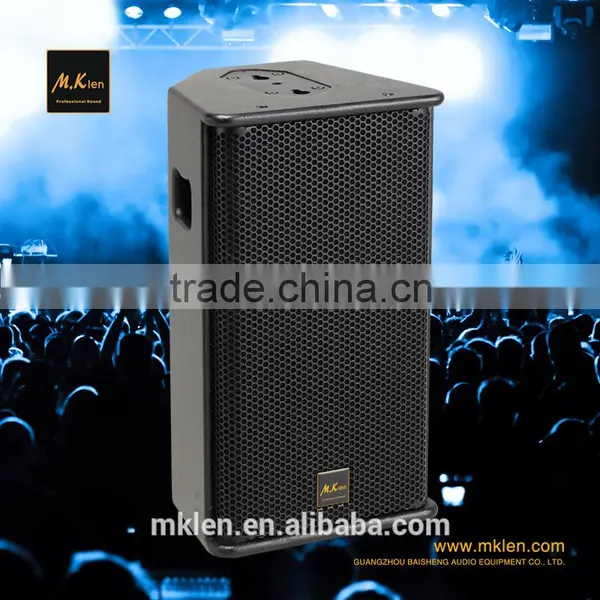

PS10-R2 pro speaker descriptions:
1. PS10-R2 is a versatile, 2-way passive system, designed to provide exceptional club sound reinforcement and stage monitoring from a very compact enclosure.
2. It features a powerful 10″(250mm) low frequency driver and a 1″(25mm) HF compression driver mounted on a constant directivity 90°×50° horn.
3. Depending on the application, the HF horn can be rotated to allow the multi-angle enclosure to be used in either its vertical or horizontal orientation.
PS10-R2 pro speaker features:
♣ A 10" 2-way passive stage speaker, 250-500watts, with one 10" Neodymium LF and one 1.4" HF drivers.
♣ Strong penetrating, high fidelity and low distortion, clear, pure and natural tone quality.
♣ With multilayer plywood, environmental smooth black painting, newest humanzied design, light weight, simple and esay for rigging.
♣ Widely used in AV application system, meeting room, stage, theater, clubs, discos ect.
PS10-R2 pro speaker specifications:

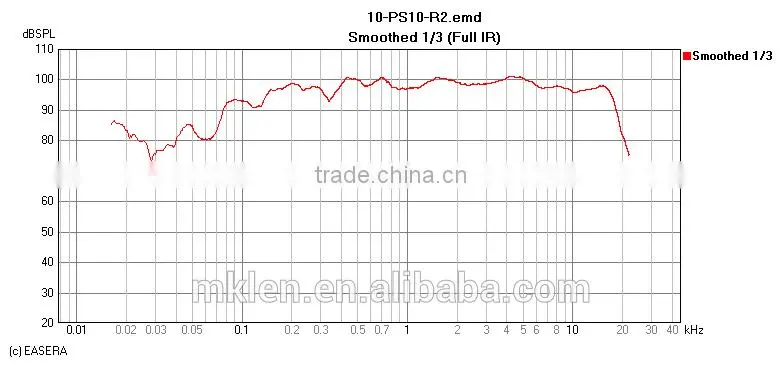

Frequency Response[a]: |
70HZ-19kHz±3dB |
Usable Range@-6dB [a]: |
65 Hz-19kHz |
Sensitivity 1W@1m[b]: |
98dB/w/m |
Nominal Peak SRL@1m[b]: |
119dBto125dB Peak (for 250 to 500W RMS Amp.) |
HF Dispersion[c]: |
50°to 100°Hor. × 55°Vert.Rotatable Horn,4 positions |
Crossover Frequencies |
2kHz Passive |
Nominal Impedance |
8Ω |
Recommended Amplifiers |
250 to 500 Watts into 8Ω |
|
Components
|

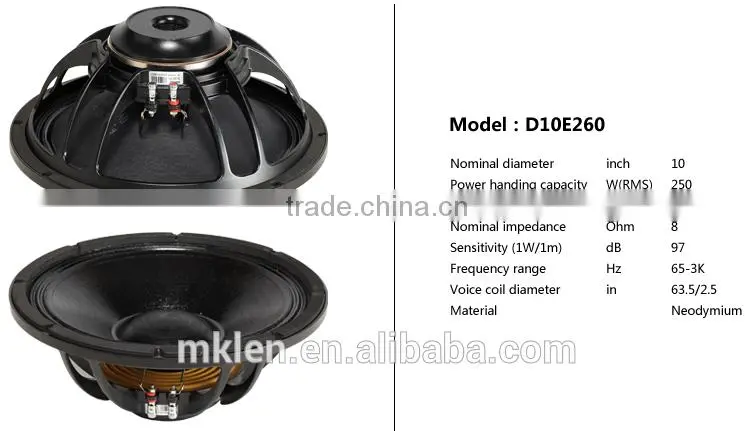

LF1×10″(250mm)Shielded Neodymium 8Ωdriver |

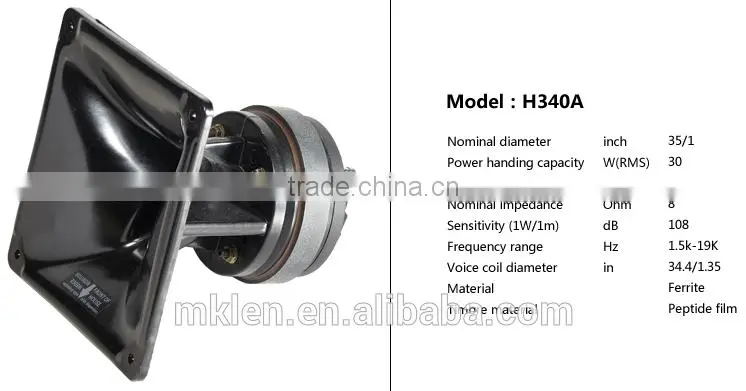

Voice coil HF driver size 1.4″(34mm) | |
Constant Directivity Asymmetrical Dispersion Horn. | |

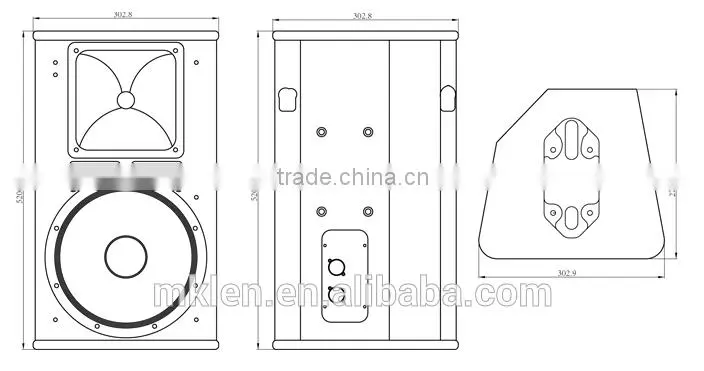

Height × Width × Depth |
520×305 ×277 mm |
Weight |
13kg |
Connectors |
2×NL4MP 4-pole SPEAKON |
♦ Our factory supports Alibaba Trade Assurance, 100% product quality protection.
♦ OEM or ODM orders are warmly welcomed, we could produce varies speakers according to your drawings.
♦ Offer 1year free warranty, except the man-made damaged.
♦ All the products will be tested and inspected before the delivery.
PS10-R2 pro speaker driver configurations:
