PS8-R2 Mini speaker instruction

PS8-R2

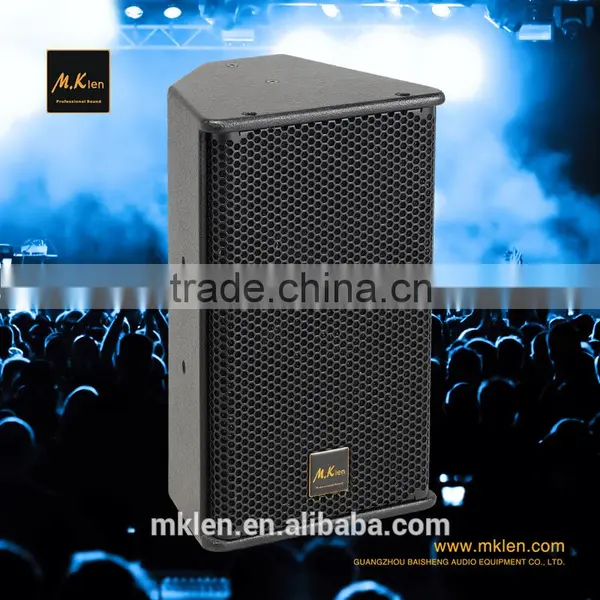

PS8-R2 is a versatile, 2-way passive system, designed to provide exceptional club sound reinforcement and stage monitoring from a very compact enclosure. It features a powerful 8″(200mm) low frequency driver and a 1″(25mm) HF compression driver mounted on a constant directivity 90°×50° horn. Depending on the application, the HF horn can be rotated to allow the multi-angle enclosure to be used in either its vertical or horizontal orientation.

Frequency Response[a]

75Hz-19kHz±3dB

Usable Range@-6dB [a]

70 Hz-19kHz

Sensitivity 1W@1m[b]

96dB

Nominal Peak SRL@1m[b]

121dB Peak (for 200 to 400W RMS Amp.)

HF Dispersion[c]

50°to 100°Hor. × 55°Vert.Rotatable Horn,4 positions

Directivity

Q&DI[c]Q:10 Nominal DI:10dB Nominal (f>1.8kHz)

Crossover Frequencies

2.5kHz Passive

Nominal Impedance

8Ω

Recommended Amplifiers

200 to 400 Watts into 8Ω

Components

LF1×8″(200mm)Shielded Neodymium 8Ωdriver

Voice coil HF driver size 1.4″(34mm)

Constant Directivity Asymmetrical Dispersion Horn.

Height × Width × Depth

406×219 ×250 mm

Weight

9kg

Connectors

3×NL4MP 4-pole SPEAKON
