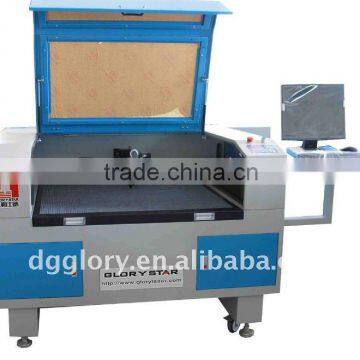

GLORYSTAR EMBROIDERY WOVEN LABEL laser cutting machine GLS-1080V

Specifications

1.Panasonic 6.40M CCD camera
2.Japan imported straight line guide rail
3.High speed and high accuracy
4.Water cooling system

Product Features

GLORYSTAR EMBROIDERY WOVEN LABEL laser cutting machine. Responing to the global market requirement, Glorystar has designed an automatically intelligent model which adopts Panasonic 6.40M CCD camera to capture the target's figure and automatically cut the outline. With its advanced technology equipments, high stability and cutting speed, this camera laser cutting machine can efficiently and perfectly handle the various labels and trademarks.



Mechanical and Software Design

This series laser cutting machine adopts DSP controlling system, 128M memory, stepping motor imported from Germany, 6.40M CCD industrial camera, industrial water cooling system, Japanese six-balanced straight-line guide rail, glass CO2 laser tube, anti-jamming industrial computer, image identification and precise high optical resolution software, USB2.0 port and flexible control panel.



Technical Data

Model	GLS-1080V
Laser Power	70W/80W/100W
Working Area	1000mmx800mm
Carving Speed	0-64m/m
Cutting Speed	0-36m/m
Repeat Accuracy	≤0.05mm
Operating System	CNC Control system
Photograph System	6.4M CCD
Cooling Method	Water-cooling
Power Consumption	≤1250W
Working Voltage	220V± 10% 50Hz (60Hz)
Working Temperature	0°C-45°C
Working Humidity	5%-95%
Control Software	Glorystar software
Graph Supported Format	CAD,BMP,JPG,PNG,TIF,PCX,TAG, LOO,GIF
Weight	320KG
Dimension	1760mm ×1440mm ×1220mm





Applicable Industry

Widely apply to fine and precise cutting in woven label, irregular embroidery badge and fabric craft.



Materials

Various labels and trademarks made of cloth, non-woven fabric, silk, paper, etc.
