Home > Products > bottle blowing machine > Small Bottles Blowing Machine

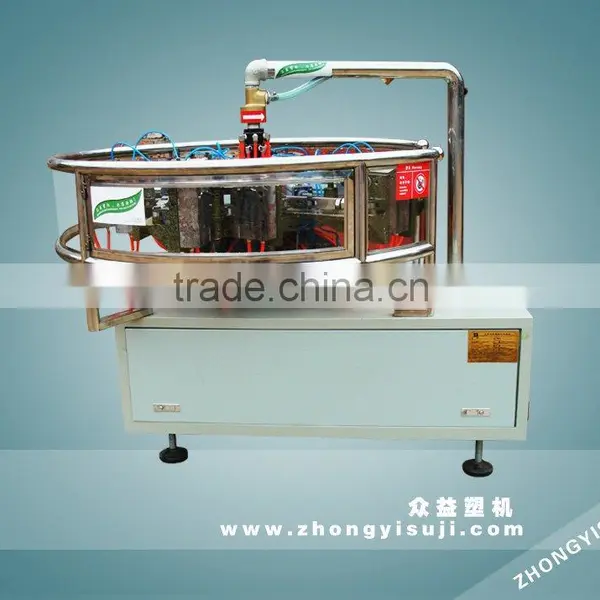

Small Bottles Blowing Machine
- xingang
- T/T
You May Like
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Hebei, China | |
| Brand Name | zhongyi | Model Number | XSJ-1 | |
| Power(W) | 17Kw | Dimension(L*W*H) | 3300mm*1200mm*1500mm | |
| Weight | 1800KG | Certification | other | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
small bottles blowing machine:1. ours is a manufacture company
2. fast-speed
3. simple operation
4. save energy
small bottles blowing machine:
Technical parameter | Xsj-1 |
Equipment composition | 6-working-position blow machine with 55 extruder machine |
Max volume of the product ml | 1200 |
Max diameter of the product mm | 100 |
Mould dimension ( L* W * H ) mm | 120×118×300 |
Production capacity PCS / day
| 20000-120000 |
Gas consumption quantity m3 / min | 0.4 |
Screw diameter mm | 55 |
Long radius rate | 25:1 |
Plasticizing capacity kg / h | 40 |
Electric machinery power kw | 7.5 |
Total power kw | 17 |
Weight kg | 1800 |
Appearance dimension ( L * W * H ) mm | 3300×1200×1500 |
The suitable raw material | PE / PP / PS / PVC |
The method of adjusting the speed | Frequency conversion |
Contact Us
- Cangzhou Zhongyi Plastic Machinery Company Limited
- Contact namekiki li Chat Now
- Phone86-317-2120067
- Addressyunhe district zhangzhuangzi industry park, Cangzhou, Hebei
