Specifications
blow moulding machines:1. ours is a manufacture company
2. fast-speed
3. simple operation
4. save energy
blow moulding machines:
We have the patent: 1. rotary-type automatic plastic blow mold machine patent number: ZL 2006 2 0160012.1 2.automatic plastic blow mold machine s device of cutting the material folder within the mould. Patent number: ZL 2005 2 0123986.8
brand | zhongyi |

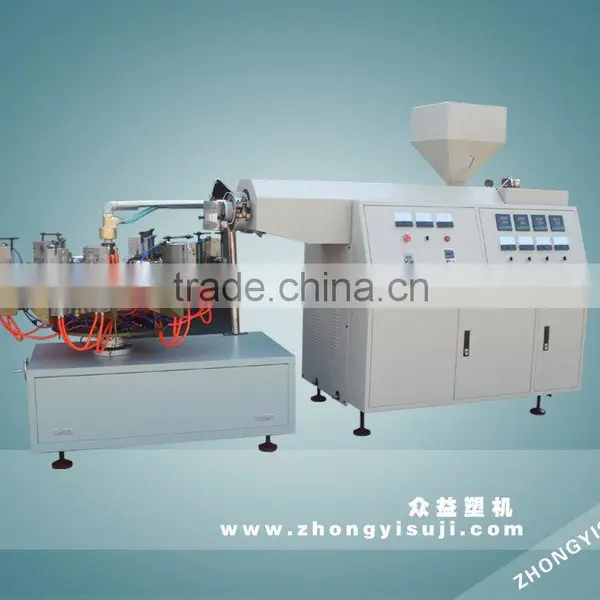

product | Fully automatic plastic blow molding machine |
type | Xsj-1 |
advantages | Fast-speed, simple operation, save energy and the price is cheap |
The composition | Extrusion, molding, orifice-cutting, removing the tailing |
What goods it can product | Middle-hollow bottles such as square milk bottles,round milk bottles, popsicle bottles, jelly bottles, medical medicine bottles, pesticide bottles, cosmetic bottles, huoxiangzhengqi water bottles, eyedrop bottles, test-tube, straw, plastic straw etc. |
Extruder Technical Parameter List | |
Screw diameter mm | 55 |
Long-radius rate | 1:25 |
Extrusion electric machinery power kw | 7.5 |
Screw rotation speed rpm | 20~65 |
Plasticizing capacity kg/h | 35 |
Heating power kw | 8.8 |
Molding Machine Technical Parameter List | |
Lock mould type | Pneumatic lock mould |
Max moulding strength kg | 700 |
Mould plate dimension(width*height) mm | 130*200 |
Width between mould plate mm | 120 |
Max diameter of the machine | 80 |
Production capacity PCS/day | 30000~80000 |
Blowing pressure Mpa | 0.4 |
Cooling water pressure Mpa | 0.2~0.3 |
Gas consumption quantity m3/min | 0.4 |
Electric machinery power kw | 0.75 |
