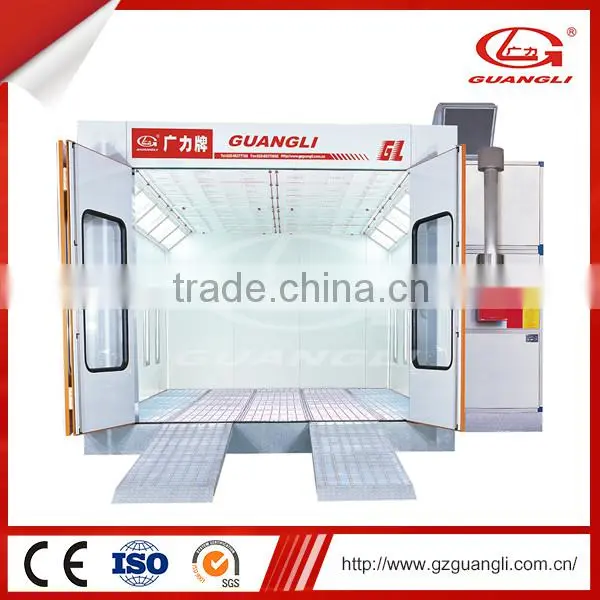

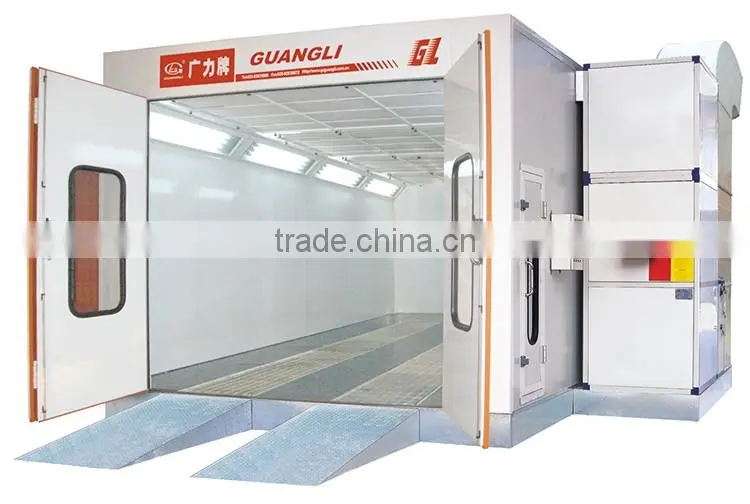

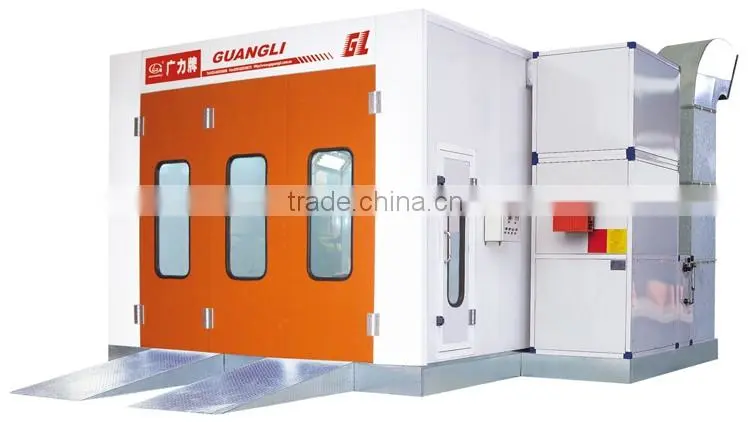

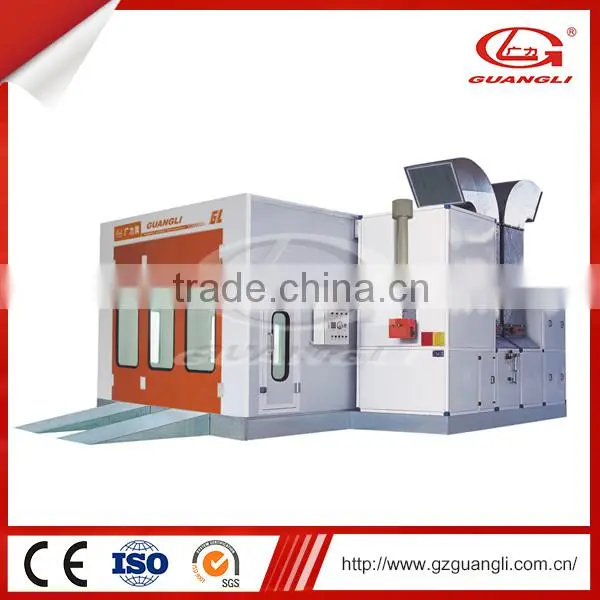

Factory Supply Galvanized Steel Car Maintanence Euqipment Automotive Spray Baking Booth(GL4000-A1)
GuangLi Spray booth Feature
--Wall panel: sandwich style, δ=50mm,rock wool available as required.
--Basement: steel structure, full grids,ramp: 2 pcs of grids.
--Door: 3 pcs of front door without aluminum side cover. 1pc of emergency door with pressure lock.
--Lengthened room as optional: outside size: 7.6*5.6*3.5(m) inside size:7.5*3.9*2.7(m)
--One 11kw intake fan and one 11kw exhaust fan.
--4m straight exhaust ducts, one 90° bend, and one 60° bend.5m straight chimney and 2 small bends.
--1 manual VCD exhaust damper, electrical VCD as optional. one pressure meter.
--Spraying/baking transition damper, automatically air controlled.
--Heat exchanger: stainless steel. Riello G20 burner.
--Roof filter: 6 pcs of filter, mounted above support frame, which is made of steel and powder coated.
--5 pcs of floor filter and 2 pcs of air mouth filter. --Upper light: 10 sets, 4*40w per set. side lights: 8sets, 4*40w.
--Control box: imported components, overload, overheat, phase-lacking,
phase-locking protection, engine Y star-delta start.
--Automatically stop when preset time is up.--Constant temperature spraying.
--Environmental filter :the equipment can be adopted m style activated
carbon or drawer style activated carbon.
| Technical Specifications | GL4000-A1 |
| External size(m) | 7.0×5.6×3.5 |
| Internal size(m) | 6.9×3.9×2.7 |
Door width(m) |
3.0 |
Door height(m) |
2.66 |
| Air flow (m3/h) | 30000 |
| Inside on-load air speed(m/s) | 0.3-0.5 |
| Power (kw) | 25 |
| vehicle suited | Saloon car |
GuangLi Spray booth Show
GZ GUANGLI EFE CO.,LTD is professional spray booth and car lift manufacturer in China for more than
20 years technical and production experience.
Founded in 1994, Guangli started to build our own enterprise headquarters and new factory in 2005,
which covers 58000M³of grounding area and 36000M³of building area.
GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China, having
a good reputation among Chinese auto-maintenance enterprise. The sales volume of spray booth ranks
top in this field over years.
Our products spray booth and car lifts have got CE certificate and our company has passed ISO9001:
We have imported a Full-auto production line and many facilities from Europe, owning the most
advanced production equipment in China.
