Low Price uv Painting Line for Auto Machine
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Power:
23kw
External Size:
8.3x8.4x5.5
Internal Size:
8.3x8.4x5.5
Payment & Shipping
Payment Methods:
Port of Shipment:
guangdong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale Powder Coating by uv Painting LineNegotiableMOQ: 1 Unit -
Competitive Price New Design Automatic uv Spray Painting LineNegotiableMOQ: 1 Unit
-
CE Certificated Best Sale UV Painting LineNegotiableMOQ: 1 Unit
-
Golden Supplier High Efficiency GL-L3 Multi-station Auto Powder Painting LineUS$ 3,500 - 25,780MOQ: 1 Unit
-
GL-L3 Factory Supply Multi-station High Quality Auto Powder Painting LineUS$ 3,500 - 25,780MOQ: 1 Unit
Power
23kw
External Size
8.3x8.4x5.5
Internal Size
8.3x8.4x5.5
Voltage
380v/3phase/50hz
Certification
CE
No Load Speed
0.25m/s
Place of Origin
Guangdong, China
Brand Name
GUANGLI
Model Number
GL-L3
Low price uv painting line for auto machine
Product Description
Auto Works Painting Line Feature

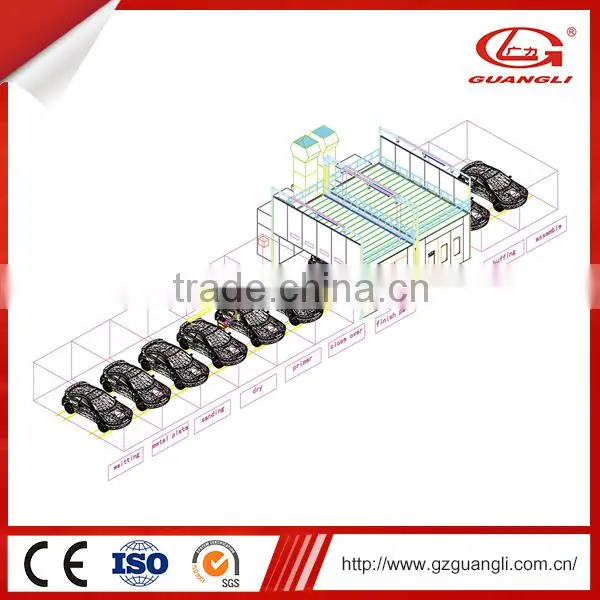

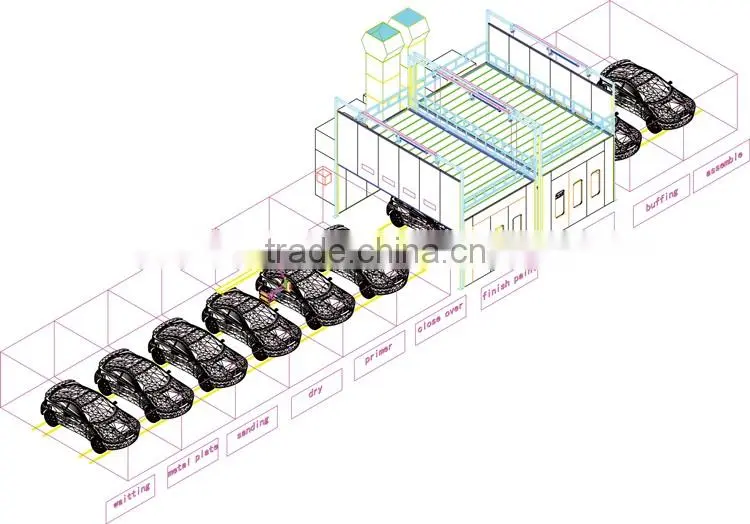

Multi-bays Line: Prep station + Paint booth + Baking booth + Polishing area
Working process:
- Park the vehicle on the four movable jacks in the waiting area.
- Push the vehicle to the wanted working area in order, and then carry out Body works, Sanding, Priming, Masking, finishing paint, Drying, Polishing and Assembly in this line.
- The transition in different areas is realized by moving vehicles along the jacks.
Structure:
- Painting and barking are working separately in this line, vehicle can through from the moving door in side wall. With close curtain at two side of optional prep station.
- This line consists of painting room, baking room, rails and movable jacks. Prep station and infrared light are for option.
- Painting room and baking room are connected in parallel. Ventilation and heating system placed at rear.
- The transition in different area is realized by moving vehicles along the jacks.
- Pull& Push Folding Door is standard, automatic control vertical suspending door and sectional suspending door for option.
- If specified with vertical suspending door, the height of workshop should be at least 5800mm.
- A small spray booth can be installed outside the line to do the painting and baking for parts.

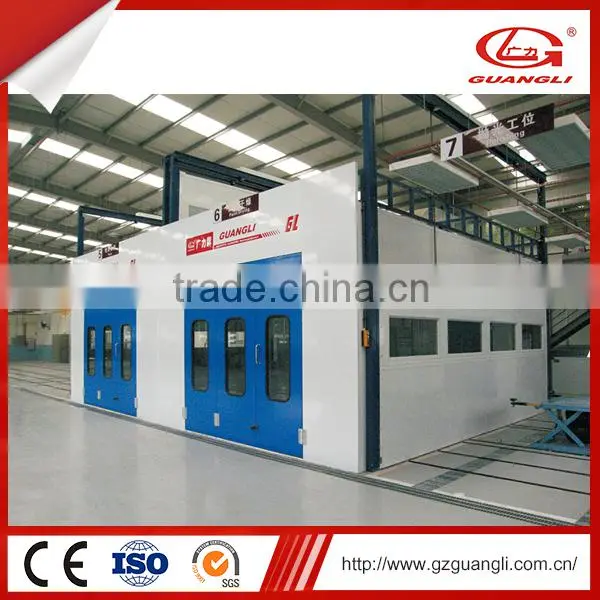

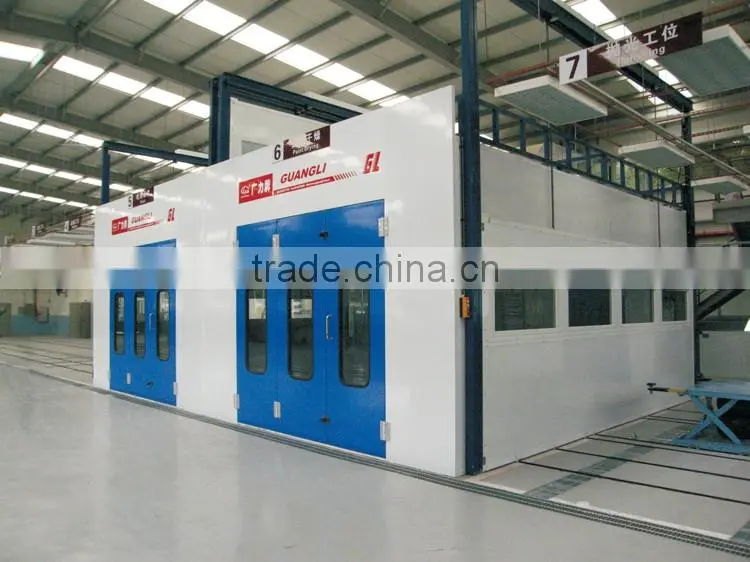

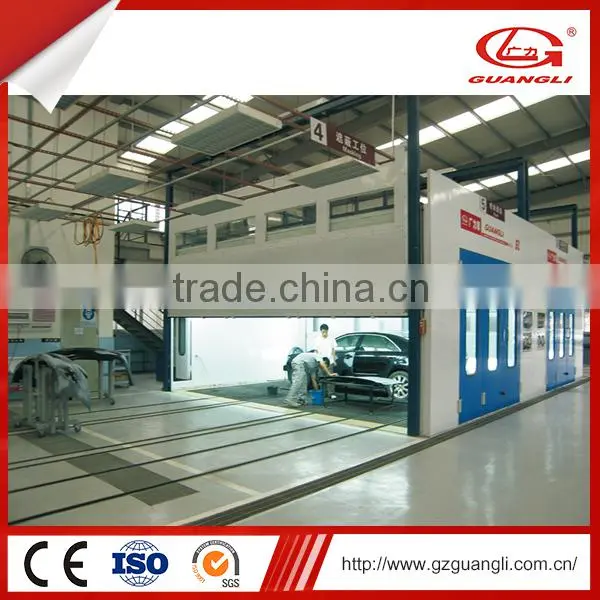

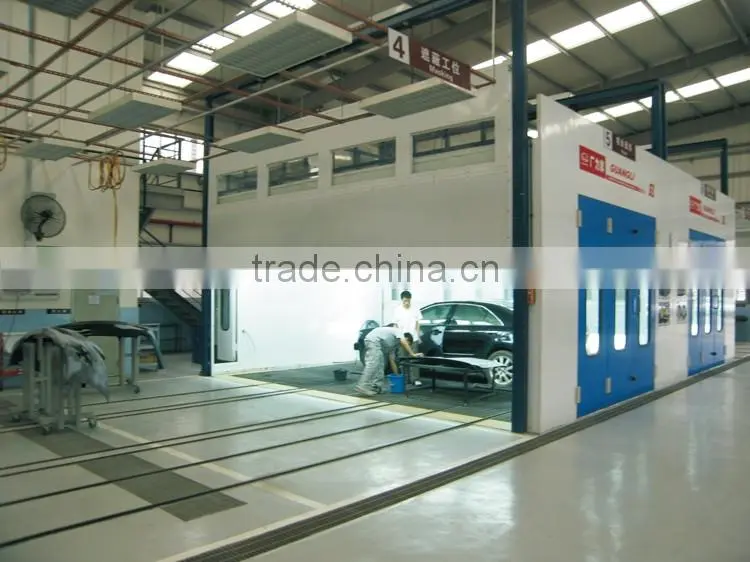

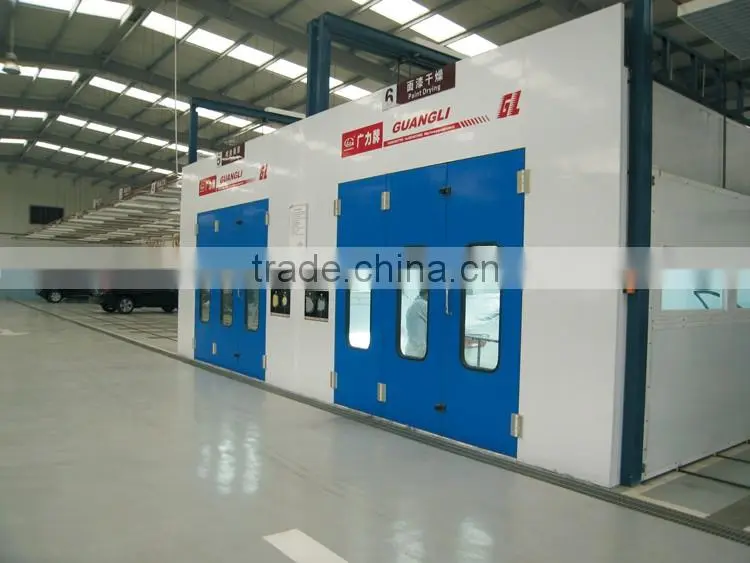

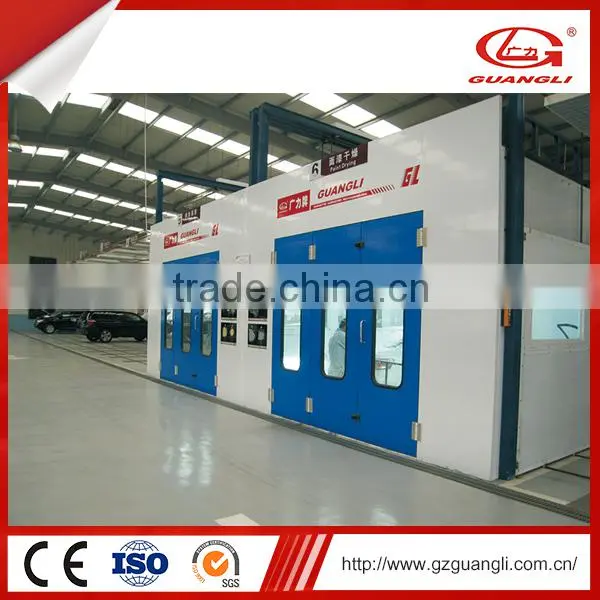

Auto Works Painting Line Show
| Technical Specifications | GL-L3 |
| Painting line Length(m) | 36.4 |
| External Size Internal Size | 8.3x8.4x5.5 |
| Painting booth Internal Size | 6.9x3.9x2.8 |
| Baking Booth Internal Size | 6.9x3.9x2.8 |
| Painting booth Air Flow(m³/h) | 25000 |
| Baking Booth Air Flow(m³/h) | 18000 |
| Total Power (kw) | 23 |
| Standard Movable Jacks | 23sets |
| Rail | 5x36.4m |
Remark:
1.Wet sand, vertical suspend door without exhaust system.
2.The model about are suitable for saloon car, concrete basement made by user.
3.Nonstandard design plan can be made as requirement.
