BUNDOR 200X compressor electronic control valve
USD $20 - $50
/ Set
30 Sets(Min.Order)
- 28000 Set / Sets per Month
- Tianjin/Qingdao/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Standard or Nonstandard: | Standard | Structure: | Other, Control for 200X compressor electronic control valve | Pressure: | Medium Pressure |
Power: | Manual | Material: | Casting | Temperature of Media: | Medium Temperature |
Media: | Water | Port Size: | DN40-DN609 | Place of Origin: | Tianjin, China |
Model Number: | 300X | Brand Name: | BUNDOR | Application: | General |
Product Description

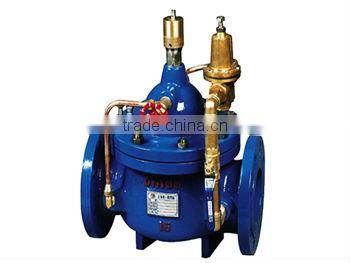

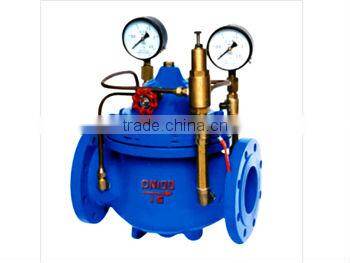

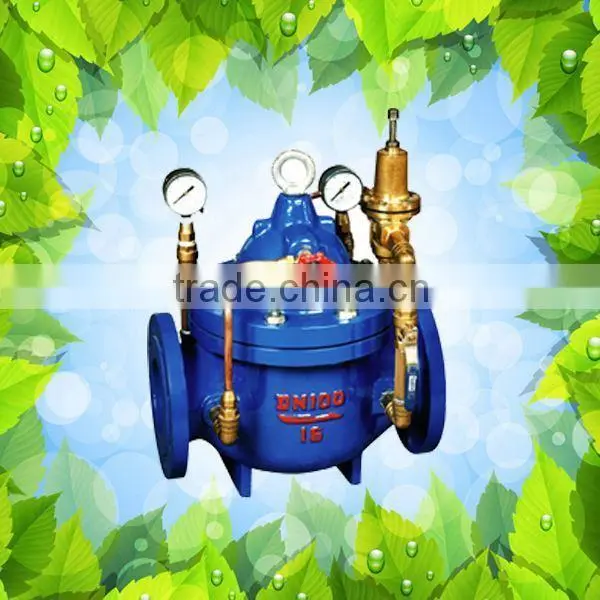

200X compressor electronic control valve
Product Introduction:
The 200X pressure reducing valve is an intelligent valve that uses the self energy of the medium to regulate and control the pressure in pipes. The 200X pressure reducing valve can be used in domestic water supply,fire fighting water supply and other industrial water supply systems. The outlet pressure of the main valve can be regulated through the adjustment of the pressure reducing valve; the outlet pressure does not vary along with the inlet pressure and inlet flow. Accordingly, the outlet pressure can be safely and reliably maintained at a preset value and the preset value can be adjusted according to actual needs to obtain your pressure reducing goal. This valve is precise in pressure reduction, stable in performance, safe, reliable, easy, convenient to install and adjust and offers a long service life.
Product Specifications:
200X compressor electronic control valve
Pressure grade: PN10, PN16, PN25 150LB 300LB
Diaphragm: DN20-450 (3/4"---18")
Piston: DN500-1200(20"—48")
Medium temperature : 0 - 80 °C
Pressure grade: PN10, PN16, PN25 150LB 300LB
Diaphragm: DN20-450 (3/4"---18")
Piston: DN500-1200(20"—48")
Medium temperature : 0 - 80 °C

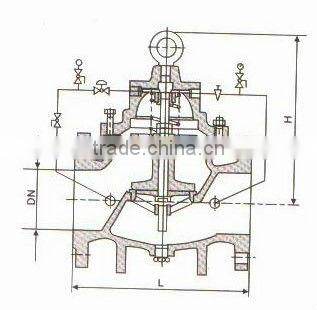

DN(mm) | L(mm) | H(mm) | H(mm) | (KG) |
50 | 234 | 98 | 320 | 18 |
65 | 240 | 115 | 410 | 22 |
80 | 285 | 131 | 430 | 30 |
100 | 325 | 145 | 480 | 55 |
125 | 345 | 160 | 535 | 70 |
150 | 395 | 185 | 600 | 80 |
200 | 470 | 160 | 675 | 110 |
250 | 575 | 180 | 720 | 210 |
300 | 640 | 200 | 820 | 300 |
350 | 645 | 225 | 860 | 380 |
400 | 970 | 750 | 950 | 350 |
Main Technical Feature:
200X compressor electronic control valve
Nominal Pressure | 1.0MPA | 1.6MPA | 2.5MPA |
Test pressure of the shell | 1.5MPA | 2.4MPA | 3.75MPA |
Sealed test pressure | 1.1MPA | 1.76MPA | 2.75MPA |
Suitable temperature | ≤80°C | ||
Suitable medium | water |
Related Products:
100-Hydraulic control valve
200X pressure reducing valve(JEJ-0902)
300X slow-closure type check valve
400X Flow control valve
500X Pressure Release Pressure Maintain Valve
600X Hydraul Electrical Control Valve
700X Pump Control Valve
800X pressure difference balance valve
900-Emergency Shut-Off Valve
1000-Control Valve
...
