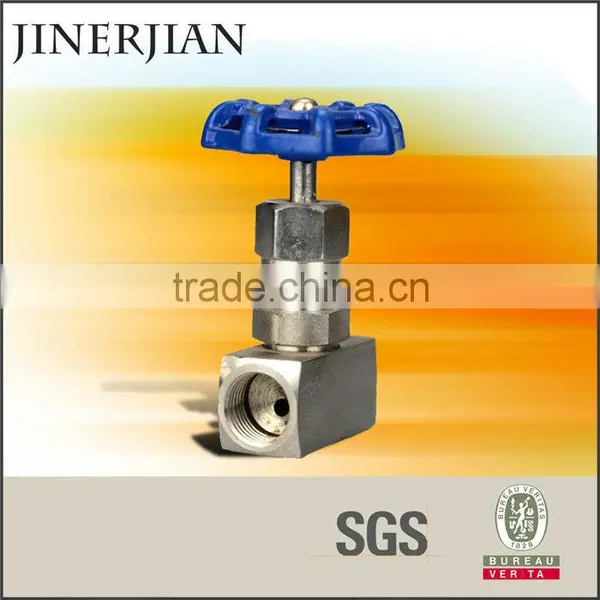

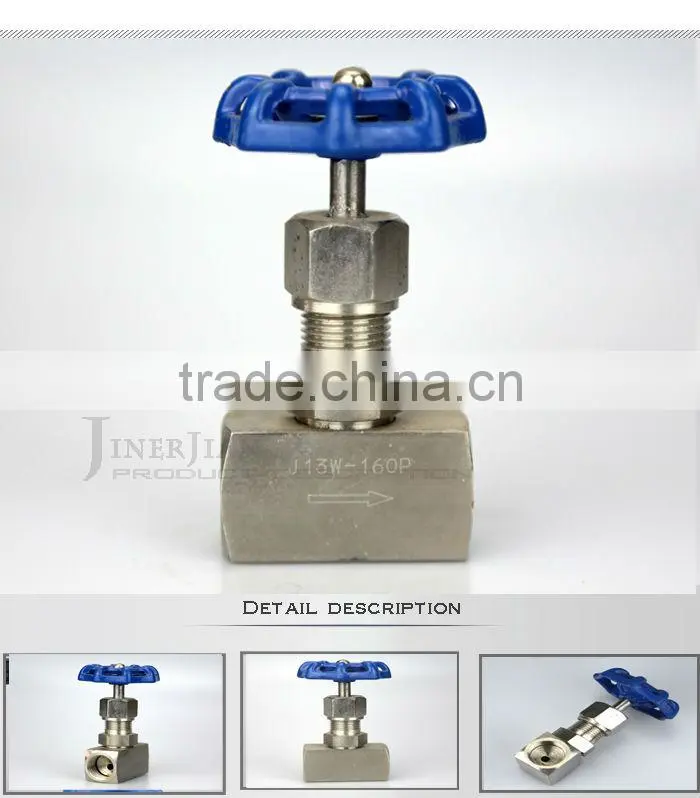

JIS/DIN/ANSI/BS Threaded Needle Valve
JEJ JIS/DIN/ANSI/BS Threaded Needle Valve, long service life, even after sealing damage, only need to replace wearing parts, you can continue to use.Needle valve should be installed so consistent, open or cut off the pipeline path with the flow of the medium and the direction of the arrow on the valve body. Easy installation and removal, the connections are tight, there is conducive to fire, explosion-proof and high pressure capability, good sealing performance, is a state-of-the-art power plants, oil refineries, based on the device and instrument measuring pipe valve connection.
Seat of JIS/DIN/ANSI/BS Threaded Needle Valve :
Main specifications : DN6, DN10, DN15, DN20, DN25 Models:J61W-16P,J61W-25P,J61W-64P,J61W-160P,J61W-320P, J61Y-160V, J61Y-160P, J61H-160C, J61Y-320P
Valve Handle of JIS/DIN/ANSI/BS Threaded Needle Valve :
Handle methods are hand-wheel, strip steel style, with red, blue, black Design and manufacture: GB/T12224-1989, JB/T7747-1995 Connection: Butt type, welded, socket welded Shell test pressure: 48MPA Air pressure test: 19.2MPA Applicable medium: water, oil, steam WOG Structural features: cone seal, activities disc Valve Inspection: GB/T13927-1992 .
JIS/DIN/ANSI/BS Threaded Needle Valve:
Specifications: Features Specifications: needle valve needle valve Size: 1/4 -2 Pressure: Class 150LB-2500LB Material: CF8,CF8M,CF3,CF3M, A105,LF2,F11,F304,F316,F304L,F316L Design & Manufacture Std.: ASME B16.34 Threaded End: G, NPT, BSP, BSPT, DIN259/2999 Butt-weld End.: ASME B 16.25 Socket-weld End: ASME B16.11 Test Standard: API598 Structure Type: Reduced bore,Full bore Operated way: T-lever, handwheel .
Specifications of JIS/DIN/ANSI/BS Threaded Needle Valve
| Part name | Stem,Bonnet | Stem,disc | Packing |
| J21 /3W-16P | Cr. Ni Stainless steel | Cr. Ni Stainless steel | PTFE,Soft graphite |
| J21 /3W-160,J2W1 3-40 | High grade carbon steel | Cr. Stainless steel |
No. Part Name Material1 Body Carbon Steel/Stainless Steel/Cast Iron/Ductile Iron/ Al-Bronze2 Disc Al-Bronze/CF8M/Ductile iron/WCB3 Seat EPDM/PEFE/Buna/NBR/Hypalon4 Stem Carbon Steel/Stainless Steel314/Stainless Steel3165 Bushing PTFE/Lubricating6 O ring EPDM/PEFE/Buna/NBR/Hypalon7 Pin SS316/SS416/SS304
We regards"high quality products and customer satisfaction"as belief,regards "reasonable price, attentive service and most reliable quality" as basic of company. We make the following commitments to you.
A. Quality commitment:
1, In order to prevent unqualified products leaving factory,company carried out 48 ways quality control from casting to packing.Each butterfly valve meets national standard.
2, We put inspection certificates and installation instructions together with products to help the finally user use correctly.
B.Price commitment:
1, In order to make sure reliability and advanced quality of the products, we choose the best material from parts suppliers.
2.We will supply our favorable price to you in the same conditions of other companies without use inferior materials.
C.Pre-sale service commitment:
Product introduction, technical communication, non-standard product design, trouble-shooting.<br >D. Sale service commitment:
1.we will inform customer about the product name,quantity,packing and delivery time in advance by fax,SMS,email etc, keep in touch with clients,ensure the timely delivery.
2.For special or complex products, we will arrange technical personnel give training and guidance to the users about application of the products, troubleshooting, commissioning and maintenance.
About Jinerjian
Jinerjan (Tianjin) Valve Co., Ltd. is a manufacturer which is specialized in researching, producing and exporting wafer butterfly valves, flange butterfly valves, electric butterfly valves, pneumatic butterfly valves and dual plate check valves. Through all staff"s efforts, our business has expanded rapidly in the past 18 years. We have set up foundry, machining and assembly workshops.
