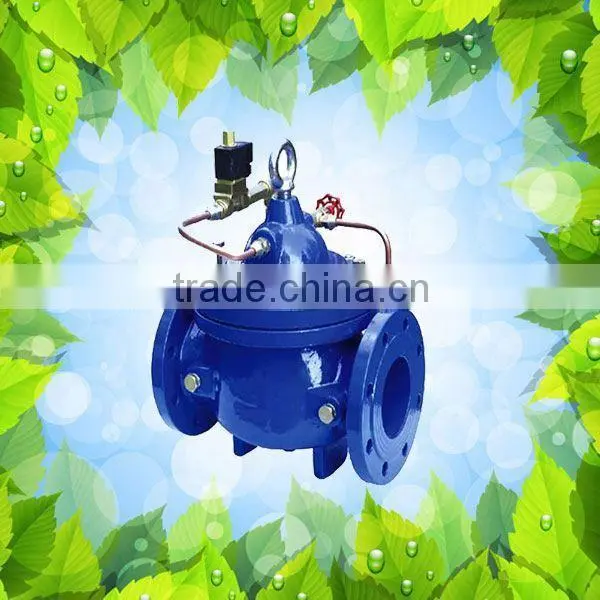

JINERJIAN Remote Control Water Valve of Hydraulic Valves
US$ 20 - 50
MOQ: 20 Sets
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Other, Control for remote control water valve of hydraulic valves
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Qingdao/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Needle Carburetor Valve Diagram,hydraulic NeedleUS$ 3.68 - 50MOQ: 10 Sets -
Flanged and Threaded Water Foot ValveUS$ 1.5 - 50MOQ: 50 Sets
-
Flexible Single Ball Rubber JointUS$ 4 - 126MOQ: 5 Sets
-
Chemical Industry High Quality Manual Operated Wafer Lug Pn16 Cast Iron Knife Gate ValveUS$ 26.8 - 69.1MOQ: 1 Set
-
Double Flange Wtx Flexible Rubber JointUS$ 16 - 50MOQ: 1 Set
Standard or Nonstandard
Standard
Structure
Other, Control for remote control water valve of hydraulic valves
Pressure
Medium Pressure
Power
Hydraulic
Material
Other, Casting for remote control water valve of hydraulic valves
Temperature of Media
Medium Temperature
Media
Other, Water for remote control water valve of hydraulic valves
Port Size
DN40-DN609
Place of Origin
Tianjin, China
Model Number
600X
Brand Name
JINERJIAN
JINERJIAN remote control water valve of hydraulic valves
Product Introduction:
The 600X motorized valve is a kind of waterpower operated valve that utilizes a solenoid valve as its pilot valve. It is normally used in automatic control for water supply and drain systems and other industrial systems.It is precise and quick in its response in the process of control and utilizes remote operations through turning on/off the management system via remote control signals. It can also replace gate valve and butterfly valve for application in large-sized electrically operated systems because the shut-off speed of the valve is adjustable and smooth shutoff can be realized without causing any pressure variation. This valve is small in volume and weight, simple to maintain and repair, easy to use, safe and reliable. Both 220VAC and 24VDC can be used for the solenoid valve and you can choose to use the constantly open or constantly closed valve according to you actual needs during a specific situation.Pressure Rating: PN10. PN16. PN25/Class150Size Range: DN20mm-DN800mm (3/4" - 32")Test and inspection: GB/T 13927 API598
Product Specifications:
JINERJIAN remote control water valve of hydraulic valves
Role and Uses: This valve is installed in pipeline to open and close by remote control , can replace large electrical devices in gate valve and butterfly valve, small size, light weight, easy maintenance, use convenient, safe and reliable.
Pressure grade: PN10, PN16, PN25 150LB 300LB
Diaphragm type: DN20mm--450mm 3/4"—18"
Piston type: DN500mm--1200mm 20"—48"
Medium temperature :0 - 80°C
Role and Uses: This valve is installed in pipeline to open and close by remote control , can replace large electrical devices in gate valve and butterfly valve, small size, light weight, easy maintenance, use convenient, safe and reliable.
Pressure grade: PN10, PN16, PN25 150LB 300LB
Diaphragm type: DN20mm--450mm 3/4"—18"
Piston type: DN500mm--1200mm 20"—48"
Medium temperature :0 - 80°C

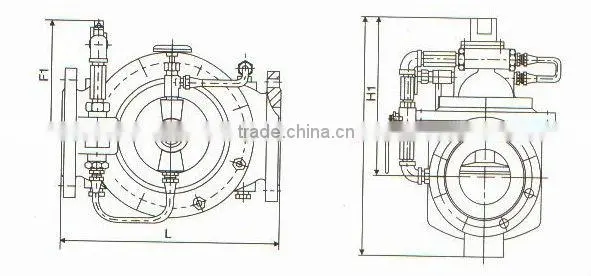

| DN | L | D | D1 | D2 | Z-~d | H1 | H | ||||||||
| PN10 | PN16 | PN25 | PN10 | PN16 | PN25 | PN10 | PN16 | PN25 | PN10 | PN16 | PN25 | ||||
| 50 | 203 | 165 | 165 | 165 | 125 | 125 | 125 | 102 | 102 | 99 | 4-~18 | 4-~18 | 4-~18 | 300 | 95 |
| 65 | 216 | 185 | 185 | 185 | 145 | 145 | 145 | 122 | 122 | 118 | 4-~18 | 4-~18 | 8-~18 | 288 | 97 |
| 80 | 241 | 200 | 200 | 200 | 160 | 160 | 160 | 133 | 133 | 132 | 8-~18 | 8-~18 | 8-~18 | 310 | 109 |
| 100 | 292 | 220 | 220 | 235 | 180 | 180 | 190 | 158 | 158 | 156 | 8-~18 | 8-~18 | 8-~18 | 340 | 152 |
| 125 | 330 | 250 | 250 | 270 | 210 | 210 | 220 | 184 | 184 | 184 | 8-~18 | 8-~18 | 8-~18 | 380 | 152 |
| 150 | 356 | 285 | 285 | 300 | 240 | 240 | 250 | 212 | 212 | 211 | 8-~18 | 8-~18 | 8-~18 | 410 | 160 |
| 200 | 495 | 340 | 340 | 360 | 295 | 295 | 310 | 268 | 268 | 274 | 8-~22 | 12-~26 | 12-~26 | 440 | 220 |
| 250 | 622 | 395 | 405 | 425 | 350 | 355 | 370 | 320 | 320 | 330 | 12-~22 | 12-~26 | 12-~26 | 460 | 250 |
| 300 | 698 | 445 | 460 | 485 | 400 | 410 | 430 | 370 | 370 | 389 | 12-~2 | 12-~26 | 12-~26 | 480 | 270 |
| 350 | 787 | 505 | 520 | 555 | 460 | 470 | 490 | 430 | 430 | 448 | 16-~22 | 16-~26 | 16-~26 | 516 | 314 |
| 400 | 914 | 565 | 580 | 620 | 515 | 525 | 550 | 482 | 482 | 503 | 16-~26 | 16-~30 | 16-~30 | 560 | 340 |
| 450 | 978 | 615 | 640 | 670 | 565 | 585 | 600 | 532 | 545 | 548 | 20-~26 | 20-~30 | 20-~30 | 560 | 340 |
Main Technical Feature:
JINERJIAN remote control water valve of hydraulic valves
| Nominal Pressure | 1.0MPA | 1.6MPA | 2.5MPA |
| Test pressure of the shell | 1.5MPA | 2.4MPA | 3.75MPA |
| Sealed test pressure | 1.1MPA | 1.76MPA | 2.75MPA |
| Suitable temperature | ≤80°C | ||
| Suitable medium | water | ||
Related Products:
100-Hydraulic control valve
200X pressure reducing valve(JEJ-0902)
300X slow-closure type check valve
400X Flow control valve
500X Pressure Release Pressure Maintain Valve
600X Hydraul Electrical Control Valve
700X Pump Control Valve
800X pressure difference balance valve
900-Emergency Shut-Off Valve
1000-Control Valve
....
