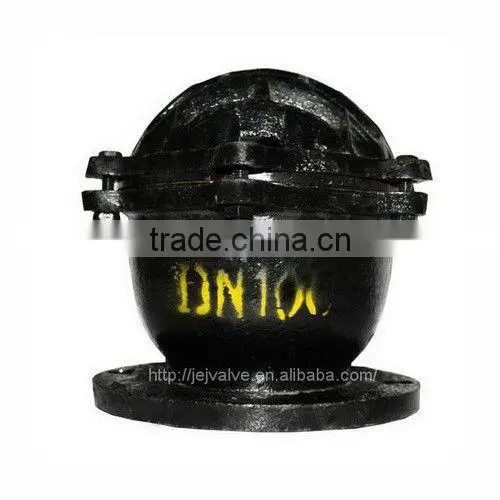

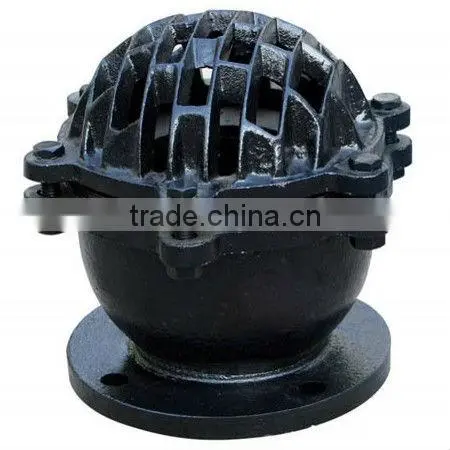

Flanged and threaded water foot valve
Overview for Flanged and threaded water foot valve
Pressure:2.5Mpa
Working Pressure:0.25Mpa
Temperature:Below 50 degree
Medium:Water
Body:Grey cast iron
Disc:Grey cast iron
Seat:EPDM
Adoptive Standard for Flanged and threaded water foot valve:
1.Valve Design:MSS SP-67/Class 150 for Casting steel,API609+ANSI B16.1 for DI/CI
2.Flange:ANSI B 16.1 Class 125,DIN250 1 PN10/16,BS4504 PN10/16
3.Face to face:BS EN558-1,the length in BS EN558-1 is the same in DIN3202/API609/MSS SP-67:2002
4.Pressure test conform to API598
Features of Flanged and threaded water foot valve

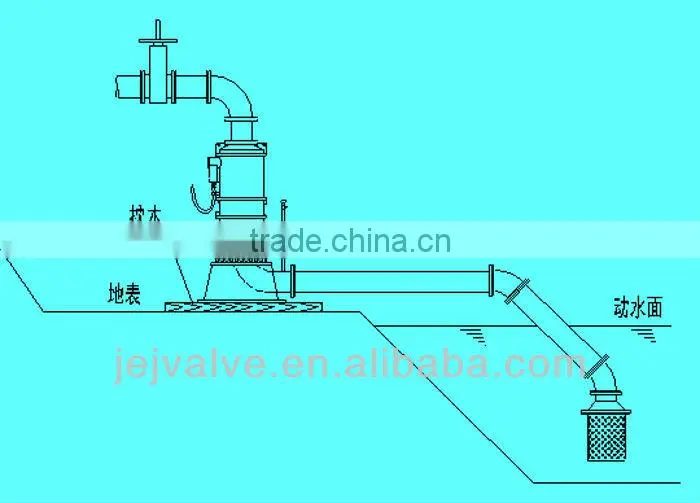

(1)Bottom valve is an energy-saving valve,which is usually installed in the pump suction at the bottom of the underwater to limit liquid go back, so liquid can only flow in without out.
(2)There are many intakes and strengthen tendons on the bonnet to prevent jam.Mainly used in pump pipe.

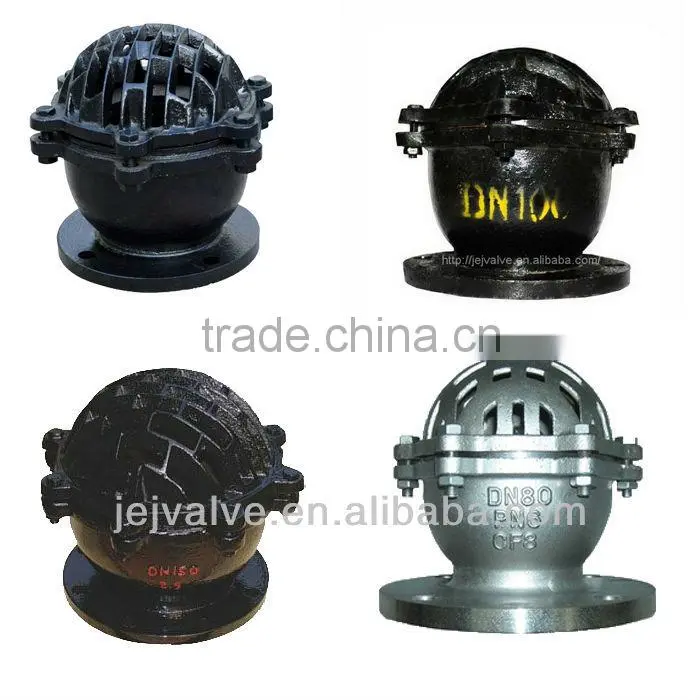

(3)The caliber has three types: single-lobe,bivalve and multijaw.

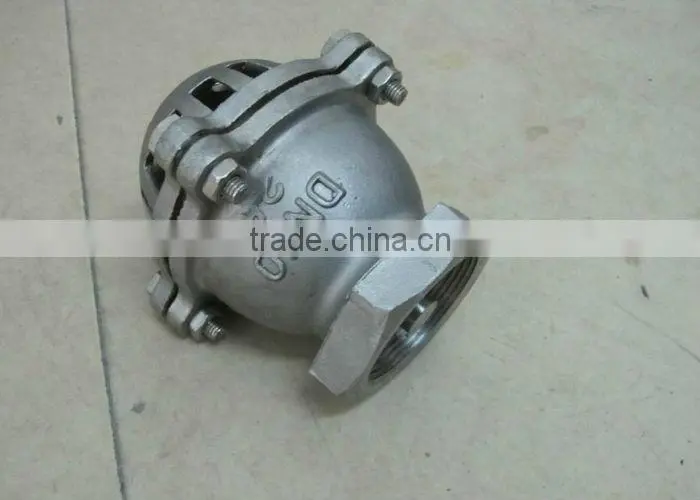

(4)The type of connection is flanged and threaded.

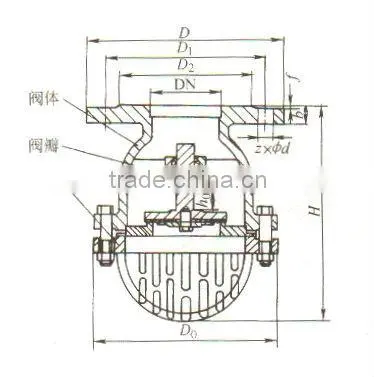

| Model | DN | D | D1 | D2 | b-f | z-¢d | D0 | H0 | H | Weight(kg) |
| H42X-2.5 | 50 | 140 | 110 | 90 | 16-3 | 4*¢14 | 132 | 17 | 135 | 3.8 |
| 65 | 160 | 130 | 110 | 16-3 | 4*¢14 | 167 | 25 | 175 | 6.5 | |
| 80 | 185 | 150 | 125 | 18-3 | 4*¢18 | 196 | 32 | 190 | 8.6 | |
| 100 | 205 | 170 | 145 | 18-3 | 8*¢18 | 243 | 40 | 225 | 12.8 | |
| 125 | 235 | 200 | 175 | 20-3 | 8*¢18 | 274 | 43 | 270 | 17.8 | |
| 150 | 260 | 225 | 200 | 20-3 | 8*¢18 | 311 | 58 | 303 | 23.9 | |
| 200 | 315 | 280 | 255 | 22-3 | 8*¢18 | 402 | 65 | 380 | 47.1 | |
| 250 | 370 | 335 | 310 | 24-3 | 12*¢18 | 458 | 84 | 500 | 70.5 | |
| 300 | 435 | 395 | 362 | 24-4 | 12*¢23 | 515 | 90 | 540 | 108 | |
| 350 | 485 | 445 | 412 | 26-4 | 12*¢23 | 600 | 130 | 600 | 158 | |
| H45X-2.5 | 500 | 640 | 600 | 568 | 30-4 | 16*¢23 | 720 | 823 | 193.6 | |
| H46X-2.5 | 400 | 535 | 495 | 462 | 28-4 | 16*¢23 | 650 | 710 | 320 |
Flanged and threaded water foot valve
| Product | Valve,Foot valve,Bottom valve,Flush bottom valves |
| Size | 40mm~300mm |
| Material | Cast iron |
| Standard | ANSI,ASME,DIN,API,ASTM |
| Application | water, oil,air ,steam,etc |
| Temperature | ≤ 200oC |
| Packing | Wooden case;wooden pallet;plastic bag |
| Others | Could do as customer's design and samples by different materials |
| Could be combined with other items in one order. |
1.We have more than 150 body moulds of butterfly vavle for you to choose!
2.Each vavle is taken for two times test pressure before leave factory!

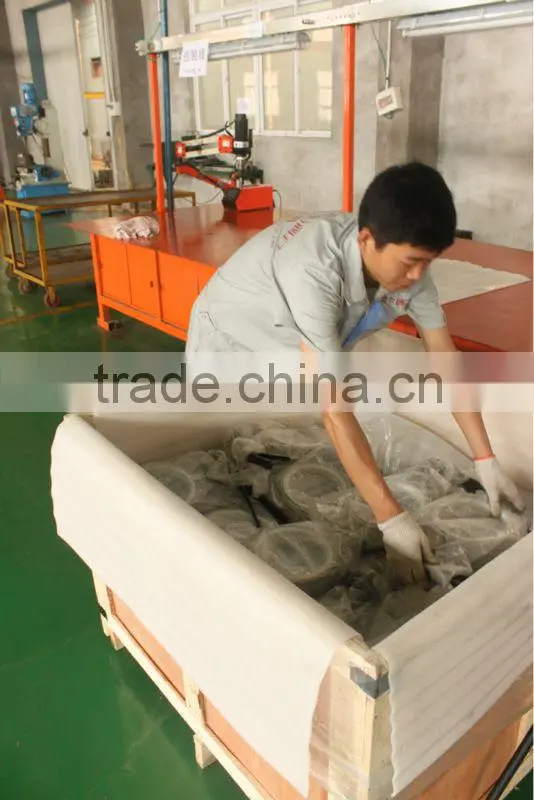

Seaworthy packing:
(1)Single Flanged and threaded water foot valve is packed withfoam plastic bag.
(2)Put sponge in each floor, 1.1*1.1*0.78m export plywood case;
(3)One 20' container can in bulk loaded on 24pcs plywood cases more or less.
(4)We can pack according to specific customer requests.
(5)Customers' logos are available on package of the Flanged and threaded water foot valve
We export our products to more than 50 countries. We have more than 4 years experience on Alibaba.
1.American: USA, Canada, Ecuador, Peru, Chile, Agentina, Brazil, Mexico, Uruguay, Afgentina, Colombia, Costa Rica ect.
2.Europe: Germany, Holland, France, Spain, Hungary, Russian, Ukraine, Malta, UK, Portugal ect.
3.Asia: Iran, Israel, U.A.E. Saudi Arabia, Thailand, Singapore, Philippine, Vietnam, ect.
4.Africa: Libya, Egpt, Morocco, Algeria. ect.

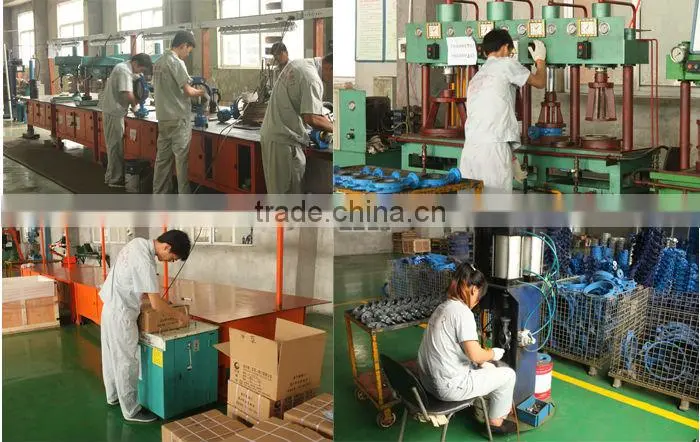

The new factory of JINERJIAN has fully opening in May.New factory is using 5S management style.
We are connecting huge numbers of customers from all corners of the world,provide more valuable services with clien's satisfaction.
To make a suit solution for the project , we need following information.
Flanged and threaded water foot valve
1.Design standard.
2.Connection standard .
3.Size.
4.Body material .
5.Trim (Material for inside parts).
6.Connection type.
7.Medium.
8.Temperature.
9.Ambient temperature range . Corrosion considerations.
10.Operation type.Application Descripetion.
11.Painting color.
12.Label content.
13.For OEM & ODM , We need your authorization letter.
Payment Terms:T/T L/C
Delivery Time:5-25 days
Price Terms:
FOB Tianjin
CIF specified port
Quality Control:
1.We have more than 150 body moulds of butterfly vavle for you to choose!
2.Each vavle is taken for two times test pressure before leave factory!
3.Every valve has 24 months guarantee period.
4.MOQ:
1 Piece,it is up to which size clients want.
...
