Home > Products > Other Items > chemical industry high quality manual operated wafer lug pn16 cast iron knife gate valve

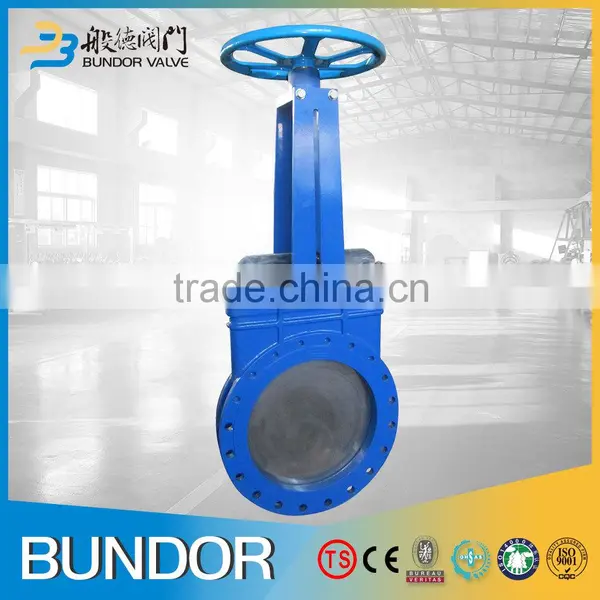

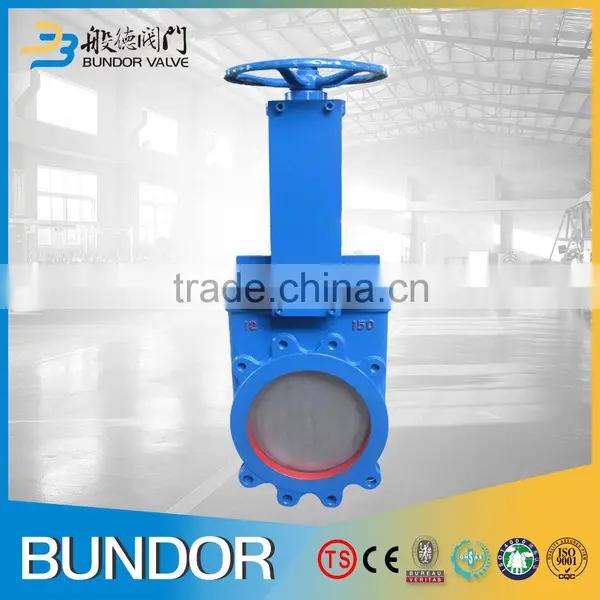

chemical industry high quality manual operated wafer lug pn16 cast iron knife gate valve
- 32000 Set / Sets per Month
- Ningbo/Qingdao/Tianjin/shanghai/guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Gate | |
| Pressure | Other, Medium Pressure, PN1.0Mpa-1.6Mpa | Power | Other, Manual, Hydraulic,Pneumatic,Manual,Solenoid,Elec | |
| Material | Casting | Temperature of Media | Normal Temperature | |
| Media | Other, water,acid,base,etc | Port Size | DN15-500mm | |
| Place of Origin | Tianjin, China | Model Number | Gate valve | |
| Brand Name | BUNDOR | Application | General |
Product Description
Wafer lug type knife stem gate valve
 | Name | Wafer lug type knife stem gate valve |
| Size Range | DN50-DN1000 | |
| Pressure | PN1.0 / 1.6mpa | |
| Stem nut | bronze | |
| Connection | Flange | |
| Body material | Stainless Steel,Cast iron,WCB | |
| Seat | EPDM/Metal/Viton/PTFE |
Product Description

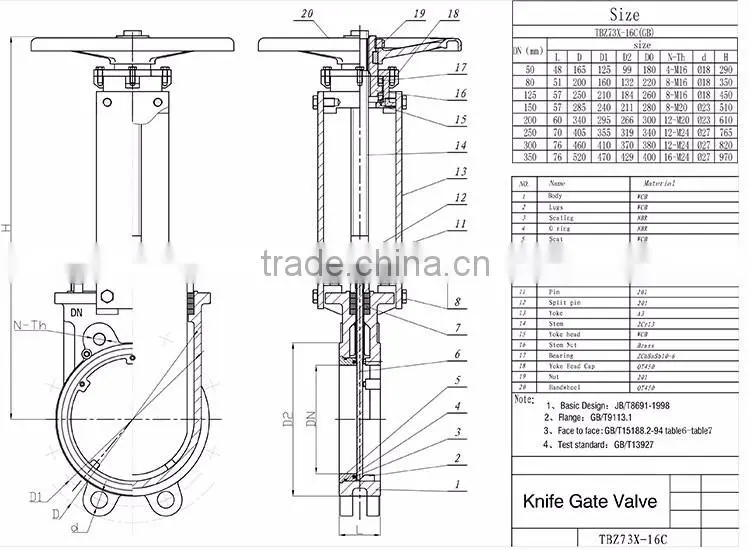

| DN | (L)PN1.0 | D | D1 | H | N-M |
| 50 | 40 | 125 | 95 | 425 | 4-M16 |
| 65 | 40 | 145 | 110 | 475 | 4-M16 |
| 80 | 50 | 160 | 127 | 505 | 8-M16 |
| 100 | 50 | 182 | 149 | 580 | 8-M16 |
| 125 | 50 | 210 | 174 | 655 | 8-M16 |
| 150 | 60 | 240 | 199 | 745 | 8-M20 |
| 200 | 60 | 295 | 250 | 890 | 8-M20 |
| 250 | 70 | 350 | 310 | 1125 | 12-M20 |
| 300 | 70 | 400 | 360 | 1325 | 12-M20 |
| 350 | 96 | 460 | 416 | 1480 | 16-M20 |
| 400 | 100 | 515 | 466 | 1645 | 16-M24 |
Products Introduction
| Size | Working pressure | Working condition |
| DN50-DN250 | 10bar | Pulp and paper Power plants Wastewater treatment plants Chemical plants Food and beverage Etc. |
| DN300-DN450 | 7bar | |
| DN500-DN600 | 4bar | |
| DN700-DN800 | 2bar |
Application
Paper, petrochemical, mining, drainage, food and other industries
Product Process
Packaging and transportation
Our history
Product Certification
1.We promise no leakage and breakage for valves. Every valve will test for 2 times test pressure before leave factory. We will replace the valve if there is quality problem within 24 months guarantee period.
2.We obtained ISO9001 quality system certification,ISO14001 certification,GB/T 28001 certification.We inspect the parts of valve carefully, 48 produce steps, try to supply you ideal valve.
3.We can supply different kinds of materials according to customers' requests,such as DI,cast steel,SS304,SS316 body and disc. EPDM,NBR,PTFE,Viton etc. Enough stock ensure fast delivery.
4.We have more than 150 types body moulds, which include ISO,DIN,ANSI,BS standard.
5.We own full-automatic machine paint line, match high-temperature baking house,which makes smooth paint and good appearance of valve.
Our Customers
In the 22 years, we have customers in many countries around the world.
