Detailed Product Description

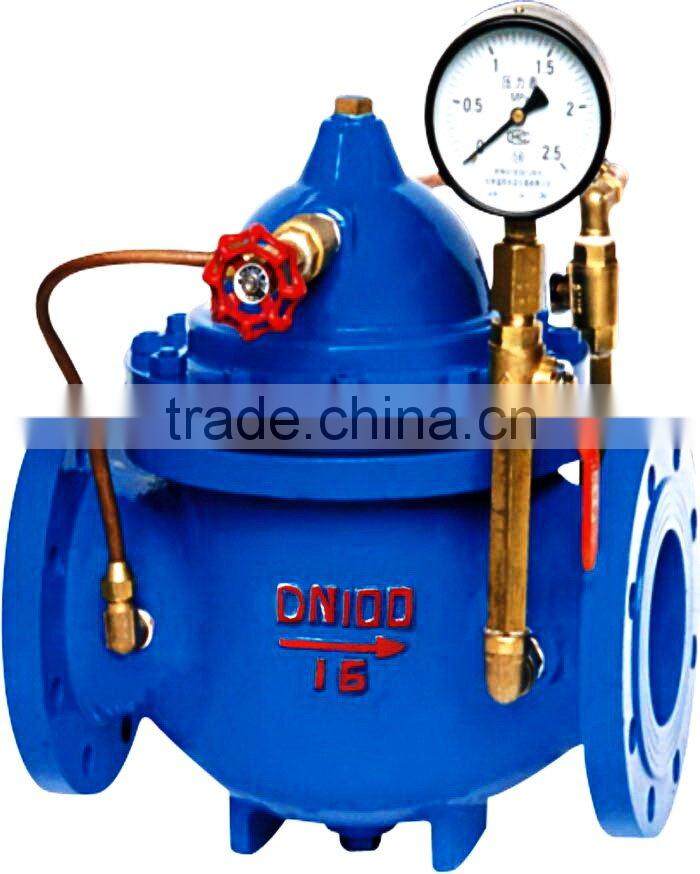

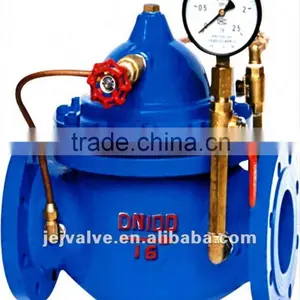

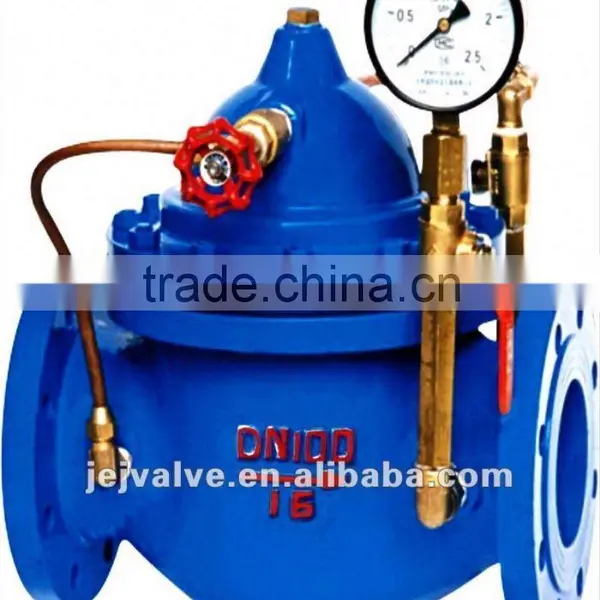

300X Electric Control Valve
1.16 Years OEM & ODM.
2.Best price and high quality.
3.Standard: ANSI,ASME,DIN,API
300X Electric Control Valve
The main valve is controlled by a float ball valve which locates on the top of tank or reservoir. The valve maintains the maximum water level of tank or reservoir continuously.Product Simple Specification.
100X diaphragm control ball valve is a multi-function htdaulic control valve, The water level can be controlled below a preset elevation.
This valve can be widely used in influent pipes of the pools and water tower in hig-rise buildings,municipal domestic water systems,fire fighting facilites, factories and mines. When adding a solenoid valve, then comprises another type (i,e,106X), which provides double control to water level,normally used at high overflow prevention project.Pressure Rating: PN10. PN16. PN25/Class150Size Range: DN20mm-DN800mm (3/4" - 32")
Main Technical Feature:
Nominal Pressure |
1.0MPA |
1.6MPA |
2.5MPA |
Test pressure of the shell |
1.5MPA |
2.4MPA |
3.75MPA |
Sealed test pressure |
1.1MPA |
1.76MPA |
2.75MPA |
Suitable temperature |
≤80°C |
||
Suitable medium |
water |
||
Main shape features:
(flanged connection size:PN10&PN16 as GB4216,PN25 as GB9113.4)
Nominal diameter DN(mm) |
Size(mm) |
|||||
L |
A1 |
A |
H1 |
H |
F |
|
20 |
150 |
130 |
325 |
179 |
212 |
116 |
25 |
160 |
130 |
325 |
179 |
212 |
116 |
32 |
180 |
130 |
325 |
179 |
212 |
116 |
40 |
200 |
140 |
335 |
210 |
265 |
168 |
50 |
203 |
140 |
335 |
210 |
265 |
168 |
65 |
213 |
140 |
335 |
215 |
310 |
180 |
80 |
241 |
145 |
345 |
245 |
350 |
210 |
100 |
272 |
155 |
365 |
305 |
460 |
284 |
125 |
292 |
165 |
385 |
365 |
520 |
310 |
150 |
333 |
180 |
410 |
415 |
570 |
370 |
200 |
400 |
205 |
465 |
510 |
840 |
463 |
250 |
480 |
225 |
505 |
560 |
890 |
525 |
300 |
550 |
245 |
545 |
658 |
1030 |
625 |
350 |
620 |
275 |
595 |
696 |
1090 |
705 |
400 |
685 |
285 |
625 |
735 |
1150 |
778 |
450 |
750 |
285 |
625 |
735 |
1150 |
778 |
500 |
810 |
410 |
780 |
750 |
1110 |
690 |
600 |
935 |
456 |
888 |
850 |
1286 |
785 |

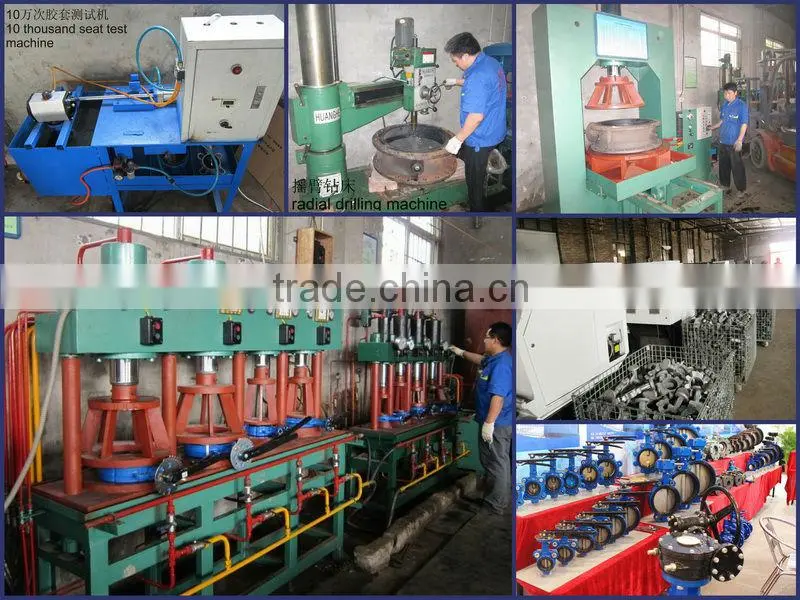

Assemble Process:
Customer visiting:
...
