6.5-0.7mm Carbon Steel Wire Drawing Machine Supplier's Choice

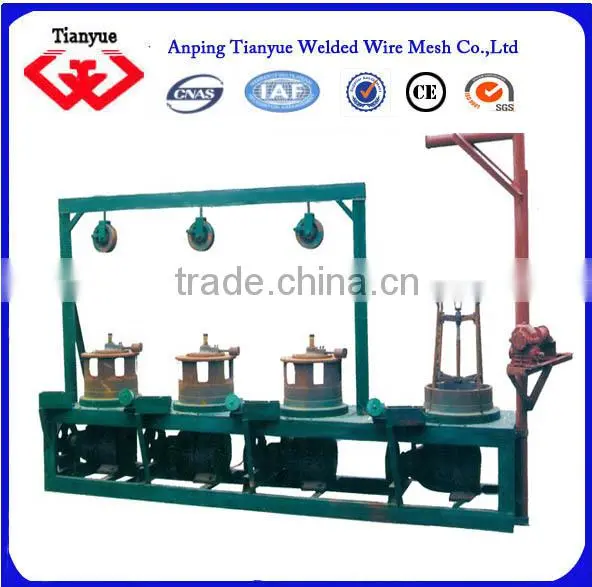

6.5-0.7mm Carbon Steel Wire Drawing Machine Supplier's Choice photo-1

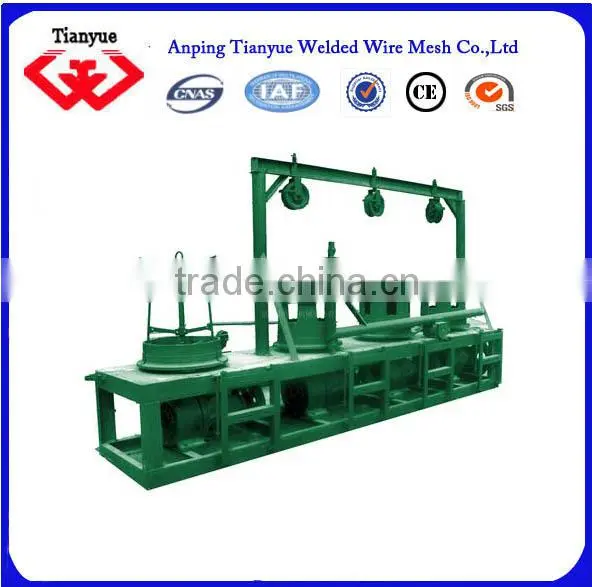

6.5-0.7mm Carbon Steel Wire Drawing Machine Supplier's Choice photo-2
6.5-0.7mm Carbon Steel Wire Drawing Machine Supplier's Choice photo-3
6.5-0.7mm Carbon Steel Wire Drawing Machine Supplier's Choice photo-4

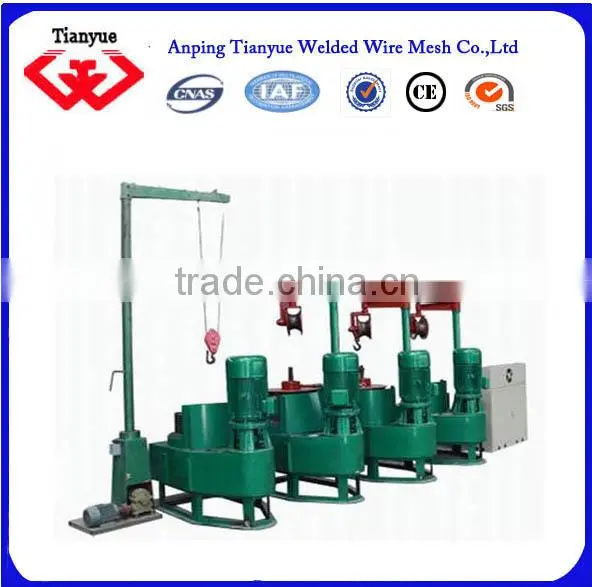

6.5-0.7mm Carbon Steel Wire Drawing Machine Supplier's Choice photo-5
6.5-0.7mm Carbon Steel Wire Drawing Machine Supplier's Choice photo-6
US$ 600 - 1,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Inlet Diameter:
8.0mm
Outlet Diameter:
0.2mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Inlet Diameter 8.0mm
Outlet Diameter 0.2mm
Place of Origin Hebei, China
Brand Name Tianyue
Model Number tyb-072
Voltage 380V
Power(W) 50
Dimension(L*W*H) 2500X1600X1200mm
Weight 2.5tons about
Certification ISO and SGS
Warranty 3years
After-sales Service Provided Engineers available to service machinery overseas



6.5-0.7mm carbon steel  wire drawing machine





The wire drawing machine can draw the wire rod into thin wire.
Have the following kinds:
Conecting jar wire drawing machine
Big Water Tank wire drawing machine
Little Water Tank wire drawing machine

Double wire drawing machine because slippery wheel tubing drawing machine in the drawing process steel wire will produce the reverse phenomenon, so in the sliding wheel drawbench develops on the basis of the double tubing drawing machine. The machine has the advantages of pulley wire drawing machines,and eliminate the steel wire drawing in in the process of reverse phenomenon, steel wire in the drum of cooling effectiveness on the better. Double tubing drawing machine and slide wheel wire drawing machines, pushes more, especially on, under the intermediate line between rolling guide, make steel wire through it produces 180.

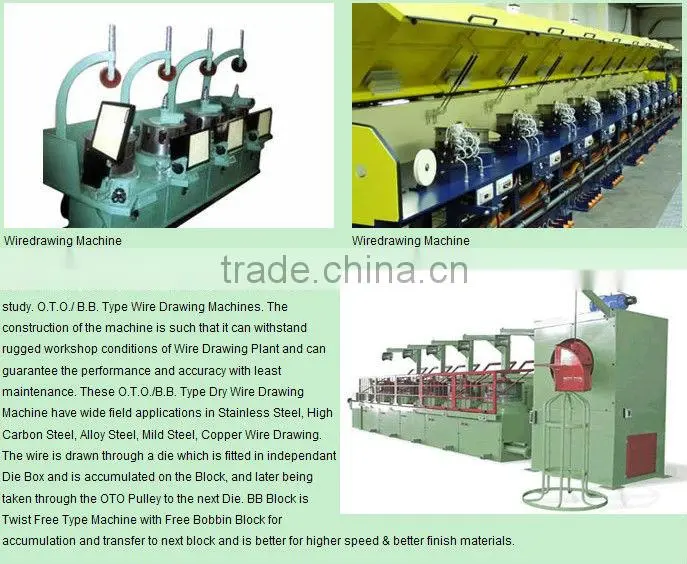

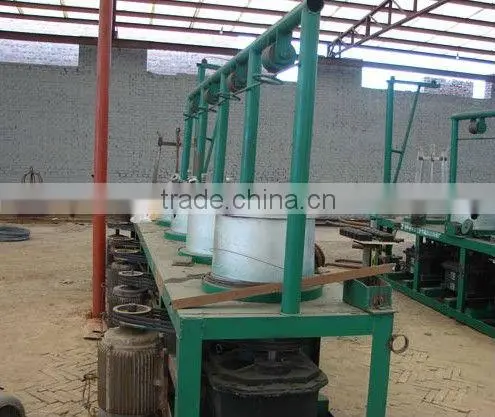

Factory Pictures

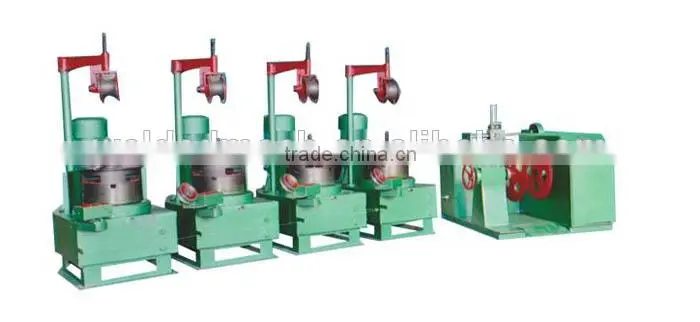

6.5-0.7mm carbon steel wire drawing machine6.5-0.7mm carbon steel wire drawing machine





Type:

LW 1 -6/550

Description:

LW1-6/550 wire drawing machines, drived by gears, are capable of drawing rod wires of high-,medium-,low-carbon steel,copper,aluminium,ect.and appliable to manufacturing industries such as wood screw,nail, conducting wirerope for electrician use,spring,etc. With electrical control,this kind of machine is safe in operation,low in noise,and high in effciency.

Specifications:

Specifications: Modle: LW1-6/550
Diameter of the spool(mm): 550
Drawing range(mm): 6.5-2.2
Speed of the spool(rpm):27-168
Power of a single machine(kw): 15-22
Weight (kg): 1400
Overall dimensions(LxWxH): 6050x1685x2100











wire drawing machine

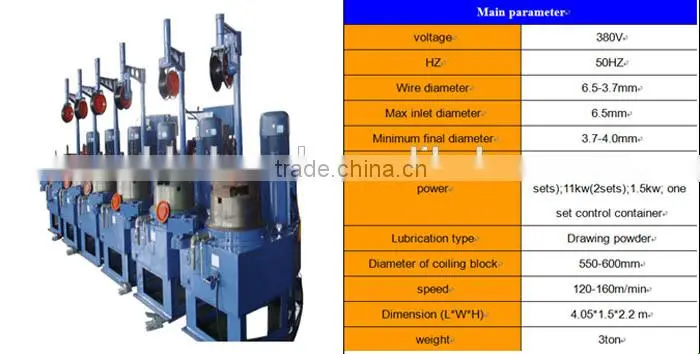

Technology Parameters from 6.5 to 3.7mm:

6.5-0.7mm carbon steel wire drawing machine

Technology Parameters from 3.7 to 2.0mm:

6.5-0.7mm carbon steel wire drawing machine


Technology Parameters from 2.0 to 0.7 mm:

6.5-0.7mm carbon steel wire drawing machine

6.5-0.7mm carbon steel wire drawing machine

6.5-0.7mm carbon steel wire drawing machine

6.5-0.7mm carbon steel wire drawing machine

6.5-0.7mm carbon steel wire drawing machine6.5-0.7mm carbon steel wire drawing machine
