Specifications
high lift hydraulic hand pallet truck1.Imported Winner hydraulic pump station
2.CE certificate

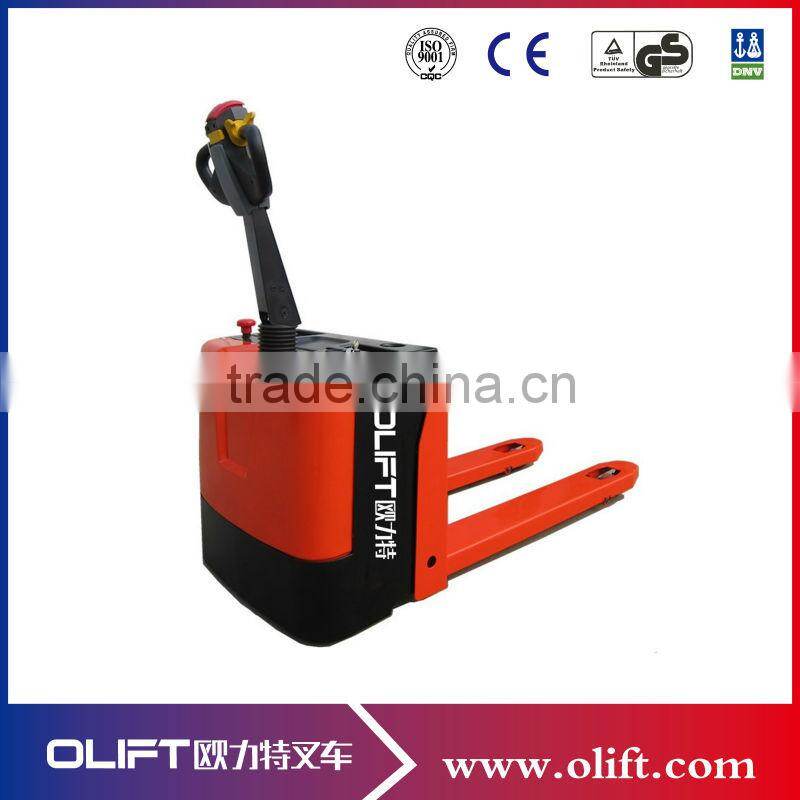

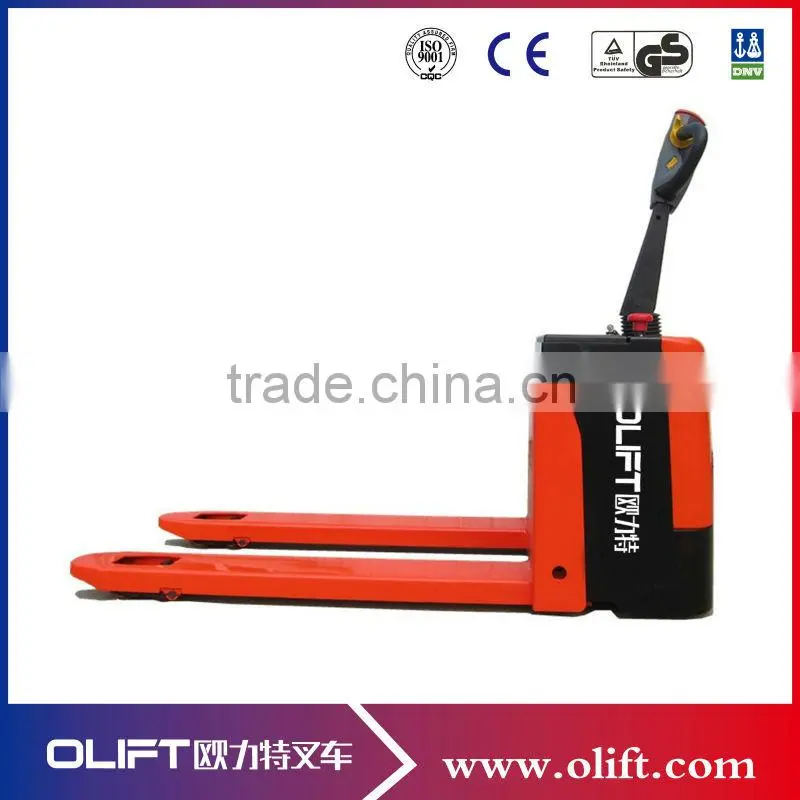

1.5ton new designed high quality mini full electric high lift hydraulic hand pallet truck
Introduction
Our 1.5 ton mini hydraulic full electric battery operated pallet jack price with CE certificate. has passed the CE certification and is mainly applied in petroleum, chemical engineering, pharmacy, light textile, military engineering, painting, coal, port, railroad, warehouse, bridge back, etc. for load and unload, pile and move.
1.This electric pallet truck adopts Curtis electric control systerm.
2.Electric pallet truck controlling system is programmable based on the imported advanced foreign technology.
3.electric pallet truck moving type: electric driving and climbing to a certain gradient.
4.Electric pallet truck rising height and load can be changed as required by the customers.
5.There are complete safety equipments and their technical performance has reached the advanced level as the international product.
specification
| Model | D15 | ||
| Operator type | Walkie | ||
| Load capacity | kg | 1500 | |
| Front Overhang | mm | 205 | |
| Wheel Base | mm | 1280 | |
| Wheel Material | PU | ||
| Driving Wheel | mm | Φ250×80 | |
| Balance Wheel | mm | Φ75×35 | |
| Front Wheel | mm | Φ78×70 | |
| Lifting height h3 | mm | 120 | |
| Max. Fork Height | mm | 195/205 | |
| Min Fork Height | mm | 85 | |
| Overall Length | mm | 1665 | |
| Overall width B | mm | 720 | |
| Fork Size | mm | 50/160/1200 | |
| Outside Fork Width b1 | mm | 540/630 | |
| Min. Ground Clearance m | mm | 30 | |
| Aisle Width | mm | 1865 | |
| Turning Radius | mm | 1465 | |
| Driving Speed(laden/unladen) | km/h | 3.5/4.0 | |
| Max. Gradeability | % | 5 | |
| Braking | Electromagnetic Brake | ||
| Drving Motor | kw | 0.7 | |
| Lifting Motor | kw | 0.8 | |
| Battery | V/Ah | 24/70,24/95 | |
| Battery Weight | kg | 35/51 | |
| Net Weight | kg | 270/285 | |
| Controller | Curtis 1212 | ||
1.One set of spare wheels will be sent free of charge with the electric reach stacker
2.Video shows how to repair vulnerable parts.
The workforce engages in intense research to develop functional, easy-to-use products that can provide the clients total value for their investment. The company emphasizes on total customer satisfaction, thus all equipment are manufactured to international standard and with impeccable quality.
In addition, it has in-house technical capabilities to design and manufacture the equipment. Strict quality management is applied throughout all stages of production process to ensure the precision and high performance of products.
Certificate:
