ETCR7300A Large Caliber Three Phase Power Tester

ETCR7300A Large Caliber Three Phase Power Tester thumbnail-1
ETCR7300A Large Caliber Three Phase Power Tester photo-1
US$ 347.9 - 347.9 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
ETCR
Model Number:
ETCR7300A
Contact Supplier Request Quote Chat Now
Qingdao Zhibohongyu Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name ETCR
Model Number ETCR7300A



Product Description

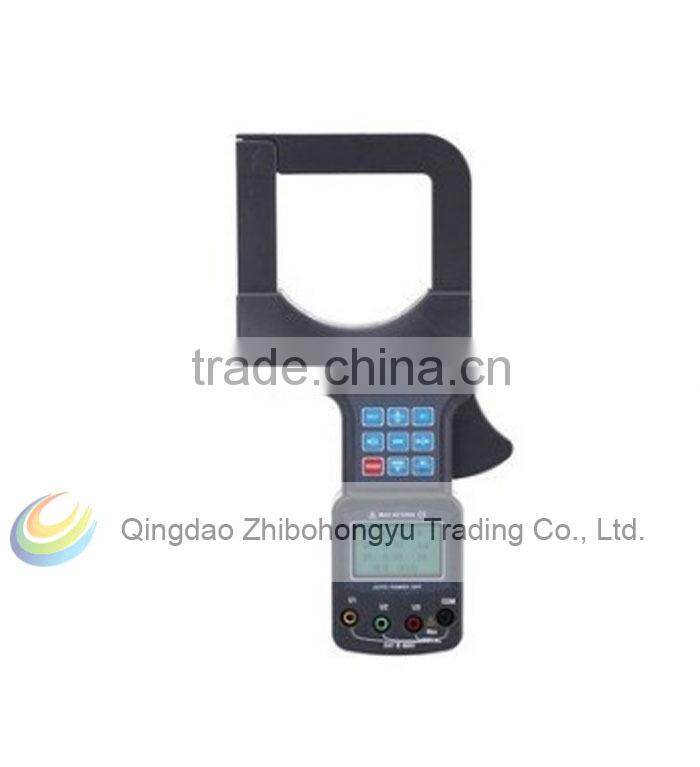

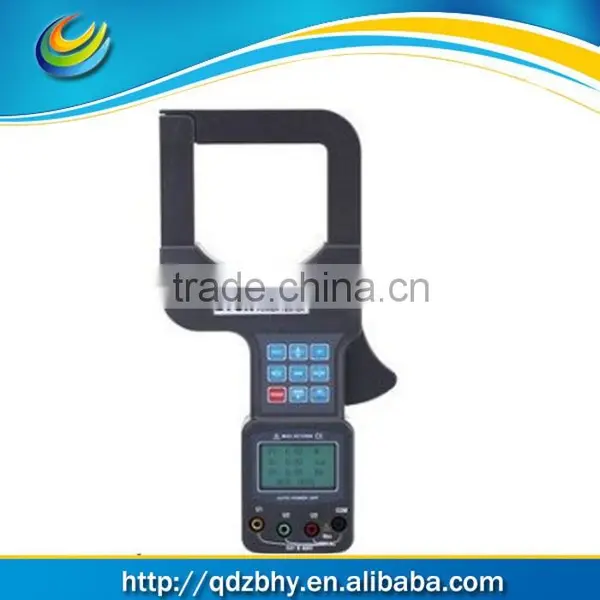

 ETCR7300A Large Caliber Three Phase Power Tester

       ETCR7300A Large Caliber Three Phase Power Tester is well designed and manufactured for measuring three phase AC voltage, current, leakage current, phase between current and voltage, phase between phase voltage, frequency, power energy, phase sequence, active power, reactive power, apparent power, power. It is a multifunctional, digital, intelligent tester. Its large caliber 80mm×80mm can clamp electric cable of 80mm diameter, or 96mm×4mm flat cable and steel earth wires. It has all the functions of Large Caliber Leakage Clamp Meter and Micro Power Clamp Meter. Besides, it also has this functions such as distinguish transformer wiring group, inductive and capacitive circuits, test second circuit and bus differential protection systems, read the phase relationship between CTs of the differential protection, check the meter wiring right, repair lines and equipment, etc. Provide operators with a safe, accurate and convenient tester.



       ETCR7300A Large Caliber Three Phase Power Tester’s clamp core is made of special alloy, adopt the latest magnetic shielding techniques, can almost shield the influence from external magnetic field, to ensure the high precision, high stability and high reliability of perennial uninterrupted measurement. The meter can store 200 sets of data, with RS232 interface, upload stored data to the computer through the system software, implementing online real-time monitoring, historical inquires, dynamic display. With the function of historical data read, export, print, and backlight, data hold, etc. It is a necessary tool for electrical safety testing.



Function
 Measure three phase AC voltage, leakage current, current, active power, reactive power, apparent power, power, phase between current and voltage, phase between phase voltage, frequency, power energy, phase sequence
Power
 6V DC(LR6×4 alkaline dry batteries, continuously working for 12 hours)
Test Mode
 Clamp CT, integral mode
Clamp Size
 80mm×80mm(can clamp electric cable of 80mm diameter, or 96mm×4mm flat cable and steel earth wires)
Current Range
 AC 0.0A-2000A, Resolution: 0.1A
Power Range
 AC 0.0KW-1200KW, Resolution: 0.1KW
Voltage Range
 AC 0-600V, Resolution: 0.01V
Frequency Range
 25Hz-100Hz, Resolution: 0.1Hz
Phase Range
 0.0°-360.0°, Resolution: 0.1°
Power Factor Range
 0.3-1.0(Capacitive or inductive) , Resolution: 0.001
Power Energy Range
 0.0000KWh-72000KWh, Resolution: 0.0001KWh
Measured Wire Position
 Measured wire at approximately the geometric center of the clamp
Data Storage
 200 sets,  “FULL the memory is full ” symbol indicate
RS232 Interface
 With RS232 interface, download data to computer for analysis and management
Communication Wire
 RS232 communication wire, 1.8m
Frequency
 50Hz ,60Hz automatic identification
Gear Shift
 Automatic shift
Sample Rate
 About 2 times/second
Line Voltage
 Below AC 600V line measurement
Display Mode
 LCD: 128dots×64dots; Display area: 43mm×29mm
Meter Size
 Length 275mm × Width 145mm × Height 40mm
Backlight
 Controlled by “ * " key
Data Hold
 "HOLD" symbol appears
Overflow
 "OL" symbol appears
Automatic Shutdown
 Automatically shutdown about 15 minutes after power on to reduce battery consumption
Voltage Detection
 Low battery symbol appears to remind the replacement of battery when the battery voltage drops below 5.2V.
Weight
 1kg(with batteries and accessories)
Working Current
 50mA with enabled backlight; 25mA with disabled backlight
Working Temperature and Humidity
 -10C-40C; 80%rh
Storage Temperature and Humidity
 -10C-60C; below 70%rh
Insulation strength
 AC 3700V/rms(between core and shell)
SafetySpecifications
 IEC1010-1, IEC1010-2-032, 2 class of pollution, CAT III(600V)
Accessories
 Meter: 1 PC; Test Wires: 4 PCS (Yellow, Green, Red, Black), RS23
