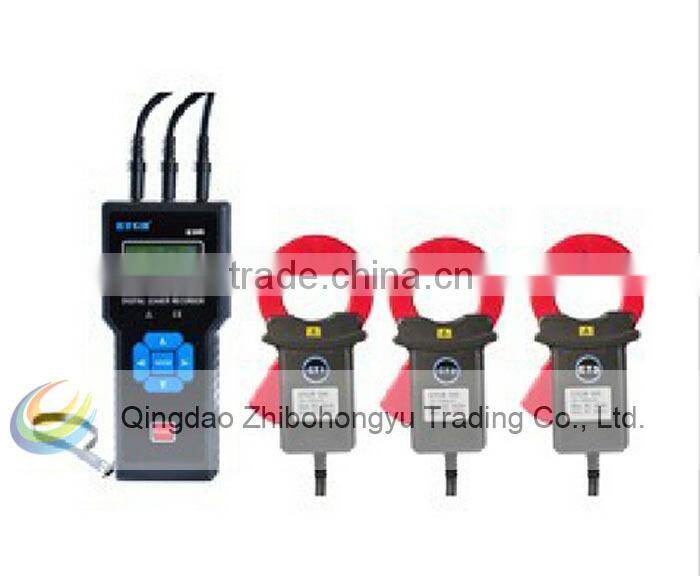

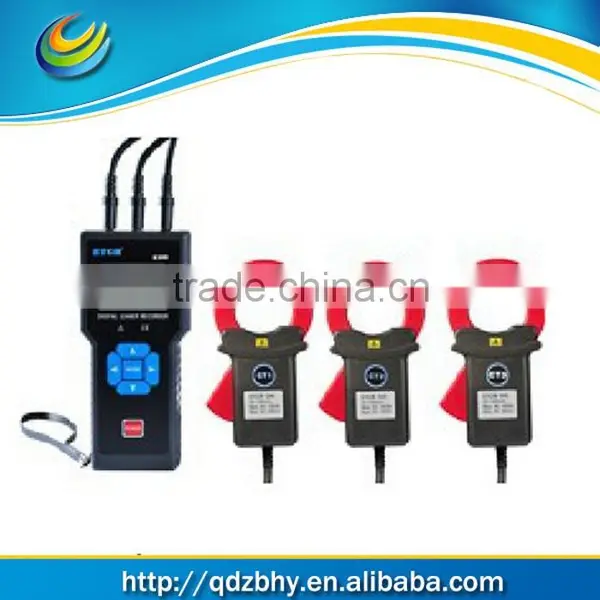

ETCR8300 Three-Channel Leakage/Current Monitoring Recorder

Name: ETCR8300 Three-Channel Leakage/Current Monitoring Recorder
Brand: ETCR
SKU: 100476301
Availability: InStock

ETCR8300 Three-Channel Leakage/Current Monitoring Recorder thumbnail-1

ETCR8300 Three-Channel Leakage/Current Monitoring Recorder photo-1

US$ 695.8 - 695.8 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

ETCR

Model Number:

ETCR8300

Contact Supplier Request Quote Chat Now

Qingdao Zhibohongyu Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name ETCR

Model Number ETCR8300

Product Description

Introduction

ETCR8300 series Three-Channel Current/Leakage Monitoring Recorder is well designed and manufactured for online measurement, monitoring and recording of Three- Channel AC leakage / current at the same time. It is composed of a tester, monitoring software, current clamp and communication cable, etc. This instrument has been widely applied the 380/220 Power system. It can provide a safety and convenience measurement with accurate results.

The instrument has a large LCD display with blue background and a large storage space. 3900 sets of data can be stored in the instrument. Three- channel current value can be display on the screen. In addition, the instrument can automatically store data at a interval, which is adjustable from 1 to 99 min.

Monitoring software provides online and real-time monitoring and historical data inquiry. With the software developed by our technical department, the users can read, inquire, store, generate and print a fitting curve and report.

The current clamp is made of a special alloy, adopts the latest CT technique and magnetic shielding technique and is not almost interfered by external magnetic field. This ensures high accuracy, high stability and high reliability of the values which are measured continuously

Technical Specification

Functions	Measuring AC leakage current and AC current of three channel, monitoring current in real-time manner, locating insulation faults and repairing electrical lines.
Power source	DC6V, alkaline battery LR03 1.5V×4
Testing Method	Split core type CT, true RMS
Range	0mA-200A
Resolution	1mA
Accuracy	±2%±5dgt
Clamp size	35mm×40mm
Instrument Dimension	Tester(L×W×H): 75mm ×170mm ×30mm Current clamp(L×W×H): 122mm ×70mm ×33mm
Mass	Tester: 750g (battery included) Current clamp: 170g × 3 PCS
LCD Dimension	Display field: 44mm×27mm
Shield Type	Type B: Double shielding
Sampling Rate	2 samples/s
Data storage	3900 sets (data loss does not occur after power failure or replacing the battery)
Time Setting	Recording internal adjustable from 1 to 60 min, If set to 0 min, the auto-store function is turned off
Recording Time	Continuously operate for about 10 days at the power-saving mode
Line Voltage	Line with a voltage up to AC600V
Overflow Display	The “OL” symbol is displayed when a measured value is beyond the measurement range
Battery. Voltage	A Low-Battery symbol is displayed and the user should replace the battery with a new one when the battery voltage drops to 4.6V to 4.8V. In this case, the measured values are still accurate.
Rated Power	about 5mA at the power-saving mode, maximum current consumption: 20mA
Lead Length	2 m
Temperature and Humidity	Working: -20C~50C:below 80%rh
Temperature and Humidity	Storage: -20C~50C:below 70%rh
Insulation Resistance	Higher than 100MΩ, 1000V
Safety Codes	IEC1010-1, IEC1010-2-032, Pollution Class 2, CAT III(600V), IEC61326(EMC standard)
Accessories	Tester: 1 PCS, Current clamp: 3PCS, Instrument bag: 1 PCS, RS232 Com-cable:1 PCS; Software Disk: 1 PCS
