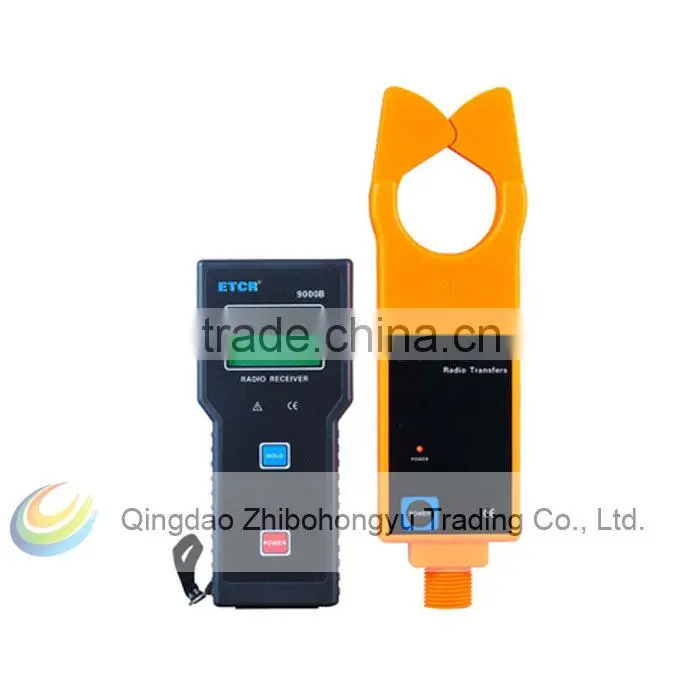

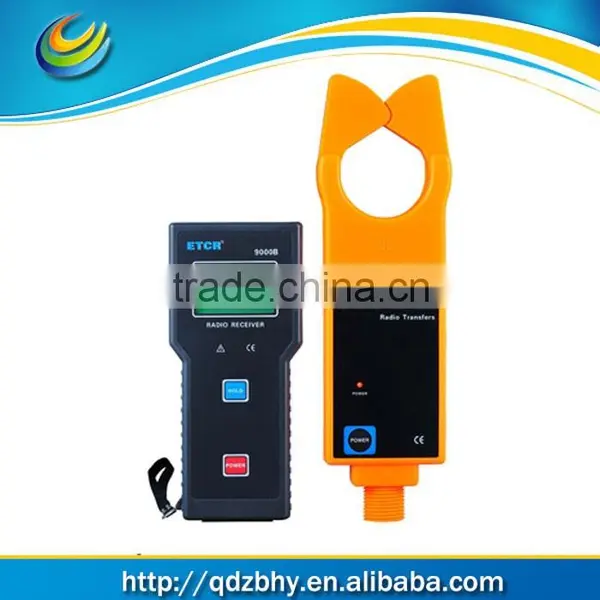

ETCR9000B Wireless High Voltage Clamp Meter

Function

High voltage AC current measurement, low voltage AC current, leakage current measurement, on-line AC current supervision.

Battery supply

DC6V alkaline dry battery AAA*4

Test mode

Clip on CT,integral mode

*Transmission Method

Radio Transmission, the maximum distance for direct transmission is about 30m.

Display dimensions

4 digital LCD display, backlight function, suitable for dark place.

LCD dimensions

47mm*28.5mm

Dimensions

Width *height* thickness76mm*255mm*31mm

Clamp mouth

φ48mm

Sampling Rate

Twice per second

Measuring Scope

0.1mA∼1000A50/60Hz automatic

Resolution

0.1mA

0.1mA∼1000A   automatic

Measuring accuracy23±5,80%RH below

0.1mA∼299mA:        ±1%±3dgt

300mA∼10.00A:        ±1.5%±5dgt

50.0A∼199.9A:         ±2%±5dgt

200A∼600A;           ±3%±5dgt

601A∼1000A:          ±4%±5dgt

Circuit Voltage

Test for the circuit below 23KV (operated with insulation rod)

Data memory

99 Groups, during storage, the symbol MEM gives indication, FULL mark will flash to indicate the memory has been full.

Peak Maintenance

The function of automatic capture and maintain the maximum average value, under general test mode, press HOLD button longer till PEAK light is bright, that is, start PEAK test function, also known as peak test.

Data Preservation

Under general test mode, press HOLD button to preserve data, HOLD symbol display.

Data look out

MR symbol means turn up and down to look out the data is allow.

Overflow display

Outrange overflow displaydisplayed by OL A symbol

*No signal Indicator

When the receiver has not received transmit signal, it will display no- -signal dynamically.

Auto Shut Down

In about 15 minutes after booting, the meter will shut down automatically, in order to decrease the battery consumption.

Battery voltage

When battery voltage reduced to 5V, battery low voltage symbol will filker to remind replacing battery

Meter quality

Tester: About 335g (Including battery), total quality of meter: about 2.5Kg (including insulation rod and battery.)

Working temperature and humidity

-10∼4080%Rh below

Storage temperature and humidity

-10∼6070%Rh below

Insulating bar dimensions

φ32mm ,1m/ Section5 Sections

Insulation strength

AC 40KV/rms (Between insulation rod and clamp core)

Structure

Anti-Dripping Type II

Package

Meter1 PCS Test Ring1 PCS Meter Box1 PCS
