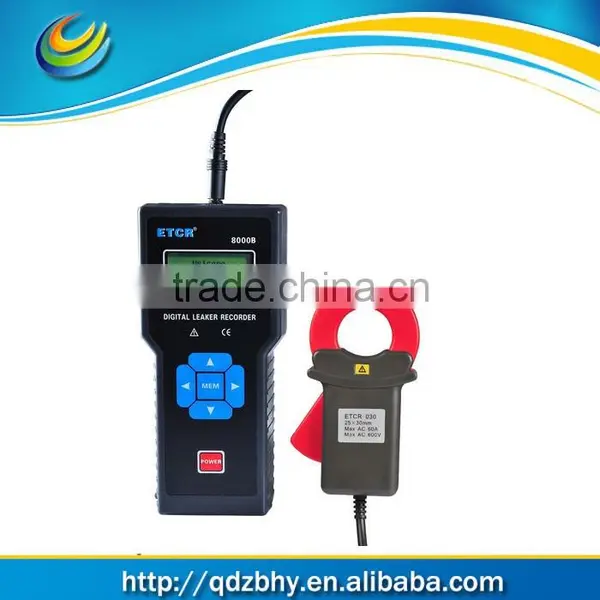

Help CenterETCR8000B Current/Leakage Monitoring Recorder
Related Products
-
ETCR8300 Three-Channel Leakage/Current Monitoring RecorderUS$ 695.8 - 695.8MOQ: 1 Set -
ETCR8300B Three-Channel Leakage Monitoring RecorderUS$ 769.04 - 769.04MOQ: 1 Set
-
ETCR9000B Wireless High Voltage Clamp MeterUS$ 1,080.32 - 1,080.32MOQ: 1 Set
-
ETCR9100C Wireless High Voltage Clamp AmmeterUS$ 1,300.05 - 1,300.05MOQ: 1 Set
-
ETCR9300 Low Voltage Current Transformation Ratio TesterUS$ 805.66 - 805.66MOQ: 1 Set
Product Characteristics:
Model: ETCR8000B
1.Function: Testing Leakage current, on-line monitoring, line maintenance
2.Measuring scope:0mA~20A
3.Accuracy:0.01mA
4.Data Storage: 4200 set
-------------------------------------------------------------------------------------------------------------------------------------------------
Technical Specification
Functions |
Measuring AC leakage current and AC current, monitoring current in real-time manner, locating insulation faults and repairing electrical lines. |
Power source |
DC6V, alkaline battery LR6 1.5V×4 |
Testing Method |
Splitcore type CT, true RMS |
Range |
0.00mA-20A |
Resolution |
0.01mA |
Accuracy |
±2%±5dgt |
Clamp size |
25mm×30mm |
Instrument Dimension |
Tester(L×W×H): 75mm ×170mm ×30mm |
Mass |
Tester: 240g (battery included) |
LCD Dimension |
Display field: 44mm×27mm |
Shield Type |
Type B: Double shielding |
Sampling Rate |
2 samples/s |
Data storage |
4200 sets (data loss does not occur after power failure or replacing the battery) |
Time Setting |
Recording internal adjustable from 1 to 60 min, If set to 0 min, the auto-store function is turned off |
Recording Time |
Continuously operate for about 10 days at the power-saving mode |
Line Voltage |
Line with a voltage up to AC600V |
Overflow Display |
A “ OL ” symbol is displayed when a measured value is beyond the measurement range |
Battery . Voltage |
A Low-Battery symbol is displayed and the user should replace the battery with a new one when the battery voltage drops to 4.6V to 4.8V. In this case, the measured values are still accurate. |
Rated Power |
about 5mA at the power-saving mode, maximum current consumption: 20mA |
Lead Length |
2 m |
Temperature and Humidity |
Working: -10ºC~40ºC;below 80%rh |
Storage: -10ºC~60ºC;below 70%rh | |
Insulation Resistance |
Higher than 100MΩ, 1000V |
Safety Codes |
IEC1010-1, IEC1010-2-032, Pollution Class 2, CAT III(600V), IEC61326(EMC standard) |
Accessories |
Tester: 1 PCS, Current clamp: 1 PCS, Instrument bag: 1 PCS, RS232 Com-cable:1 PCS; Software Disk: 1 PCS |
