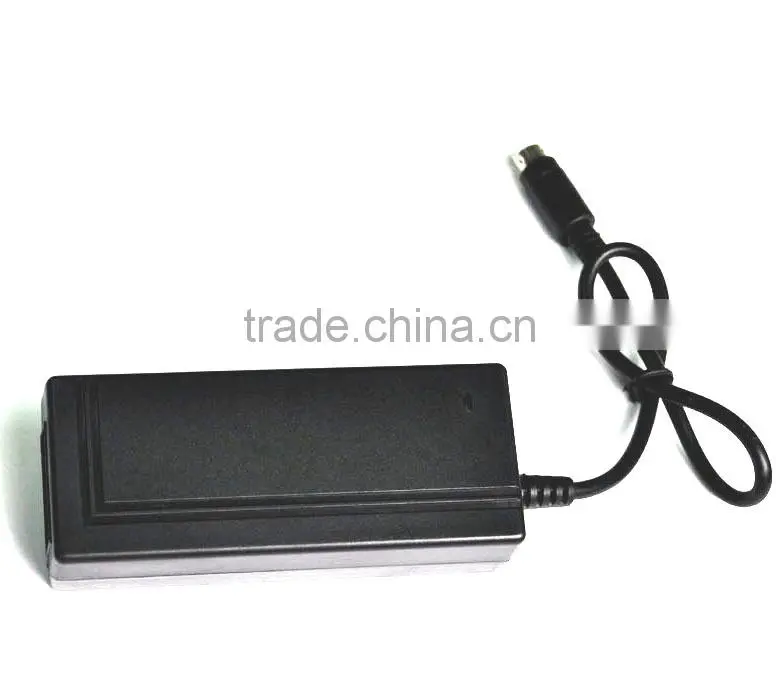

Scanner AC Adapter For RDM EC6000i, EC7000i, EC7500i

Scanner AC Adapter For RDM EC6000i, EC7000i, EC7500i thumbnail-1
Scanner AC Adapter For RDM EC6000i, EC7000i, EC7500i photo-1
US$ 1 - 10 MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HYLOOK
Model Number:
HL-W24-010
Contact Supplier Request Quote Chat Now
Shenzhen Hylook Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name HYLOOK
Model Number HL-W24-010
Output Type DC
Connection Desktop

Specifications

Scanner AC Adapter For RDM
1.Input:110-230V
2.Output:24V 1A
3.Use for: RDM EC6000i,EC7000i,EC7500i
EC4.MOQ:300pcs

Scanner AC Adapter For RDM EC6000i,  EC7000i,  EC7500i

Application:

  • Product Description

    This is a replacement power supply for check reader RDM 6001, 6011, 6014, 6104, 701x & EC6000i



    • This is for a RDM 6001, 6011, 6014, 6104, 701x & EC6000i.
    • New in box not a refurbished unit.
    • Comes with a 6' power cord.


    Technical Specifications
  • Output: 24V, 1A
  • This is for Generation 2 power supplies(has a 3 pin connector)

Electrical Characteristics:



  • AC input voltage ……100-240VAC
  • Output ………24V 1000MA
  • Input frequency ………47-63Hz
  • AC inrush current(max.) …….20A/230V
  • Line regulation (full load).......±0.5%
  • Peak- to -peak ripple …….<500MV
  • Working temperature………….0-35°C@100%,50°C@70% load
  • Setup rise hold up time………100ms,50ms,20ms@240VAC input
  • Strong made totally compatible part
  • Over voltage protection………115%-135% rated output voltage
  • Withstand voltage………I/P-O/P 3Kvac,1 minute
  • Over load protection ………115%-135%fold back current limiting, Auto-recovery
  • Input Condition ……… 100 to 240VAC 50/60 Hz 1A Max
  • Input Rated Voltage ……… 100 to 240VAC
  • Input Voltage Range ……… 90 to 264VAC
  • Input Rated Frequency ………50/60Hz
  • Input Frequency Range ……… 47Hz to 63Hz
  • Inrush Current ……… 60A Max
  • No Load Power Consumption ……… within 0.3W
  • Efficiency ……… 80% Min
  • Line Regulation……… ± 1%
  • Load Regulation ……… ± 5%
  • Over Shoot ………10% Max
  • Ripple And Noise……1% Max
  • Rising Time ……… 20ms Max At 115Vac
  • Output Hold up Time ……… 8ms Min At 230Vac
  • Protection ………  OCP OVP SCP OPP
  • Dielectric Withstand Voltage ……… 3.75KV 5mA 60s
  • Leakage Current ……… 0.25 mA At 230Vac



Environment:



  • Operating Temperature: 0~40°C ,full load , normal operation
  • Storage Temperature: -20~80°C with package
  • Relative Humidity: 5%(0°C) ~90%(40°C) RH ,72 hours, full load,



Package included:

  •      1x power supply for RDM 6001, 6011, 6014, 6104, 701x & EC6000i

  Scanner AC Adapter For RDM EC6000i, EC7000i, EC7500i



Scanner AC Adapter For RDM EC6000i, EC7000i, EC7500iScanner AC Adapter For RDM EC6000i, EC7000i, EC7500i

Specification:

  • Output Type:24V 1A
  • Input: 100-240V AC 50/60Hz
  • Cable length: about 120CM
  • Out put adaptor :special 3 pin connector
  • Condition: Brand New 100%
  • We have the Adapter for US/EU/UK/Australia
  • 100% burn in test 4 hours,assure the quality:
  • Packing





Advantages:



1.       AC input power suitable for the world



2.       Soft-start current can reduce the AC input impact efficiency



3.       With short-circuit and overload protection



4.       Compact size ,light weight



5.       100%full-load burning test





About our company:



Our company ,shenzhen hylook Electronic Co.,LTD,a factory specializing in power adapters, OEM and ODM service is available
