Specifications
16V 1.5A Power Adapter1.Input:110-240V
2.Output:16V 1.5A
3.For:credit card terminal Nurit 8320
4.Protection:OVP,SCP

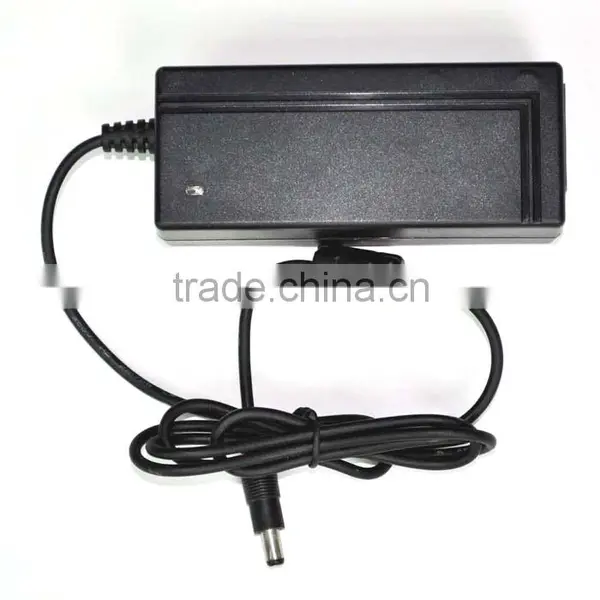

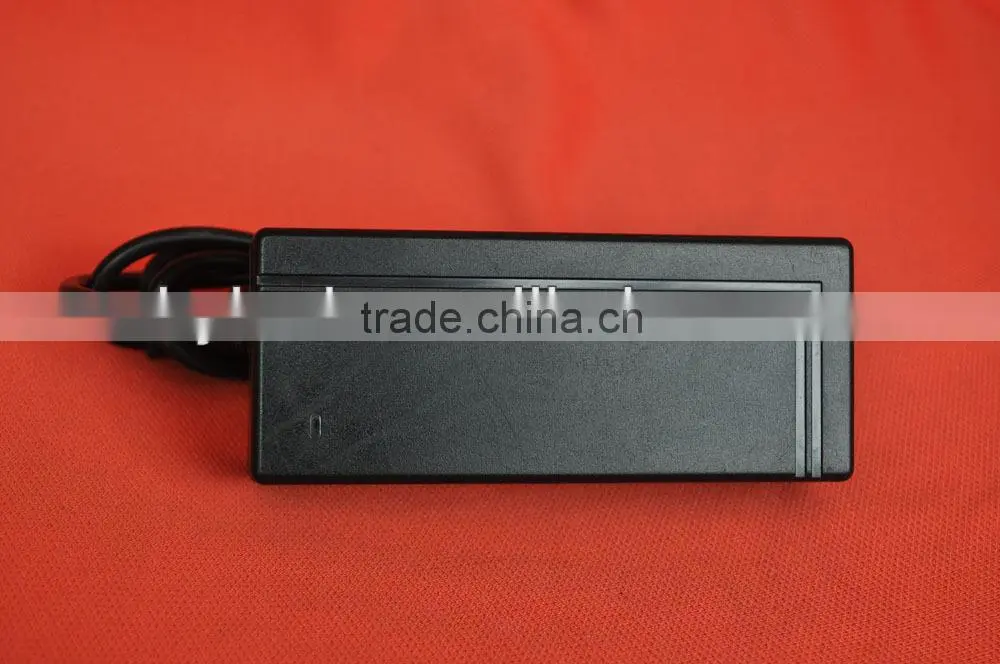

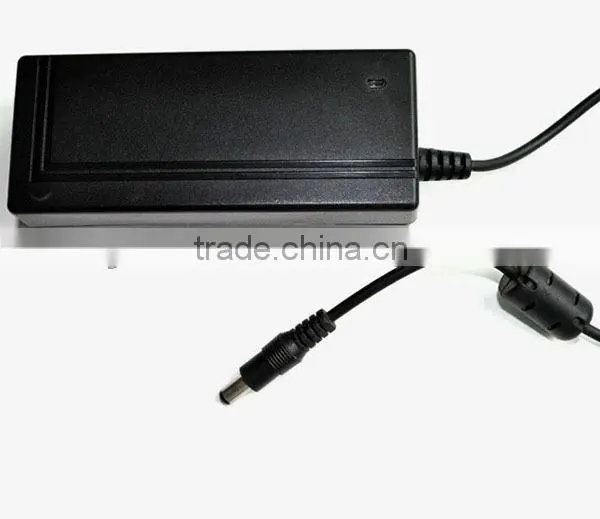

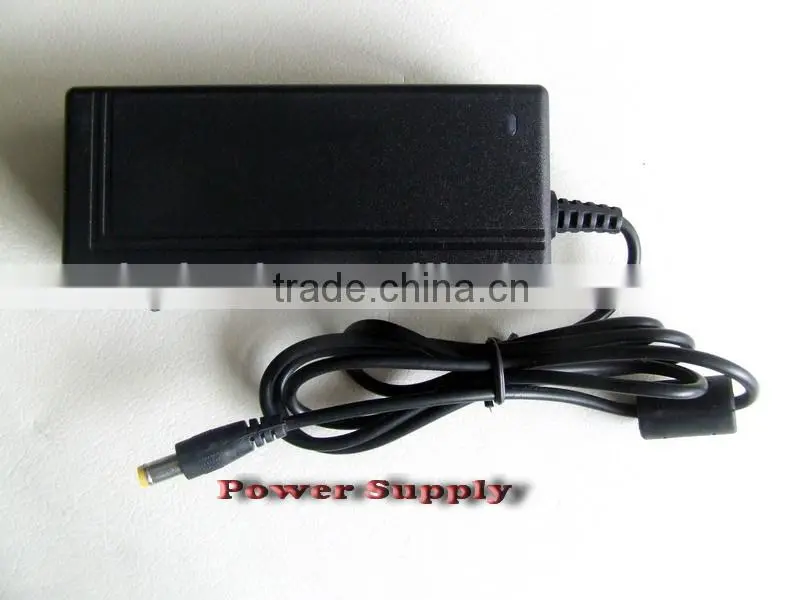

16V 1.5A Power Adapter for Verifone Nurit 8320
Application:
- For the credit card terminal , POS system AC ADAPTER 16V 1.5A for verifone/ LIPMAN TRF00058
Electrical Characteristics:
- AC input voltage ……100-240VAC
- Output ………16V 1.5A
- Input frequency ………47-63Hz
- AC inrush current(max.) …….20A/230V
- Line regulation (full load).......±0.5%
- Peak- to -peak ripple …….<500MV
- Working temperature………….0-35°C@100%,50°C@70% load
- Setup rise hold up time………100ms,50ms,20ms@240VAC input
- Strong made totally compatible part
- Over voltage protection………115%-135% rated output voltage
- Withstand voltage………I/P-O/P 3Kvac,1 minute
- Over load protection ………115%-135%fold back current limiting, Auto-recovery
- Input Condition ……… 100 to 240VAC 50/60 Hz 1A Max
- Input Rated Voltage ……… 100 to 240VAC
- Input Voltage Range ……… 90 to 264VAC
- Input Rated Frequency ………50/60Hz
- Input Frequency Range ……… 47Hz to 63Hz
- Inrush Current ……… 60A Max
- No Load Power Consumption ……… within 0.3W
- Efficiency ……… 80% Min
- Line Regulation……… ± 1%
- Load Regulation ……… ± 5%
- Over Shoot ………10% Max
- Ripple And Noise……1% Max
- Rising Time ……… 20ms Max At 115Vac
- Output Hold up Time ……… 8ms Min At 230Vac
- Protection ……… OCP OVP SCP OPP
- Dielectric Withstand Voltage ……… 3.75KV 5mA 60s
- Leakage Current ……… 0.25 mA At 230Vac
Environment:
- Operating Temperature: 0~40°C ,full load , normal operation
- Storage Temperature: -20~80°C with package
- Relative Humidity: 5%(0°C) ~90%(40°C) RH ,72 hours, full load,
Package included:
- 1x AC100-240V to DC AC ADAPTER 16V1.5A for LIPMAN TRF00058
Specification:
- Output Type:16V 1.5A
- Input: 100-240V AC 50/60Hz
- Cable length: about 120CM
- Condition: Brand New 100%
- We have the Adapter for US/EU/UK/Australia
- 100% burn in test 4 hours,assure the quality:
- Packing
Output Characteristic:
- Power Output:
Voltage |
Min. Load |
Max. Load |
Outpu range |
Output Power |
+16Vdc |
0.2A |
1.5A |
15.4-16.6V |
24W |
- Combined Load/Line Regulation:
Voltage |
Min. Load |
Max. Load |
Line Regulation |
Load Regulation |
+16Vdc |
0.2A |
1.5A |
±3% |
±5% |
Advantages:
1. AC input power suitable for the world
2. Soft-start current can reduce the AC input impact efficiency
3. With short-circuit and overload protection
4. Compact size ,light weight
5. 100%full-load burning test
12V Desktop type switching power supply part:
Part No |
Input vol |
Output vol |
Output cur |
Power |
Pcs/ctn |
Ctn Size(cm) |
HL-P12V-030 |
100~240 |
12±0.5V |
3A |
36W |
50 |
48x37.5x33 |
HL-P12V-040 |
100~240 |
12±0.5V |
4A |
48W |
50 |
48x37.5x33 |
|
HL-P12V-050 |
100~240 |
12±0.5V |
5A |
60W |
50 |
48x37.5x33 |
HL-P12V-060 |
100~240 |
12±0.5V |
6A |
72W |
50 |
48x37.5x33 |
HL-P12V-070 |
100~240 |
12±0.5V |
7A |
84W |
50 |
48x37.5x33 |
HL-P12V-080 |
100~240 |
12±0.5V |
8A |
96W |
50 |
48x37.5x33 |
HL-P12V-100 |
100~240 |
12±0.5V |
10A |
120W |
50 |
48x37.5x33 |
HL-P12V-125 |
100~240 |
12±0.5V |
12.5A |
150W |
50 |
48x37.5x33 |
About our company:
Our company ,shenzhen hylook electronic technology Co.,LTD,a factory specializing in power adapters, OEM and ODM service is available ,welcome to send us inquiries or visit our company website: Http://
