7.5v 1.6A AC Adapter for Ingenico ALI016 ALI1067

7.5v 1.6A AC Adapter for Ingenico ALI016 ALI1067 thumbnail-1
7.5v 1.6A AC Adapter for Ingenico ALI016 ALI1067 photo-1
US$ 1 - 10 MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HYLOOK
Model Number:
HL-W075-016
Contact Supplier Request Quote Chat Now
Shenzhen Hylook Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name HYLOOK
Model Number HL-W075-016
Output Type DC
Connection Plug In

Specifications

7.5v 1.6A AC Adapter for Ingenico ALI016
1.Input:110-240V
2.Output:7.5V 1.6A
3.For:ingenico Aqua 50
4.Protection:OVP,OLP,SCP

7.5v 1.6A AC Adapter for Ingenico ALI016 ALI1067



Electrical Characteristics:



  • AC input voltage ……100-240VAC
  • Output ………7.5V 1.6A
  • Input frequency ………47-63Hz
  • AC inrush current(max.) …….20A/230V
  • Line regulation (full load).......±0.5%
  • Peak- to -peak ripple …….<500MV
  • Working temperature………….0-35°C@100%,50°C@70% load
  • Setup rise hold up time………100ms,50ms,20ms@240VAC input
  • Strong made totally compatible part
  • Over voltage protection………115%-135% rated output voltage
  • Withstand voltage………I/P-O/P 3Kvac,1 minute
  • Over load protection ………115%-135%fold back current limiting, Auto-recovery
  • Input Condition ……… 100 to 240VAC 50/60 Hz 1A Max
  • Input Rated Voltage ……… 100 to 240VAC
  • Input Voltage Range ……… 90 to 264VAC
  • Input Rated Frequency ………50/60Hz
  • Input Frequency Range ……… 47Hz to 63Hz
  • Inrush Current ……… 60A Max
  • No Load Power Consumption ……… within 0.3W
  • Efficiency ……… 80% Min
  • Line Regulation……… ± 1%
  • Load Regulation ……… ± 5%
  • Over Shoot ………10% Max
  • Ripple And Noise……1% Max
  • Rising Time ……… 20ms Max At 115Vac
  • Output Hold up Time ……… 8ms Min At 230Vac
  • Protection ………  OCP OVP SCP OPP
  • Dielectric Withstand Voltage ……… 3.75KV 5mA 60s
  • Leakage Current ……… 0.25 mA At 230Vac



Environment:



  • Operating Temperature: 0~40°C ,full load , normal operation
  • Storage Temperature: -20~80°C with package
  • Relative Humidity: 5%(0°C) ~90%(40°C) RH ,72 hours, full load,



Description:



  • Model NO : ALI016 ALI0167 ALI0166
  • INPUT : AC 100-240V 50-60Hz
  • OUTPUT : 7.5V 1.6A
  • DC Plug Dimension : 5.5mm x 2.5mm
  • Connector :US/AU/AF/EU etc standard.
  • Note: Send the item with the Conversion Plug (fit for your country power outlet). Because of this item fits for the European power outlet, so we don't send the additional Conversion Plug for the buyer which use the Europena version outlet.
  • Please make sure the output and the connector is same as yours, if yes it will fit for.
  • Condition : New
  • Package included:
  • 1 x ingenico 7.5V 1.6A EU AC Power Adapter

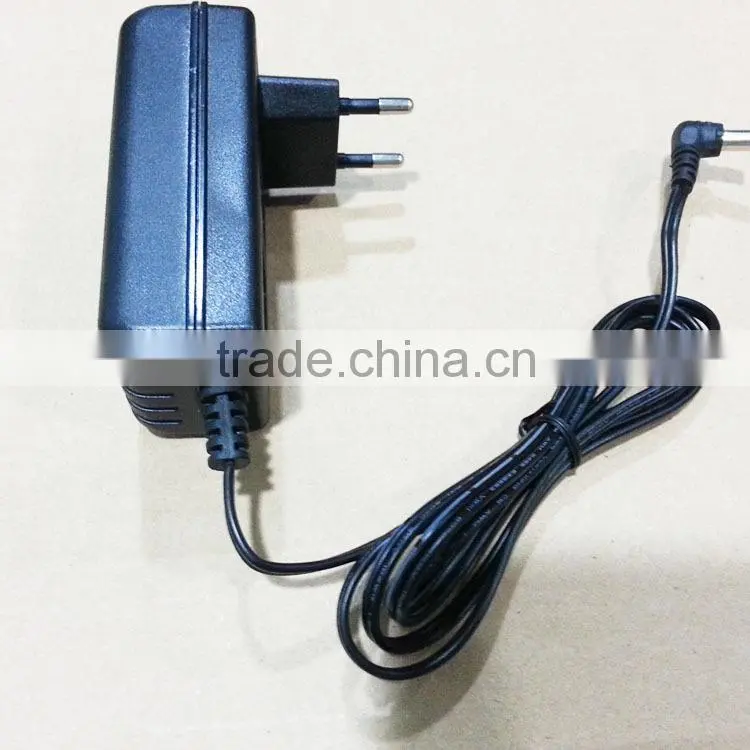

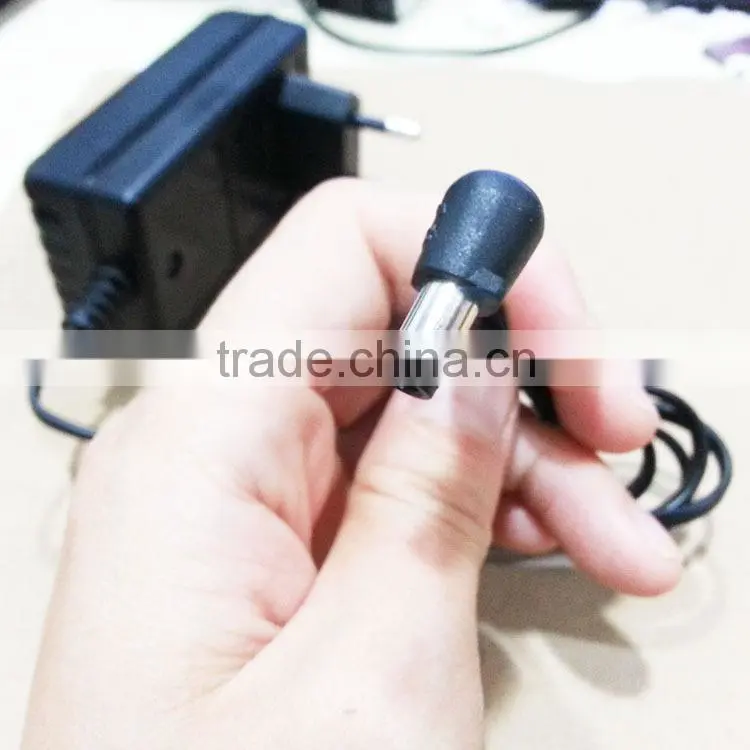

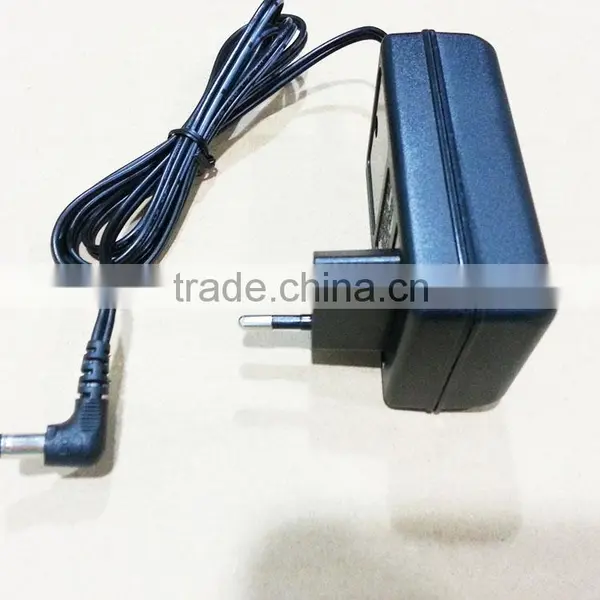

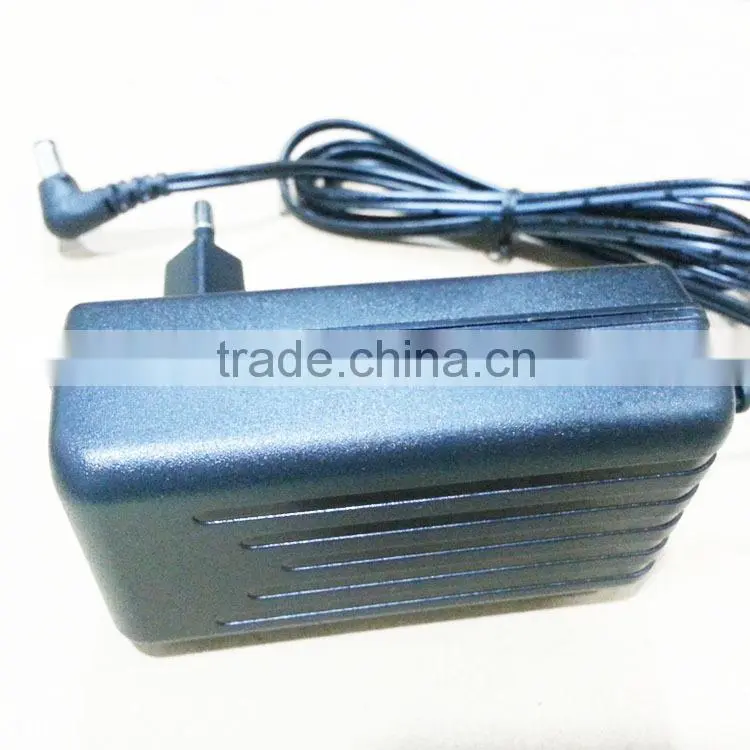

Photos:

 7.5v 1.6A AC Adapter for Ingenico ALI016 ALI10677.5v 1.6A AC Adapter for Ingenico ALI016 ALI10677.5v 1.6A AC Adapter for Ingenico ALI016 ALI1067



Specification:

  • Output Type:7.5V 1.6A
  • Input: 100-240V AC 50/60Hz
  • Cable length: about 120CM
  • Condition: Brand New 100%
  • We have the Adapter for US/EU/UK/Australia
  • 100% burn in test 4 hours,assure the quality:
  • Packing





Advantages:



1.       AC input power suitable for the world



2.       Soft-start current can reduce the AC input impact efficiency



3.       With short-circuit and overload protection



4.       Compact size ,light weight



5.       100%full-load burning test





About our company:



  • Our company ,shenzhen hylook Electronic Co.,LTD,a factory specializing in power adapters, OEM and ODM service is available
  • our ac dc adaptor are 100% burning in tested for 3 hours before delivery to control the defective to the lowest !
