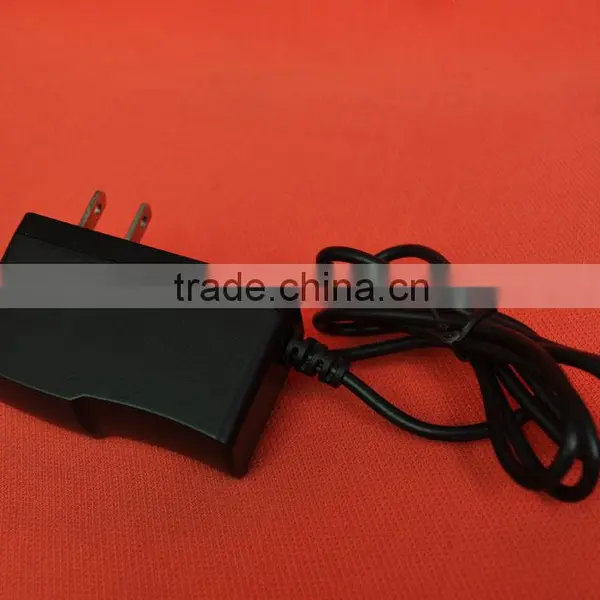

Power Adapter CPS11212-3X-R 12V For Verifone MX 870, MX 8x0, Omni 7000, 7000 LE, or 7100

Power Adapter CPS11212-3X-R 12V For Verifone MX 870, MX 8x0, Omni 7000, 7000 LE, or 7100 thumbnail-1
Power Adapter CPS11212-3X-R 12V For Verifone MX 870, MX 8x0, Omni 7000, 7000 LE, or 7100 photo-1
US$ 1 - 10 MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HYLOOK
Model Number:
HL-W12-010
Contact Supplier Request Quote Chat Now
Shenzhen Hylook Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name HYLOOK
Model Number HL-W12-010
Output Type DC
Connection Plug In

Specifications

Power adapter CPS11212-3A-R 12V For Verifone
1.Input:110-240V
2.Output:12V 1A
3.For:pos terminal
4.Protection:OVP,SCP,OLP

Power adapter CPS11212-3X-R 12V for Verifone MX 870, MX 8x0, Omni 7000, 7000 LE, or 7100



For Verifone CPS11212-3A-R  Power Supply







1.Scope:





Specifications:

Input Voltage:

AC 100 -240V, 50Hz

Input Power Plug:

UK,US,EU,Au etc available

Input / Output Power Cord Length

1.2m / 1.2m

Output Voltage:

DC 12V

Output Current:

1A (1000mA)

Output Voltage Type:

Fixed

Output Power (Max):

12W

Regulated Output:

Yes

Polarity:

Centre Positive

Reversible Polarity:

No

Number of Tips or Sockets:

1

use for

credit card terminal  Verifone MX 870, MX 8x0, Omni 7000, 7000 LE, or 7100

Switched Mode Supply:

Yes

Efficiency:

75%











2.Input Characteristics :

Input Voltage:

Rated Voltage:100-240Vac

Variation Range:90-264Vac

Input Frequency:

Rated Frequency:50/60Hz.

Variation Frequency:47-63Hz

Input Current:0.5Arms At any input voltage and rated. DC output rated load.

Inrush Current: 30 Amps Max. Cold start at 240Vac input, with rated load and 25°C ambient.

AC Leakage Current: 0.25 mA Max. At 240Vac input.



3. Output Characteristics:

3.1 Power Output:

Voltage Min. Load Max. Load Peak Output Power

+12Vdc 0.2A 1A 24W

3.2 Combined Load/Line Regulation:

Voltage Min. Load Max. Load Line Regulation Load Regulation

+12Vdc 0.2A 1A ±3% ±5%

3.3 Ripple And Noise:

Under rated voltage and nominal load,The ripple and noise are as follows when measure with

Max. Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.

Voltage Ripple And Noise(Max.)

+12Vdc 150mVp-p

3.4 Turn On Delay Time:

2 second Max. At 115Vac input and output Max. Load.

3.5 Rise Time:

40mS Max. At 115Vac input and output Max. Load.

3.6 Hold Up Time:

5mS Min. At 115Vac input and output Max. Load.

3.7 Efficiency:

75% Min. At 100Vac input and output Max. Load.

75% Min. At 240Vac input and output Max. Load.

3.8 Overshoot:

15% Max. When power supply at turn on or turn off.



4. PROTECTION REQUIREMENT:

4.1 Short Circuit Protection:

The power supply will be auto recovered when short circuit faults remove.

4.2 Over current Protection:

The power supply will be auto recovered when over current faults remove.

4.3 Over Voltage Protection

The power supply will not be auto recovered when faults remove 110%-150%.



5. ENVIRONMENTAL REQUIREMET:



5.1 Operating Temperature:

0°C to 40°C,Full load, Normal operation.



5.2 Storage Temperature:

-20°C to 85°C

With package



5.3 Relative Humidity:

5%(0°C)~90%(40°C)RH,72Hrs,Full load, Normal operating







Package included:

  •      1x AC100-240V to  Plug in 12v 1a adapter

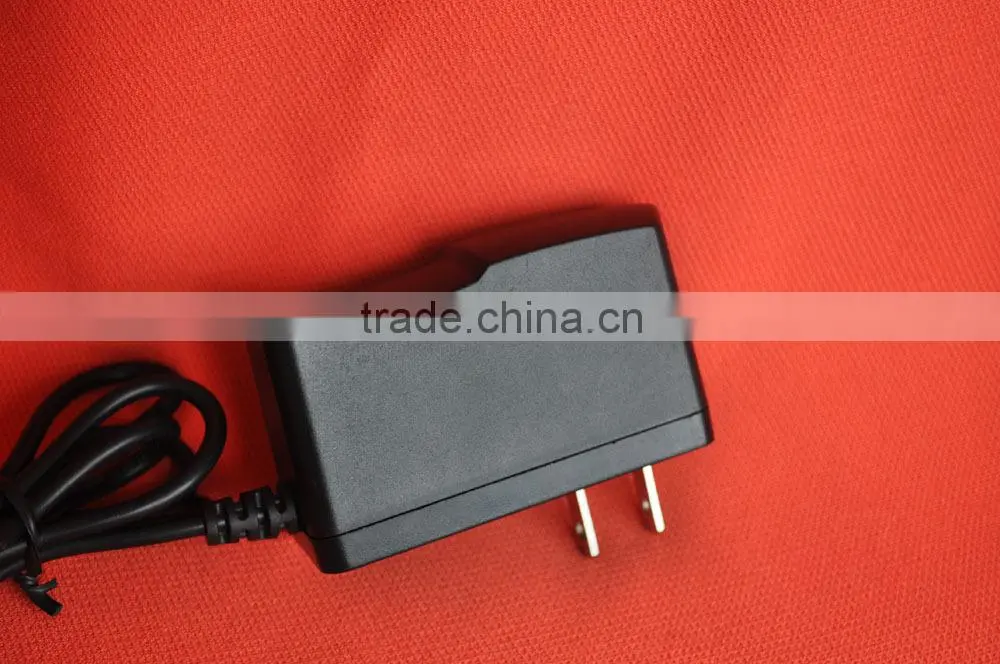

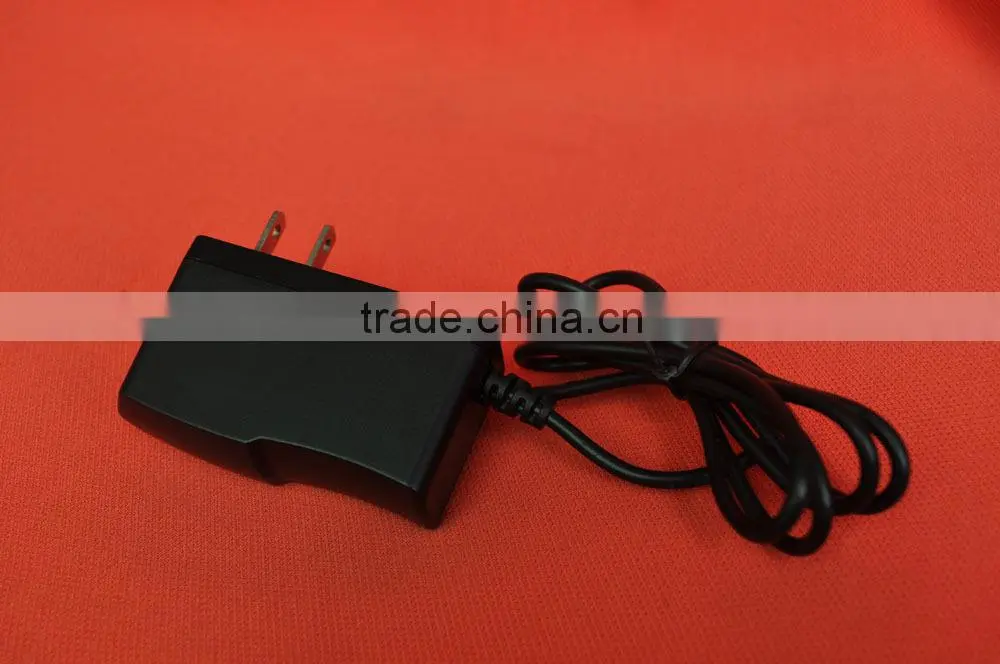

Power adapter CPS11212-3X-R 12V For Verifone MX 870, MX 8x0, Omni 7000, 7000 LE, or 7100Power adapter CPS11212-3X-R 12V For Verifone MX 870, MX 8x0, Omni 7000, 7000 LE, or 7100Power adapter CPS11212-3X-R 12V For Verifone MX 870, MX 8x0, Omni 7000, 7000 LE, or 7100Power adapter CPS11212-3X-R 12V For Verifone MX 870, MX 8x0, Omni 7000, 7000 LE, or 7100

DC wire:







Specification:

  • Output Type:12V 1A
  • Input: 100-240V AC 50/60Hz
  • Cable length: about 120CM
  • Out put adaptor : 100% same with original adapter's dc tip
  • Condition: Brand New 100%
  • We have the Adapter for US/EU/UK/Australia
  • 100% burn in test 4 hours,assure the quality:
  • Packing





Advantages:



1.       AC input power suitable for the world



2.       Soft-start current can reduce the AC input impact efficiency



3.       With short-circuit and overload protection



4.       Compact size ,light weight



5.       100%full-load burning test





About our company:



Our company ,shenzhen hylook Electronic Co.,LTD,a factory specializing in power adapters, OEM and ODM service is available
