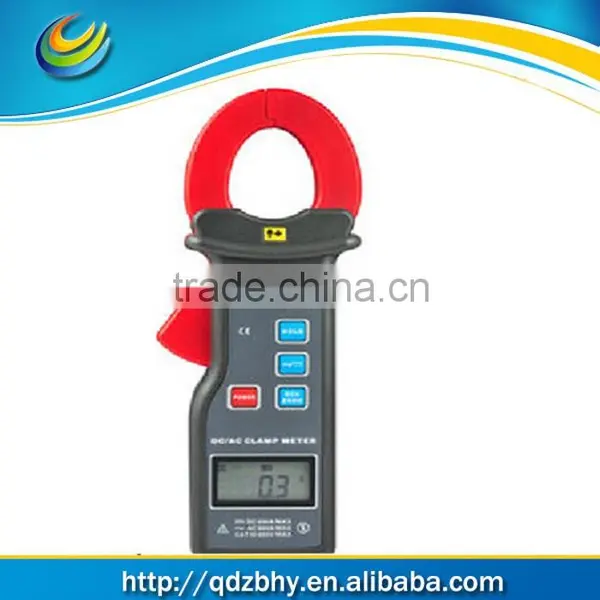

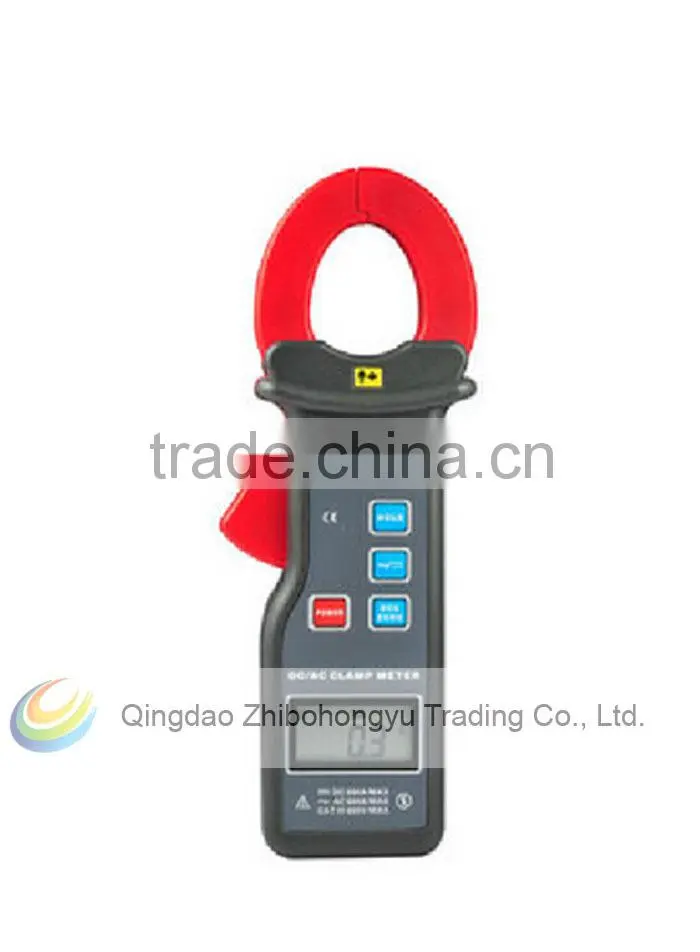

ETCR6100 High Accuracy Clamp Leaker Meter AC/DC:0.0A~1000A
US$ 142.82 - 142.82
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
ETCR
Model Number:
ETCR6100
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ETCR6300 High Sensitivity Leakage Clamp MetersUS$ 175.78 - 175.78MOQ: 1 Set -
ETCR6500 Leakage Clamp MeterUS$ 175.78 - 175.78MOQ: 1 Set
-
ETCR6600 High Accuracy Clamp Leaker ,AC 0.0mA-600AUS$ 175.78 - 175.78MOQ: 1 Set
-
ETCR6800 High Accuracy Clamp LeakerUS$ 284.83 - 284.83MOQ: 1 Set
-
ETCR6800D AC/DC Leakage Current Clamp MeterUS$ 216.06 - 216.06MOQ: 1 Set
Place of Origin
China
Brand Name
ETCR
Model Number
ETCR6100
Dimensions
175mm*70mm*38mm
Product Description
Introduction
High Accuracy Clamp Leaker is specially designed for measurement of AC/DC current; by adopting up-to-date CT technology and digital integration technology. There is no exposed metal on clamp head, non-contact measurement, to ensure safe operation. It is a product with relatively small size, high accuracy and perfect function compared with similar leakers in the world. The leaker could be widely applied in those fields as electricity, communications, meteorology, railroad, oilfield, construction, measurement, scientific & research teaching institutes, industrial and mining establishments. it is an essential tool for electrician safety testing.
This High Accuracy Clamp Leaker have those functions as peaking holding, data holding and data storage. It obtains one RS232 interface, communication cable and monitoring software. When connected to PC, we can realize the functions such as on-line monitoring, historical data inquiry, active curve drawing, indication of max, min and average value, alarm setting and indication, saving to documents and printing .
Technical Specification
| Function | AC/DC leakage measurement, AC/DC current measurement, On-line AC/DC current measurement |
| Power Supply | 6F22,9V |
| Process Type | Clamp CT, noncontact mode. |
| Display Type | 4 Digits LCD |
| Clamp Size | 25mm×30mm |
| Meter Dimension | LWH: 175mm×70mm×38mm |
| LCD Dimension | 35mm×21.5mm; Display Dimension: 32mm×15mm |
| Sampling Rate | 2 Times/Second |
| Frequency | 50Hz, 60Hz Automatic identification |
| Shifting | Automatic Shift |
| Range | AC/DC:0.0A~1000A |
| Resolution | 0.1A |
| Accuracy | ±2%±3dgt (23c±3c, below 70%RH) |
| Line voltage | Below AC 600V |
| RS232 Interface | With RS232 interface, Data stored in the memory can be uploaded to the computer, with software monitoring |
| Data Memory | 99 sets, “FULL” Blinking when memory is full |
| Peak Maintaining | Peak value capture hold function, press HOLD without Release to display peak value |
| Reading Hold | Reading hold function: “DH” symbol display |
| Overflow display | Range overflow function: “OL” symbol display |
| Automatic Shutdown | 5 minutes after the boot |
| Battery Detection | When battery voltage is lower than 7.2V, low battery symbol will shown to remind battery replacement. |
| Meter Weight | 180g (With battery) |
| Rated Power | 10mW |
| Working Temperature and Humidity | 0C~50C; below 80%rh |
| Max error refer to environment | -10C~0C,40C~50C,Error will increase max to 1%rdg. |
| Storage Temperature and Humidity | -10C~60C below 70%rh |
| Insulation Strength | AC2kV/rms (between core and box) |
| Safety Provisions | IEC1010-1, IEC1010-2-032, Pollution level 2, CAT III(600V) |
| Accessories | Meter: 1 piece, RS232 Com-cable:1 piece; Software Disk: 1 piece; Battery (6F22 9V): 1 piece |
