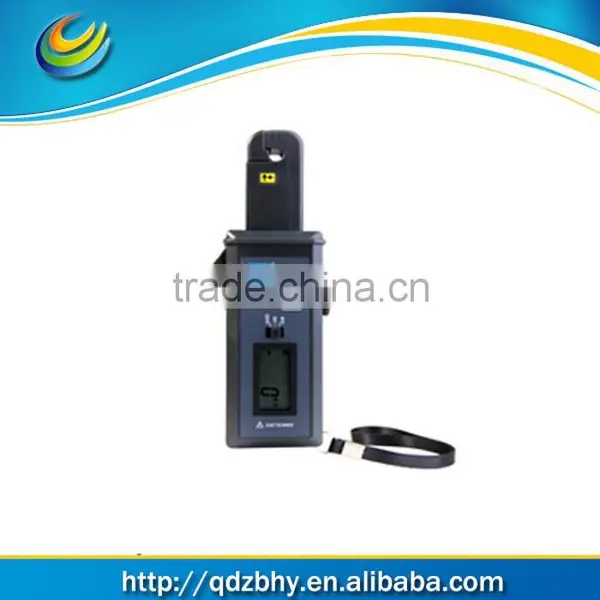

ETCR6000 AC/DC Clamp Leaker Meter AC: 45Hz-400Hz AC600V
US$ 162.76 - 162.76
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
ETCR
Model Number:
ETCR6000
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ETCR6100 High Accuracy Clamp Leaker Meter AC/DC:0.0A~1000AUS$ 142.82 - 142.82MOQ: 1 Set -
ETCR6300 High Sensitivity Leakage Clamp MetersUS$ 175.78 - 175.78MOQ: 1 Set
-
ETCR6500 Leakage Clamp MeterUS$ 175.78 - 175.78MOQ: 1 Set
-
ETCR6600 High Accuracy Clamp Leaker ,AC 0.0mA-600AUS$ 175.78 - 175.78MOQ: 1 Set
-
ETCR6800 High Accuracy Clamp LeakerUS$ 284.83 - 284.83MOQ: 1 Set
Place of Origin
China
Brand Name
ETCR
Model Number
ETCR6000
Operating Temperature
-10C-50C
Dimensions
168mm*65mm*34mm
Product Description
ETCR6000 AC/DC Clamp Leaker is specially designed for measurement of AC/DC current; by adopting up-to-date CT technology and digital integration technology. The small clamp is suitable for line densely places (electric power measurement system, the high speed rail system, car circuit overhaul, and so on), non-contact measurement, to ensure safe operation. It is a product with relatively small size, high accuracy and perfect function compared with similar leakers in the world. The leaker could be widely applied in those fields as electricity, communications, meteorology, railroad, oilfield, construction, measurement, scientific & research teaching institutes, industrial and mining establishments. it is an essential tool for electrician safety testing.
ETCR6000 AC/DC Clamp Leaker also named: DC Leakage Current Clamp Meter, Car DC Leakage Current Clamp Meter, AC/DC Clamp Leakage Current Tester. It has those functions as data holding and data storage. It obtains one RS232 interface, communication cable and software, through which historical data inquiry is available, for data reading, exporting and printing.
Technical Specifications
| Function | Measurement of AC/DC current, leakage current |
Power Supply |
6F22,9V |
Test Mode |
Clip-on CT, integral mode |
Clamp Size |
Φ7mm |
Measurement Range |
0mA-60.0A AC/DC |
Resolution |
1mA AC/DC |
Accuracy |
±2%rdg±5dgt (23C±5C, below 75%rh) |
Display Mode |
Four digits LCD display |
Dimension |
LWH: 168mm×65mm×34mm |
LCD Dimension |
35mm×21.5mm; display domain: 32mm×15mm |
Sampling Rate |
2 times/s |
Frequency |
AC: 45Hz-400Hz |
Polarity Indication |
DC current auto identified and display“—” |
Test Position |
Tested wire in the jaw center |
Range Shift |
Automatically |
Line Voltage |
AC600V |
RS232 Interface |
Data stored in the memory of the meter via RS232 upload to PC |
Com-Configure |
Baud rate:9600, data bit:8, stop bit:1 |
Data Memory |
99units, FULL blinks when the memory is full |
Reading Hold |
DH indicating the reading is hold |
Out of Range |
OL indicating the current is out of range |
Auto Power-off |
5 Minutes after power on, it will power off automatically to lower the power consumption |
Battery Voltage |
Indicating the battery voltage is lower than 7.2V.Then the battery have to be changed |
Weight |
180g (including the battery) |
Working Current |
10mA |
Consumption |
10mW |
Working Temperature and Humidity |
-10C-50C,below 80%rh |
Limit Temperature Error |
-10C-0C and 40C-50C, within 2%rdg |
Storage Temperature and Humidity |
-10C-60C,below 70%rh |
Insulating Strength |
AC2kV/rms (between the alloy of the clamp and the housing) |
Applicable safety rules |
IEC1010-1, IEC1010-2-032, Pollution level 2, CAT III (600V) |
