Home > Security & Protection > Fire Control > Fire Alarm & Smoke Detector > HD 800tvl Indoor Smoke Detector12V (IC-H-C SERIES)

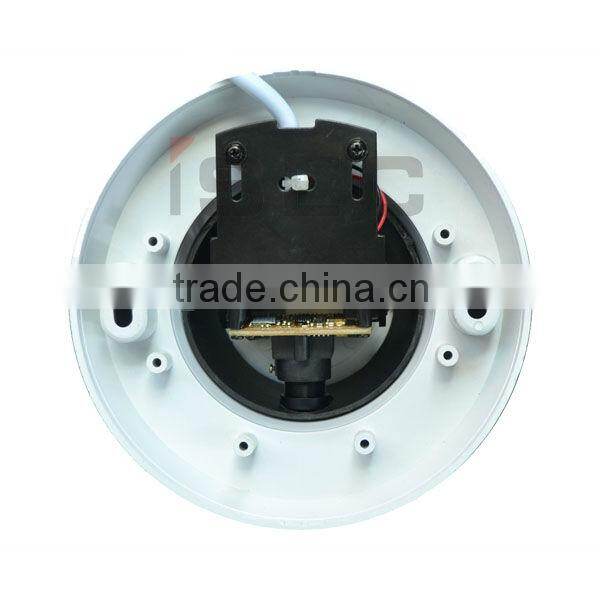

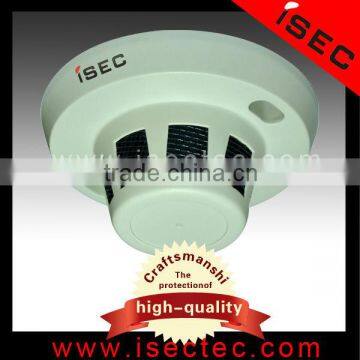

HD 800tvl Indoor Smoke Detector12V (IC-H-C SERIES)
US$ 13.9 - 41.4
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ISEC
Model Number:
IC-H-C SERIES
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
800tvl Indoor Hiding Small-sized Camera of Rest Room (IC-H-C SERIES)US$ 13.9 - 41.4MOQ: 1 Unit -
800tvl Indoor Hidden Camera in Toilet(IC-H-C SERIES)US$ 13.9 - 41.4MOQ: 1 Unit
-
800tvl Indoor Lastest Cheap Hidden Camera(IC-H-C SERIES)US$ 13.9 - 41.4MOQ: 1 Unit
-
CCTV 700TVL Effio-e CCD Pinhole Hidden Cameras for Toilet (IC-H-C SERIES)US$ 13.9 - 41.4MOQ: 1 Unit
-
Sale!!! CCTV 800TVL Effio-e CCD Pinhole Hidden Smoke Cameras for Homes (IC-H-C SERIES)US$ 13.9 - 41.4MOQ: 1 Unit
Place of Origin
Guangdong, China
Brand Name
ISEC
Model Number
IC-H-C SERIES
Specifications
Indoor Smoke And Fire Detector (IC-H-C SERIES)-2 Years Warranty (fcc/ce/rohs)
-100% cctv manufacturer
-Cctv
-Smoke Sensor
Indoor Smoke And Fire Detector (IC-H-C SERIES)
Features
1. Smoke Detector Hidden Camera
2. Sony Color CCD or Sharp Color CCD option
3. Sony Low Illumination CCD 0.1lux
4. Sharp ccd 0.5lux
5. High definition up to 800TVL(700/650/540/480/ 420TVL option)
6. 800TVL to 650TVL camera with built-in OSD, controlled by OSD cable

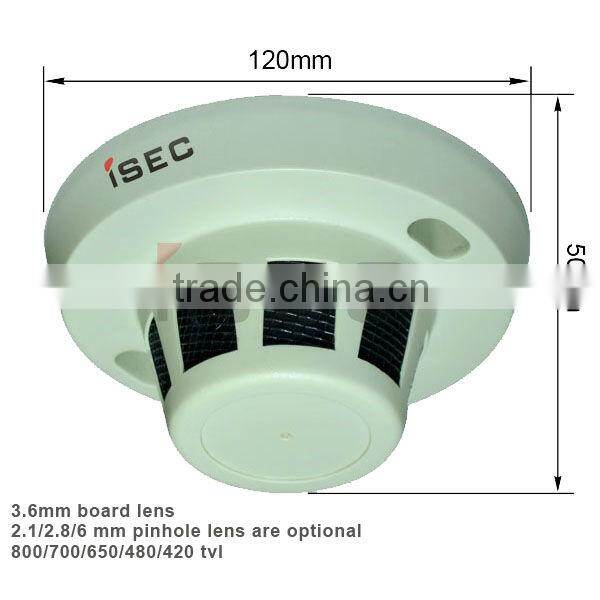

7. Standard lens: 3.6mm board lens 2.1/2.8/6 mm pinhole lens are optional
8. Without IR LED
9. Ø120x56mm
10. 0.25kg
Deatails
Name of products
Indoor Smoke And Fire Detector (IC-H-C SERIES)
Model number
IC-H-C series
| Model NO. | IC-H-CSR | IC-H-CHO | IC-H-CSO | IC-H-CSS | IC-H-CSF |
| VIDEO | |||||
| Image Device | 1/3" SONY 960H CCD | 1/3" SHARP 960H CCD | 1/3" SONY 960H CCD | 1/3" SONY 960H CCD | 1/3" SONY Super HAD II CCD |
| CCD model no. | ICX811AK(PAL) ICX810AK(NTSC) |
RJ2341(PAL) RJ2331(NTSC) |
ICX811AK(PAL) ICX810AK(NTSC) |
ICX811AK(PAL) ICX810AK(NTSC) |
ICX633BK(PAL) ICX632BK(NTSC) |
| DSP model no. | AVS03P | Nextchip 2090E | Nextchip 2090E | Effio-E CSD4140GG |
SONY CXD3142R |
| Horizontal Resolution | 800TVL | 700TVL | 420TVL | ||
| TV System | PAL/NTSC | ||||
| Total Pixels | PAL:1020(H)*596(V) , NTSC:1020H*508(V) | PAL:537(H)*597(V) NTSC:537(H)*505(V) | |||
| Effective Pixels | PAL:960(H)*582(V) , NTSC:976H*494(V) | PAL:500(H)*582(V) NTSC:510(H)*492(V) | |||
| Scanning System | 2:1 Interlace | ||||
| Synchronization | Internal | ||||
| Min. Illumination | 0.01Lux | 0.1Lux | 0.01Lux | ||
| S/N Ratio | More than 48dB(AGC OFF) | ||||
| Video Output | 1Vp-p,75ohm, BNC | ||||
| LENS | |||||
| Standard Lens | built-in 3.6mm board lens | ||||
| Option | 2.1/2.8/6 mm pinhole lens are optional | ||||
| Audio | optional | ||||
| OPERATIONAL | |||||
| Day & Night | Color / BW / EXT Auto-progressive Auto-general |
Auto / Color/ B/W / EXT | Auto / Color/ B/W / EXT1 / EXT2 | Auto | |
| Day to Night Delay | 0-255 | 1s-30s option | 0-255 | N/A | |
| White Balance | ATW, D75, D65, D50, CWF, U30, F/A | ATW / AWB / MANUAL / AWC-SET / ANTI.CRL | ATW / PUSH / USER1 / USER2:ANTI CR,MANUAL,PUSH LOCK | Auto | |
| Electronic Shutter Speed | PAL:1/50 ~ 1/100,000sec, NTSC:1/60 ~ 1/100,000sec | Auto | |||
| Mirror | ON/OFF | ON/OFF | ON/OFF | N/A | |
| AGC | 0-127 option | Low/Mid/High/OFF | 0-127 option | Auto | |
| Sharpness | 0-7 option | 0-31 option | 0-7 option | N/A | |
| Contrast | 0-99 option | 0-255 option | 0-255 option | N/A | |
| Backlight | Auto/Low/Mid/High | 0-10 option | OFF /BLC /HLC | N/A | |
| Neg.Image | N/A | ON/OFF | N/A | N/A | |
| Menu Language | English, Japanese, German, French, Russian, Portuguese, Spaish | English, Japanese, German, French, Russian, Portuguese, Spaish | English, Japanese, German, French, Russian, Portuguese, Spaish | N/A | |
| HLC | Low/Mid/High | 0-255 option | On/Off, 0-255 option | N/A | |
| Privacy Masking | ON/OFF (8 areas) | ON/OFF (8 areas) | ON/OFF (8 areas) | N/A | |
| Privacy Masking Color | OFF/ON(1-8 option) | OFF/ON(0-15 option) | OFF/ON(1-8 option) | N/A | |
| Sense-up | |||||
| D-WDR | N/A | OFF/ON(0-63 level adjustable) | OFF/ON(LOW, MID, HIGH adjustable) |
N/A | |
| Super WDR | 0-10 level adjustable | N/A | N/A | N/A | |
| Demist | Auto/Low/Mid/High | N/A | N/A | N/A | |
| Motion Detection | ON/OFF (4 areas) | ON/OFF (4 areas) | ON/OFF (4 areas) | N/A | |
| DNR | 3DNR:ON/OFF(0-3 option) | 2DNR:ON/OFF (0-15 option) | 2DNR:ON/OFF | N/A | |
| D-ZOOM | 1-4 level option | N/A | N/A | N/A | |
| ENVIRONMENTAL | |||||
| Operation Temperature | -10C ~ +50C RH95% MAX | ||||
| Storage Temperature | -20C ~ +60C RH95% MAX | ||||
| ELECTRICAL | |||||
| Input Voltage/Current | DC12V, 380mA | ||||
| Adapter Requirement | DC12V 1A | ||||
| MECHANICAL | |||||
| Case Color | Standard color: White | ||||
| Bracket | N/A | ||||
| Dimensions | Ø120x56mm | ||||
| Gross Weight | 0.25kg | ||||
