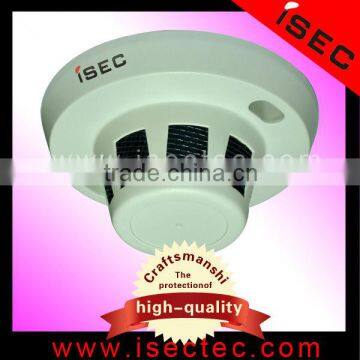

Sale!!! CCTV 800TVL Effio-e CCD Pinhole Hidden Smoke Cameras for Homes (IC-H-C SERIES)

Sale!!! CCTV 800TVL Effio-e CCD Pinhole Hidden Smoke Cameras for Homes (IC-H-C SERIES) thumbnail-1
Sale!!! CCTV 800TVL Effio-e CCD Pinhole Hidden Smoke Cameras for Homes (IC-H-C SERIES) photo-1
US$ 13.9 - 41.4 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ISEC
Model Number:
IC-H-C SERIES
Contact Supplier Request Quote Chat Now
Shenzhen Isec Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ISEC
Model Number IC-H-C SERIES

Specifications

Indoor Smoke And Fire Detector (IC-H-C SERIES)
-2 Years Warranty (fcc/ce/rohs)
-100% cctv manufacturer
-Cctv
-Smoke Sensor

Indoor Smoke And Fire Detector (IC-H-C SERIES)





Sale!!! CCTV 800TVL Effio-e CCD Pinhole Hidden smoke Cameras for homes (IC-H-C SERIES)



Features





1. Smoke Detector Hidden Camera
2. Sony Color CCD or Sharp Color CCD option

3. Sony Low Illumination CCD 0.1lux

4. Sharp ccd 0.5lux

5. High definition up to 800TVL(700/650/540/480/ 420TVL option)

6. 800TVL to 650TVL camera with built-in OSD, controlled by OSD cable

7. Standard lens:  3.6mm board lens     2.1/2.8/6 mm pinhole lens are optional
8. Without IR LED

9. Ø120x56mm
10. 0.25kg

 Sale!!! CCTV 800TVL Effio-e CCD Pinhole Hidden smoke Cameras for homes (IC-H-C SERIES)

Deatails

Name of products

Indoor Smoke And Fire Detector (IC-H-C SERIES)



Model number

IC-H-C series



Model NO. IC-H-CSR IC-H-CHO IC-H-CSO IC-H-CSS IC-H-CSF
VIDEO
Image Device 1/3" SONY 960H CCD 1/3" SHARP 960H CCD 1/3" SONY 960H CCD 1/3" SONY 960H CCD 1/3" SONY Super HAD II CCD
CCD model no. ICX811AK(PAL)
ICX810AK(NTSC)		 RJ2341(PAL)
RJ2331(NTSC)		 ICX811AK(PAL)
ICX810AK(NTSC)		 ICX811AK(PAL)
ICX810AK(NTSC)		 ICX633BK(PAL)
ICX632BK(NTSC)
DSP model no. AVS03P Nextchip 2090E Nextchip 2090E Effio-E
CSD4140GG		 SONY CXD3142R
Horizontal Resolution 800TVL 700TVL 420TVL
TV System PAL/NTSC
Total Pixels PAL:1020(H)*596(V) , NTSC:1020H*508(V) PAL:537(H)*597(V) NTSC:537(H)*505(V)
Effective Pixels PAL:960(H)*582(V) , NTSC:976H*494(V) PAL:500(H)*582(V) NTSC:510(H)*492(V)
Scanning System 2:1 Interlace
Synchronization Internal
Min. Illumination 0.01Lux 0.1Lux 0.01Lux
S/N Ratio More than 48dB(AGC OFF)
Video Output 1Vp-p,75ohm, BNC
LENS
Standard Lens built-in 3.6mm board lens
Option 2.1/2.8/6 mm pinhole lens are optional
Audio optional
OPERATIONAL
Day & Night Color / BW / EXT
Auto-progressive
Auto-general		 Auto / Color/ B/W / EXT Auto / Color/ B/W / EXT1 / EXT2 Auto
Day to Night Delay 0-255 1s-30s option 0-255 N/A
White Balance ATW, D75, D65, D50, CWF, U30, F/A ATW / AWB / MANUAL / AWC-SET / ANTI.CRL ATW / PUSH / USER1 / USER2:ANTI CR,MANUAL,PUSH LOCK Auto
Electronic Shutter Speed PAL:1/50 ~ 1/100,000sec, NTSC:1/60 ~ 1/100,000sec Auto
Mirror ON/OFF ON/OFF ON/OFF N/A
AGC 0-127 option Low/Mid/High/OFF 0-127 option Auto
Sharpness 0-7 option 0-31 option 0-7 option N/A
Contrast 0-99 option 0-255 option 0-255 option N/A
Backlight Auto/Low/Mid/High 0-10 option OFF /BLC /HLC N/A
Neg.Image N/A ON/OFF N/A N/A
Menu Language English, Japanese, German, French, Russian, Portuguese, Spaish English, Japanese, German, French, Russian, Portuguese, Spaish English, Japanese, German, French, Russian, Portuguese, Spaish N/A
HLC Low/Mid/High 0-255 option On/Off, 0-255 option N/A
Privacy Masking ON/OFF (8 areas) ON/OFF (8 areas) ON/OFF (8 areas) N/A
Privacy Masking Color OFF/ON(1-8 option) OFF/ON(0-15 option) OFF/ON(1-8 option) N/A
Sense-up
D-WDR N/A OFF/ON(0-63 level adjustable) OFF/ON(LOW, MID,
HIGH adjustable)		 N/A
Super WDR 0-10 level adjustable N/A N/A N/A
Demist Auto/Low/Mid/High N/A N/A N/A
Motion Detection ON/OFF (4 areas) ON/OFF (4 areas) ON/OFF (4 areas) N/A
DNR 3DNR:ON/OFF(0-3 option) 2DNR:ON/OFF (0-15 option) 2DNR:ON/OFF N/A
D-ZOOM 1-4 level option N/A N/A N/A
ENVIRONMENTAL
Operation Temperature -10C ~ +50C RH95% MAX
Storage Temperature    -20C ~ +60C RH95% MAX
ELECTRICAL
Input Voltage/Current DC12V, 380mA
Adapter Requirement DC12V 1A
MECHANICAL
Case Color Standard color: White
Bracket N/A
Dimensions Ø120x56mm
Gross Weight 0.25kg
