Netis Long Range Wireless Outdoor Access Point WF2301

Netis Long Range Wireless Outdoor Access Point WF2301 thumbnail-1
Netis Long Range Wireless Outdoor Access Point WF2301 photo-1
Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
netis
Model Number:
WF2301
Contact Supplier Request Quote Chat Now
Shenzhen Netcore Industrial Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name netis
Model Number WF2301

netis Long Range Wireless Outdoor Access Point WF2301

Product Description

The netis WF2301 is dedicated to district long-distance wireless network solutions. It’s compatible with 802.11b/g/n devices and provides the wireless transfer speed up to 150Mbps, offering a better performance on web surfing, emailing, and file sharing. It supports multi-wireless modes including AP, WDS, AP+WDS, Repeater, Client, to expand your wireless network easily. Moreover, the weatherproof design makes it suitable for various outdoor environments.



Specification

netis Long Range Wireless Outdoor Access Point WF2301
Wireless
Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Signal Rate Up to 150Mbps
Frequency Range 2.4-2.4835GHz
Transmit Power 20dBm(MAX)
Data Transfer Rates 802.11n:
40MHz  (150Mbps, 135Mbps, 120Mbps, 90Mbps, 60Mbps, 45Mbps, 30Mbps, 15Mbps)
20MHz  (72Mbps, 65Mbps, 57Mbps, 43Mbps, 28Mbps, 21Mbps, 14Mbps, 7Mbps) (Auto-Sense)
801.11g:
(54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)
802.11b:
(11Mbps, 9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)
Wireless Mode AP, WDS, AP+WDS, Repeater, Client, Multiple AP
Wireless Security                                       64/128-bit WEP,
WPA-PSK/WPA2-PSK (TKIP/AES)
SSID Broadcast Enable/Disable
WPS
Hardware
Standards IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX

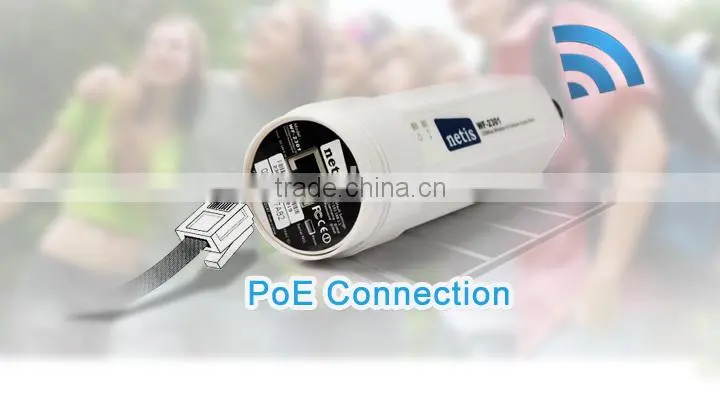

Interface 1 * 10/100M Auto MDI/MDIX RJ45 LAN port (PoE)
LED PWR, LINK
Button Reset
Antenna 1 * external 7dBi antenna (optional)
Power Supply DC 18V/700mA(Output)
Dimensions (H x D) 205 x 45 mm
Weight 156 g
Software
Security     IP Access Control, UPnP
LAN Management LAN IP Setup, DHCP Server
Port Forwarding UPnP
Others Static Routing, WOL, Firmware upgrade
Others
Certification             FCC, CE
Environment Operating Temperature: -10℃~70℃
Storage Temperature: -30℃~80℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Package 1 * WF2301
1 * Quick Installation Guide
1 * PoE Adapter




netis Long Range Wireless Outdoor Access Point WF2301netis Long Range Wireless Outdoor Access Point WF2301
