Netis 8 Ports EPON OLT Fiber Terminal

Shenzhen Netcore Industrial Ltd.
Netis 8 Ports EPON OLT Fiber Terminal thumbnail-1
Netis 8 Ports EPON OLT Fiber Terminal photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
netis
Model Number:
EP8208
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name netis
Model Number EP8208

netis 8 Ports EPON OLT Fiber Terminal

Product Description

The netis EPON OLT (Optical Line Terminal)EP8208 is an IEEE 802.3ah & CTC 2.1standards compliant productwith 1U chassis-based system. It provides 8 EPON ports in the system to support up to 512 ONUs. Together with netis ONUs,EP8208 completes the end-to-end FTTx with up to 1Gbps of bandwidth to residential and business customers. It is the ideal carrier class optical access platform for FTTx (FTTC, FTTB, FTTH).



Features

  • Complies with IEEE 802.3ah & CTC 2.1
  • 8* EPON ports, 4* uplink ports
  • Up to 1.25Gbps for upstream/ downstream speed
  • Each OLT port supports 64 ONUs
  • Maximum transfer distance up to 20Km
  • Networking protocol supported: TCP/IP, ICMP, ARP, OSPF, PIM, etc.
  • Complete Layer2/Layer3 features, supports Trunk protection/ Q-in-Q
  • Advanced QoS functions: IP ToS, IEEE 802.1p priority (SP/WRR/SP+WRR)
  • Intelligent Dynamic Bandwidth Allocation (DBA)
  • Provides IEEE 802.1Q VLAN
  • IGMP Snooping optimizes multicast applications
  • Secure Access via Access Control List (ACL)
  • Complies with Triple Churning Encryption/AES Encryption
  • Supports 802.1x supplicant
  • Supports upstream traffic classify and management through extended OAM
  • Advanced management methods: OAM remote management, Web-based GUI, Console/ Telnet Command Line Interface, SSH v1/v2, ONU firmware remote upgrade

Specification

netis 8 Ports EPON OLT Fiber Terminal
Hardware
Interface8 * EPON port,
4 * 10/100/1000Base-T and SFP combo uplink port
1 * NMI port
LEDRUN, ALM, PWR, SD(1-8 EPON, 1-4 Uplink), REG(1-8 EPON), NMI status
Power Supply                   100-240V AC/50-60Hz
Feature
Hardware                            Single Mode Fiber Cable
SC Fiber Connecter
Maximum Splits of ONU: 512
Upstream (ONU->OLT) Wavelength: 1310nm
Downstream (OLT->ONU) Wavelength: 1490nm
Reach: 20km for PX20/PX20+
SoftwareComply with IEEE 802.3-2005
Comply with CTC 2.1
Auto Discovery/Grant Allocation/Ranging/Report Handling
Alarm Report
Downstream Bandwidth Control by Policy
ONU Remote Management
Remote Diagnostic
Peer to Peer Management
Port Lock for Each ONU
Performance Statistic
Support ONU Firmware Remote Upgrade
Comply with Triple Churning Encryption/AES Encryption
Support Upstream Traffic Classify and Management through Extended OAM
Support IGMP v1/v2 Proxy/Snooping
Comply with Upstream Traffic Filter based on MAC DA/SA
Support NMI Port Configuration
Support Max Frame Length to 1536 Bytes
Support Layer2 Features
Secure Access via Access Control List (ACL)
MAC/LOID Authentication
Others
CertificationFCC, CE
Environment          Operating Temperature: 0℃~40℃(32°F~104°F)
Storage Temperature: -40℃~70℃(-40°F~158°F)
Operating Humidity: 5%~95% RH non-condensing
Storage Humidity: Less than 95% RH non-condensing
Package1 *EP8208
1 * Power Cord
2 * Rackmount Brackets and the Fittings

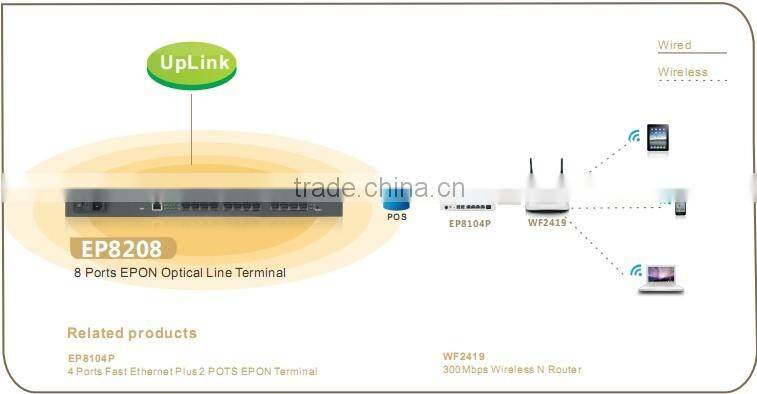

Application

netis 8 Ports EPON OLT Fiber Terminal
