Netis EPON ONU EP8104P
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
netis
Model Number:
EP8104P
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GP8501GP GPON Optical Networking UnitNegotiableMOQ: 1000 Pieces -
Netis Gigabit GPON TerminalNegotiableMOQ: 1000 Pieces
-
Netis Gigabit Optical Networking Unit With 1 Ethernet PortNegotiableMOQ: 1000 Pieces
-
Netis Gigabit EPON Terminal With 1 PON Port & 1 Ethernet PortNegotiableMOQ: 1000 Pieces
-
Netis EPON Terminal (Ethernet Passive Optical Network Terminal)NegotiableMOQ: 1000 Pieces
Place of Origin
China
Brand Name
netis
Model Number
EP8104P
netis EPON ONU EP8104P
Product Description
The netis EP8104P 4 ports Fast Ethernet and 2 FXS voice type EPON ONU is one of the most popular ONU's used in FTTH deployments till now. It has 4 Ethernet ports and 2 FXS ports. Most important is that you can start providing a phone access to your FTTx customers just merely installing this ONU at CPE premises, and connecting regular POTS phone to any of 2 FXS ports. Then ONU will serve as a VoIP client gateway.
Features
- Complies with IEEE 802.3-2005&CTC 2.1
- IEEE 802.3-2005 compliant EPON ONU device
- Up to 1.25Gbps for upstream/downstream speed
- Maximum transfer distance up to 20Km
- Automatic discovery and authorization, plug and play
- Support SIP or H248 voice protocol
- Powerful and strong voice POTS service delivery
- AES-128 encryption
- Customized Quality of Service for assured SLA
- IEEE 802.1p priority(SP/WRR/SP+WRR)
- Advanced Layer2 switching features, IGMP Snooping, IEEE 802.1q VLAN, Rate Limitation, MAC Address management
- Supports Dying Gasp function
- Supports Triple churning
- Remote management based on TR069 protocol and OAM, Local management through Web-based GUI
- 1 * SFF/SC PON port, 2 * RJ11 phone ports, 4 * 10/100Mbps auto-negotiation and auto-MDI/MDIX RJ45 LAN ports
Specification
| netis EPON ONU EP8104P | |
| Hardware | |
| Interface |
1 * SFF/SC PON port 4 * 10/100Mbps auto-negotiation and MDI/MDIX RJ45 LAN port 2 * RJ11 port |
| Data Rate |
Upstream 1.25Gbps Downstream 1.25Gbps |
| Distance | 0-20KM |
| Splitting Ratio | 1:32(20KM) 1:64(10KM) |
| Optical Power | -1~+4dBm |
| Receive Sensitive | -25.5dBm |
| LED | LAN4-LAN1LOS PON PWR |
| Button |
Power on/off Default |
| Power Adapter | External 12V2A |
| Power consumption | <20W (MAX) |
| Dimensions(L x W x H ) | 171(L)*112(W)*22(H)mm |
| Weight | 127g |
| Software | |
| Standard |
IEEE 802.3-2005 IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.1p, IEEE 802.1q |
| QoS |
Service Flow Classification based on MAC Address/VLAN/ IP Address /DSCP /L4 port, 802.3x flow control, Schedule rules Support SP/WRR/SP+WRR, Upstream Priority Label Support 802.1p User Priority, Rate Limit and Traffic shaping, Congestion Control Support Tail-Drop/WRED/RED |
| VLAN |
802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode |
| Advanced Features |
Authentication based on Loid and Password or base on MAC Upstream and Downstream FEC, Dynamic Bandwidth Allocation(DBA) , Optical power detection, Dying Gasp, Terminal Silent mechanism, Ethernet port loop testing |
| Security |
AES Encryption, Triple churning Illegal Frame/Illegal Multicast Filtering |
| Management |
Managed by Web and OAM, Specified the management IP/MAC, Reset to Factory default by Reset button or Web UI, Real-time statistics, Optical Diagnostic, System Log |
| IGMP |
IGMP v2/v3 IGMP Snooping |
| Voice |
SIP: Complies with IETF RFC 3261 standard H.248: Complies with YD/T 1292 standard SIP or H.248 * (* The standard can be switched through firmware upgrade.) |
| Others | |
| Environment |
Operating Temperature: 0℃~40℃(32°F~104°F) Storage Temperature: -40℃~70℃(-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Package |
1 * EP8104P 1 * 12V/2A Power Adapter 1 * Ethernet Cable 1 * Quick Installation Guide |

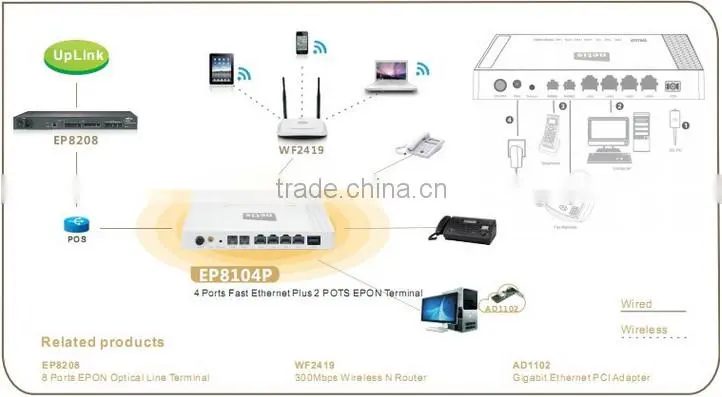

Application
