Netis Gigabit GPON Terminal

Netis Gigabit GPON Terminal thumbnail-1
Netis Gigabit GPON Terminal photo-1
Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Brand Name:
netis
Model Number:
GP8501GP
Contact Supplier Request Quote Chat Now
Shenzhen Netcore Industrial Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Brand Name netis
Model Number GP8501GP
Place of Origin Guangdong, China

netis Gigabit GPON Terminal

Product Description

The GP8501GP is an indoor optical network terminal designed for home users and small office and home office (SOHO) users, providing one GPON port, one RJ11 phone port and one GE/FE auto-negotiation and auto-MDI/MDIX Ethernet port. By using the Gigabit-capable Passive Optical Network (GPON) technology, the GP8501GP provides a high-speed data channel through a single optical fiber with an upstream rate of 1.25Gbps and a downstream rate of 2.5Gbps. In this way, you can enjoy the high-speed data service, quality voice service, superior video service.



Features

  • Complies with ITU-T G.984.2 CLASS B+
  • Up to 1.25Gbps for upstream and 2.5Gbps for downstream speed
  • Maximum transfer distance up to 20Km
  • Support SIP and H248 voice protocol
  • Multiple traffic mapping modes supported
  • IGMP V2&V3 Snooping, IGMP proxy
  • Support VLAN filtering & VLAN transparent transmission, VLAN N:1 aggregation and VLAN 1:1 translation
  • Local management through Web-based GUI and efficient remote management function
  • 1* SC/APC GPON port, 1* RJ11 phone port, 1* 10/100/1000Mbps auto-negotiation and auto-MDI/MDIX RJ45 LAN port

Specification

netis Gigabit GPON Terminal
Hardware
Interface 1* SC/APC GPON port
1* RJ11 Phone port
1* 10/100/1000Mbps auto-negotiation and MDI/MDIX RJ45 LAN port
Data Rate Upstream 1.25Gbps
Downstream 2.5Gbps
Distance 0-20KM
Center Wavelength Tx: 1310 nm
Rx: 1490 nm
Extinction Ratio > 10 dB
Optical Power Tx optical power: 0.5~5.0dBm
Maximum overload optical power: -8dBm
Receive Sensitive -27dBm
LED PWR, RUN, LOS, PON, LAN, PHONE
Button Power ON/OFF, Default
Power Adapter DC 12V/1A
Power consumption <12W (MAX)
Dimensions(L x W x H ) 145 x 90 x 28 mm
Weight 139g
Software
Standard ITU-T G.984.2 CLASS B+ IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T,  IEEE 802.1p, IEEE 802.1q
GPON GEM encapsulation mode
8 T-CONTs with up to 32 GEM ports
GEM port to T-CONT mapping
Multiple traffic mapping modes:
    –Mapping from IPToS to GEM port
    –Mapping from Ethernet port+VLAN+PRI to GEM port
    –Mapping from Ethernet port+PRI to GEM port
    –Mapping from Ethernet port+VLAN to GEM port
    –Mapping from VLAN+PRI to GEM port
    –Mapping from Ethernet port to GEM port
    –Mapping from PRI to GEM port
    –Mapping from VLAN to GEM port Dynamic Bandwidth Assignment (DBA)
Dynamic Bandwidth Assignment (DBA)
Forward error correction (FEC) function in the upstream and downstream directions
Embedded OAM, physical layer OAM (PLOAM), and OMCI
128-bit advanced encryption standard (AES) in the downstream direction
Authentication modes of SN, password, and SN+password
Deactivation/Activation and re-register of the ONT
Loopback test based on the GEM port
Multicast IGMP V2&V3 Snooping
IGMP proxy
Bridge WAN multicast
Up to 255 multicast groups
VLAN transforming of the upstream multicast protocol packet
Separate GEM ports for the downstream multicast service streams and the IGMP signaling packets
Transformation, transparent transmission, and removal of the downstream multicast VLAN
Filtering downstream multicast packets
Multicast filtering and forwarding based on MAC address
Authentication based on the GEM port
Fast leave
Ethernet              Bridge Mode
Setting to 10/100/1000 Mbit/s manually
Setting to half duplex or full duplex mode manually
Upstream and downstream rate limit based on the Ethernet port with a granularity of 64kbit/s
PAUSE traffic control (IEEE 802.3 Annex 31B)
Ethernet frame of up to 2000 bytes
VLAN filtering and VLAN transparent transmission.
VLAN N:1 aggregation and VLAN 1:1 translation.
IEEE 802.1p Priority Queue
Voice SIP and H.248 *
(* After the standard switched, you should save the settings and reset the product, then it will be take effect.)
Maintenance Optical power monitoring.
Local service configuration, query, and software upgrade on the Web page
Remote management using standard compliant OMCI interface as defined by ITU-T G.988
Query of the information about the ONT optical transceiver
Reporting the Dying Gasp alarm when the ONT is powered off
OMCI OMCI configuration management (including the GEM port, T-CONT, CAR, and VLAN configurations)
OMCI query management (including the device information and Ethernet port status)
OMCI alarming and alarm synchronization
OMCI performance statistics
Security MAC address filtering
Others
Environment           Operating Temperature: 0℃~40℃(32℉~104℉)
Storage Temperature: -40℃~70℃(-40℉~158℉)
Operating Humidity: 5%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
Package 1 * GP8501GP
1* 12V/1A Power Adapter
1 * Ethernet Cable
1 * RJ11 Phone Cable
1 * Quick Installation Guide

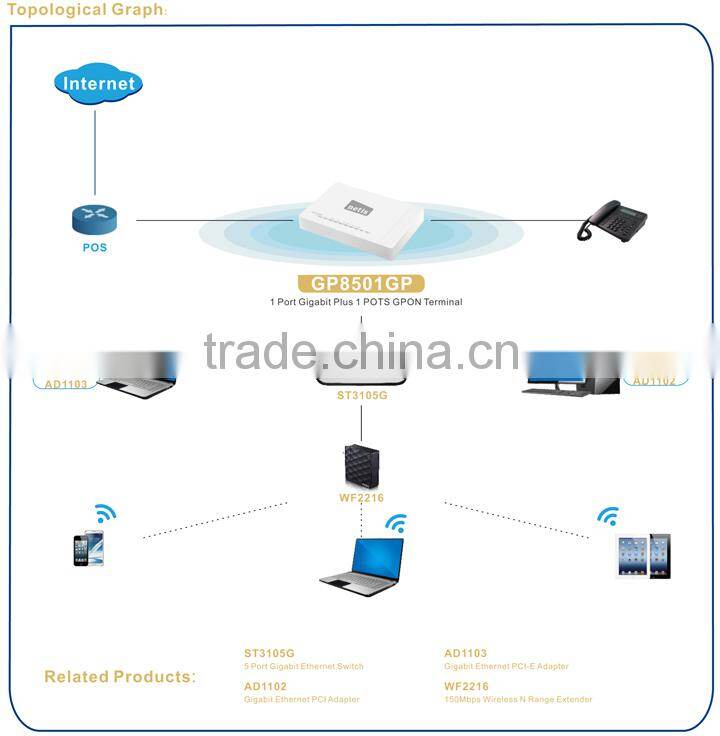

Application

netis Gigabit GPON Terminal
