Netis GPON Terminal, Gigabit Passive Optical Network Terminal
Negotiable
MOQ: 1000 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
netis
Model Number:
GP8502P
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Netis FTTH ONU EPON TerminalNegotiableMOQ: 1000 Pieces -
Netis EPON ONU EP8104PNegotiableMOQ: 1000 Pieces
-
GP8501GP GPON Optical Networking UnitNegotiableMOQ: 1000 Pieces
-
Netis Gigabit GPON TerminalNegotiableMOQ: 1000 Pieces
-
Netis Gigabit Optical Networking Unit With 1 Ethernet PortNegotiableMOQ: 1000 Pieces
Place of Origin
Guangdong, China
Brand Name
netis
Model Number
GP8502P
netis GPON Terminal, Gigabit Passive Optical Network Terminal
Product Description
The GP8502P is an indoor optical network terminal designed for home users and small office and home office (SOHO) users, providing oneGPON port, one RJ11 phone portandtwoauto-negotiation& auto-MDI/MDIX Fast Ethernet ports. By using the Gigabit-capable Passive Optical Network (GPON) technology, the GP8502P provides a high-speed data channel through a single optical fiber with an upstream rate of 1.25Gbps and a downstream rate of 2.5Gbps. In this way, you can enjoy the high-speed dataservice, quality voice service, superior video service.
Features
- Complies with ITU-T G.984.2 CLASS B+
- Up to 1.25Gbpsfor upstream and 2.5Gbps for downstream speed
- Maximum transfer distance up to 20Km
- Supports SIP and H.248 voice protocol
- Multiple traffic mapping modes supported
- IGMP V2&V3 Snooping, IGMP proxy
- Supports VLAN filtering & VLAN transparent transmission, VLAN N:1 aggregation and VLAN 1:1 translation
- Local management through Web-based GUI and efficient remote management function
- 1* SC/APCGPON port, 1* RJ11 phone port, 2* 10/100Mbps auto-negotiation and auto-MDI/MDIX RJ45 LAN port
Specification
| netis GPON Terminal, Gigabit Passive Optical Network Terminal | ||
| Hardware | ||
| Interface |
1* SC/APC GPON port 1* RJ11 Phone port 2* 10/100Mbps Auto-negotiation and MDI/MDIX RJ45 LAN port |
|
| Data Rate |
|
|
| Distance | 0-20KM | |
| Center Wavelength |
Tx: 1310 nm Rx: 1490 nm |
|
| Extinction Ratio | > 10 dB | |
| Optical Power |
Tx optical power: 0.5~5.0dBm Maximum overload optical power: -8 dBm |
|
| Receive Sensitive | -27dBm | |
| LED | PWR,LOS,PON,LAN1, LAN2, PHONE | |
| Button | Power ON/OFF, Default | |
| Power Adapter | DC 12V/1A | |
| Power consumption | <12W (MAX) | |
| Dimensions(L x W x H ) | 145x90 x28 mm | |
| Software | |
| Standard | ITU-T G.984.2 CLASS B+ IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.1p, IEEE 802.1q |
| GPON |
GEM encapsulation mode
8 T-CONTs with up to 32 GEM ports
GEM port to T-CONT mapping
Multiple traffic mapping modes:
–Mapping from VLAN to GEM port
–Mapping from PRI to GEM port
–Mapping from Ethernet port to GEM port –Mapping from VLAN+PRI to GEM port –Mapping from Ethernet port+VLAN to GEM port –Mapping from Ethernet port+PRI to GEM port –Mapping from Ethernet port+VLAN+PRI to GEM port –Mapping from IPToS to GEM port Dynamic Bandwidth Assignment (DBA)
Forward error correction (FEC) function in the upstream and downstream directions
Embedded OAM, physical layer OAM (PLOAM), and OMCI
128-bit advanced encryption standard (AES) in the downstream direction
Authentication modes of SN, password, and SN+password
Deactivation/Activation and re-register of the ONT
Loopback test based on the GEM port |
| Multicast |
IGMP V2&V3 Snooping
IGMP proxy
Bridge WAN multicast
Up to 255 multicast groups
VLAN transforming of the upstream multicast protocol packet
Separate GEM ports for the downstream multicast service streams and the IGMP signaling packets
Transformation, transparent transmission, and removal of the downstream multicast VLAN
Filtering downstream multicast packets
Multicast filtering and forwarding based on MAC address
Authentication based on the GEM port
Fast leave
|
| Ethernet |
Bridge Mode Setting to 10/100Mbit/s manually Setting to half duplex or full duplex mode manually Upstream and downstream rate limit based on the Ethernet port with a granularity of 64kbit/s PAUSE traffic control (IEEE 802.3 Annex 31B) Ethernet frame of up to 2000 bytes VLAN filtering and VLAN transparent transmission. VLAN N:1 aggregation and VLAN 1:1 translation. IEEE 802.1p Priority Queue |
| Voice |
SIP and H.248 * (* After the standard switched, you should save the settings and reset the product, then it will take effect.) |
| Maintenance |
Optical power monitoring. Local service configuration, query, and software upgrade on the Web page Remote management using standard compliant OMCIinterface as defined byITU-T G.988 Query of the information about the ONT optical transceiver Reporting the Dying Gasp alarm when the ONT is powered off |
| OMCI |
OMCI configuration management (including the GEM port, T-CONT, CAR, and VLANconfigurations) OMCI query management (including the device information and Ethernet port status) OMCI alarming and alarm synchronization OMCI performance statistics |
| Security | MAC address filtering |
| Others | |
| Environment |
Operating Temperature: 0℃~40℃(32℉~104℉) Storage Temperature: -40℃~70℃(-40℉~158℉) Operating Humidity: 5%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
| Package |
1 * GP8502P 1* 12V/1A Power Adapter 1 * Ethernet Cable 1 * RJ11 Phone Cable 1 * Quick Installation Guide |

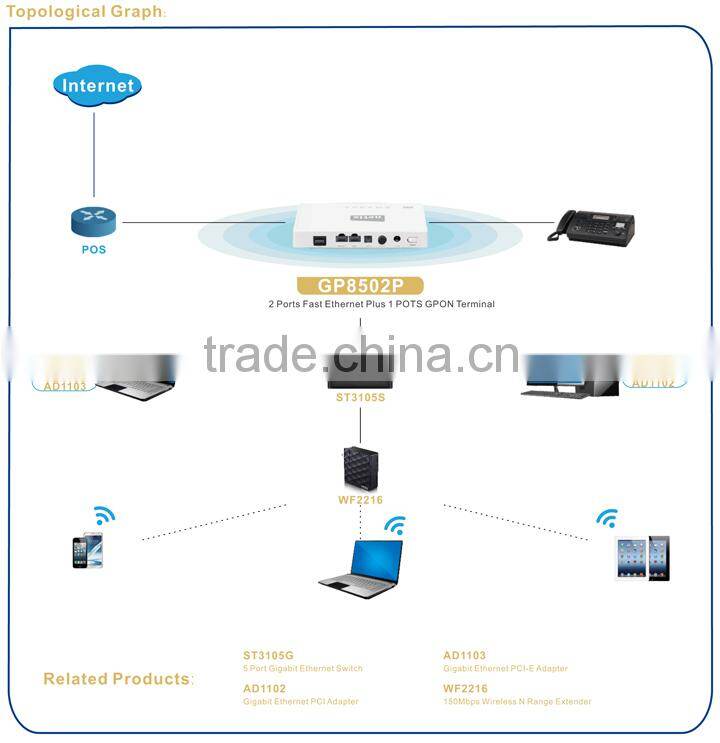

Application
